S33594 - Square D Handheld Test Kit for PowerPact P/R and MasterPact NT/NW Circuit Breakers

S33594

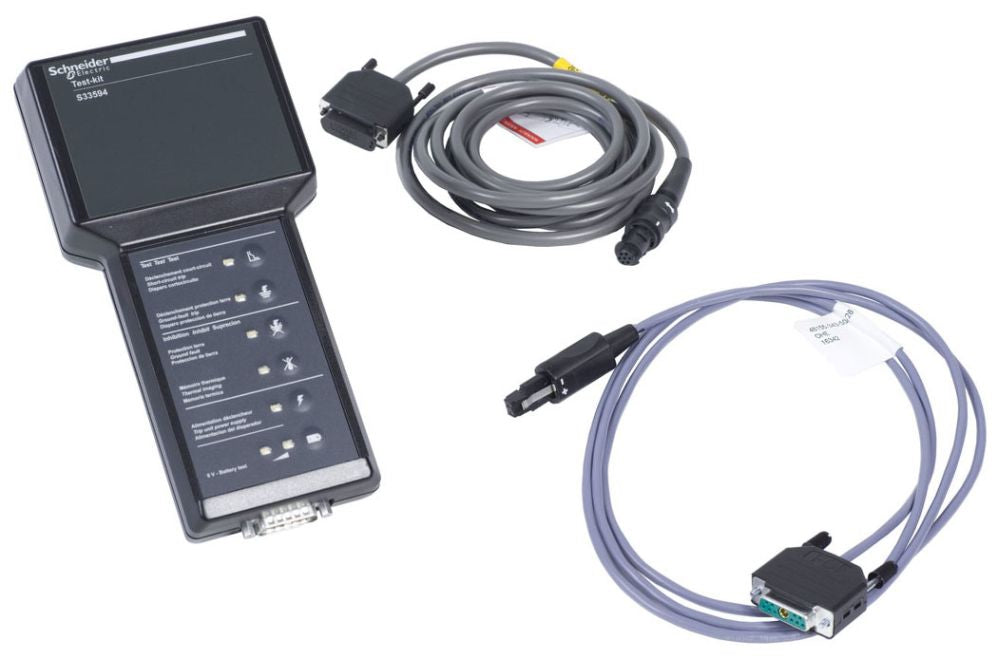

S33594 is a handheld test kit designed for testing trip units in Square D PowerPact P and R frames, as well as MasterPact NT and NW circuit breakers.

This test kit enables verification of trip unit operation, mechanical operation of the circuit breaker, and continuity between the tripping coil and related components. It supports MicroLogic trip units and includes features such as ground-fault trip test inhibition for primary injection testing in Micrologic types A, P, and H. The kit is compatible with PowerPact P/R and MasterPact NT/NW frames, providing reliable testing capabilities for these breaker types.

Key Specifications
• Compatible with PowerPact P and R frames
• Compatible with MasterPact NT and NW frames
• Supports MicroLogic trip units
• Handheld test kit type
• Enables trip unit operation verification
• Tests mechanical operation of circuit breaker
• Checks continuity of tripping coil
• Inhibits ground-fault trip for primary injection testing
• Length approximately 8.2 ft (2.5 m)
• Width approximately 4.44 in (112.78 mm)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: S33594
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Parts & Accessories
• Section : Test Kits
• Family : Micrologic
• Type : S

Product Data

• UPC : 785901453871
• GTIN : 00785901453871
• Dimensions : 8.48 in (215.39 mm) x 4.44 in (112.78 mm) x 1.49 in (37.85 mm) (Height x Width x Depth)
• Weight : 1.89
