S29386 - Square D PowerPacT Standard Circuit Breaker Shunt Trip, 110-130V AC, 10 VA, for H/J/L Frame, Screw Mount, UL/CSA Certified

S29386

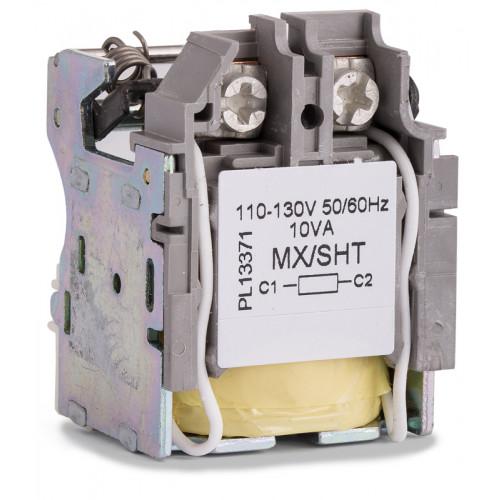

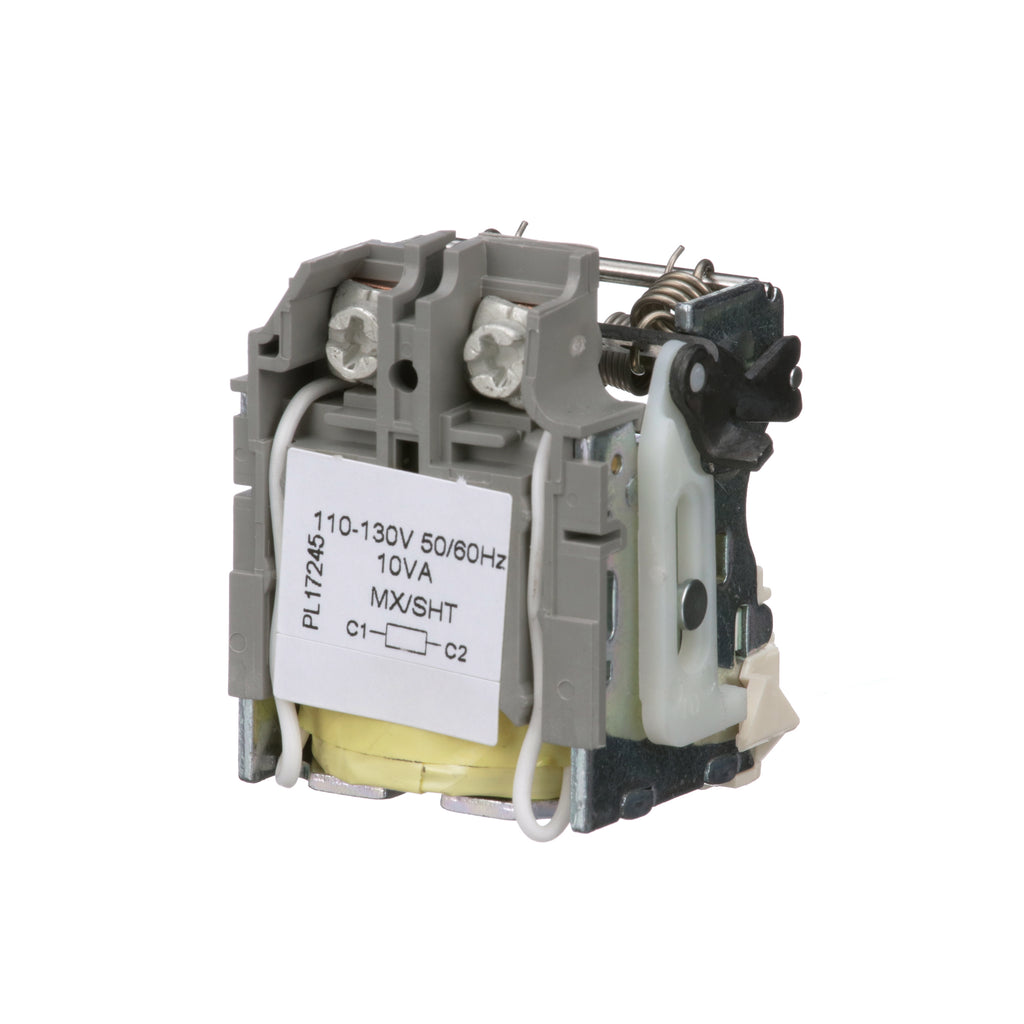

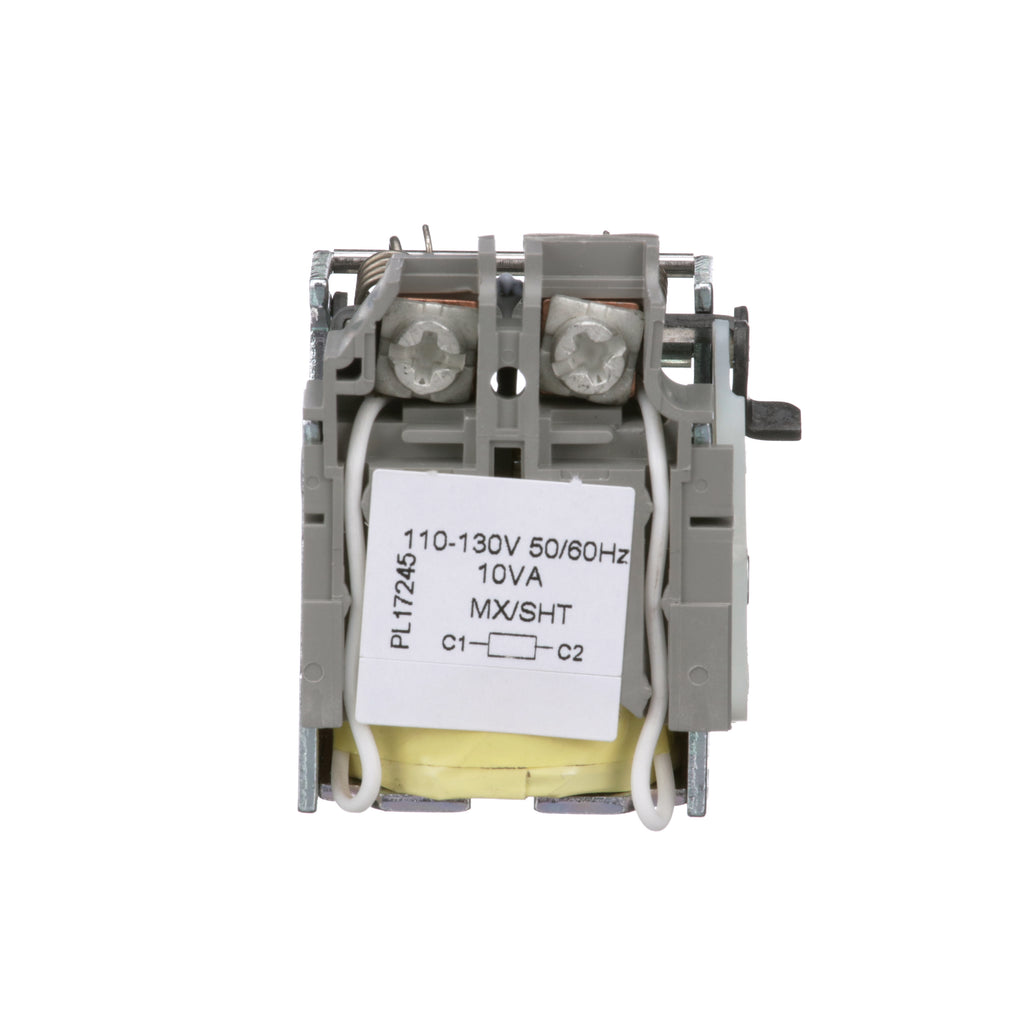

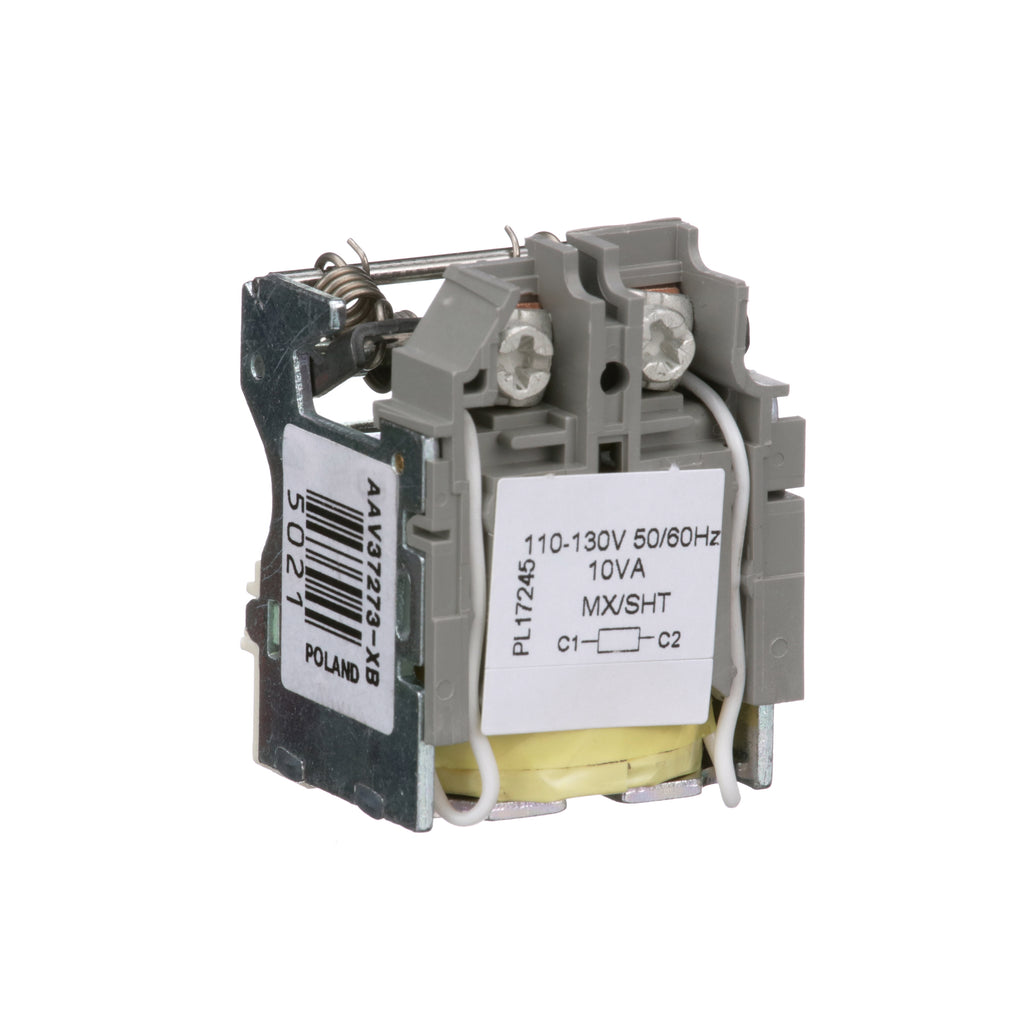

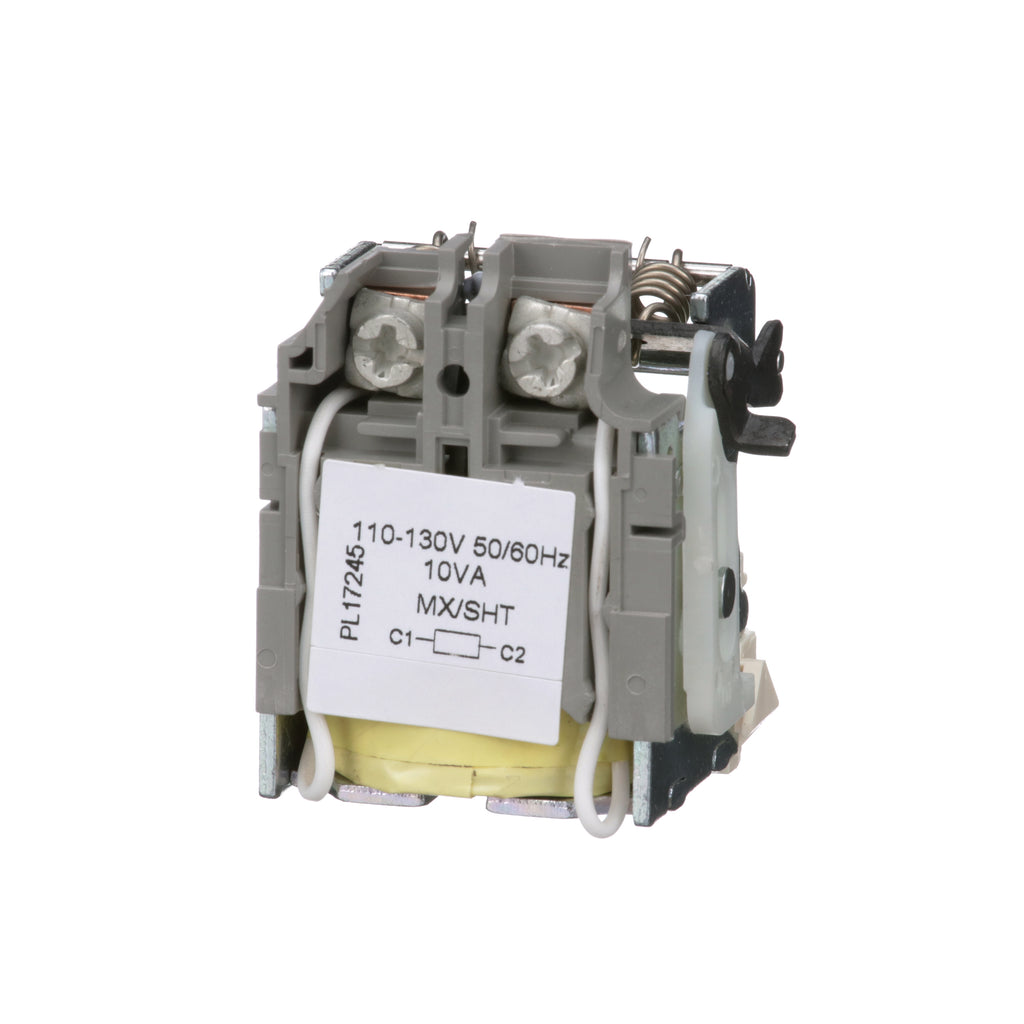

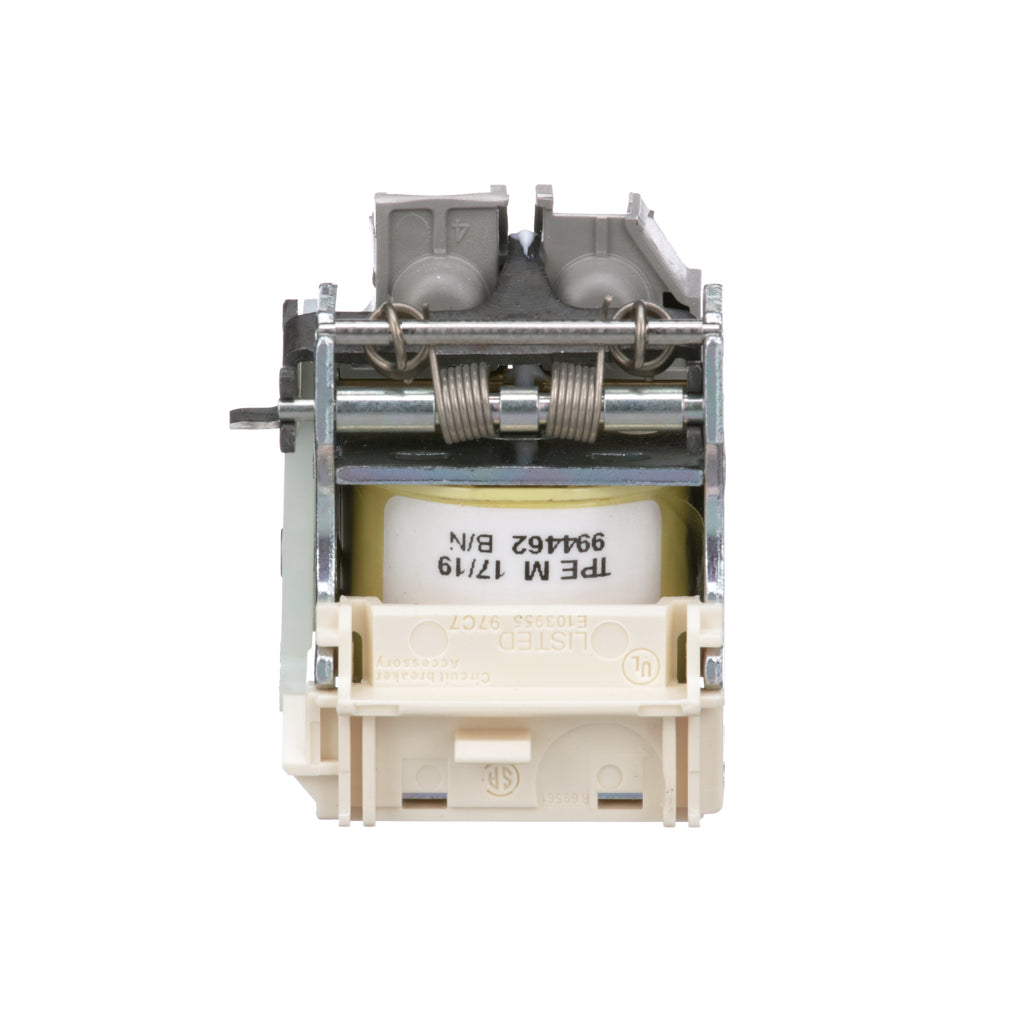

S29386 is a Square D PowerPacT standard circuit breaker shunt trip accessory designed for reliable remote tripping of compatible breakers.

This shunt trip is engineered for use with Square D PowerPacT H, J, and L frame circuit breakers, providing enhanced protection by allowing the breaker to be tripped remotely via an external control signal. It features a screw terminal connection, accommodates 18 to 14 AWG copper wire, and is designed for easy integration into existing electrical systems. The unit is compliant with UL and CSA standards, ensuring safety and reliability in commercial and industrial applications.

Key Specifications
• Part Number: S29386
• Manufacturer: Square D
• Type: Shunt Trip (accessory)
• Voltage Rating: 110–130V AC
• Power Rating: 10 VA
• Series/Frame: PowerPacT H, J, L
• Mounting Type: Screw terminal
• Wire Size: 18–14 AWG copper
• Certifications: UL, CSA
• Tightening Torque: 12.4 lbf.in (1.4 N.m)
• Package Quantity: 1
• Country of Origin: US
• Environmental: RoHS compliant, Green Premium

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: S29386
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Shunt Trip
• Family : Powerpact
• Type : S
• Voltage : 100/130VAC
• Control Voltage Minimum : 110
• Compatible Frames : DG, DJ, DL, HD, HG, HJ, HL, HR, JD, JG, JJ, JL, JR, LD, LG, LJ, LL, LR
• Control Voltate Maximum : 130

Product Data

• UPC : 785901712282
• GTIN : 00785901712282
• Country of Origin : United States
• Dimensions : 1.72 in (43.69 mm) x 1.28 in (32.51 mm) x 1.24 in (31.50 mm) (Height x Width x Depth)
• Weight : 0.29 lb
• Certification : CSA
