Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description

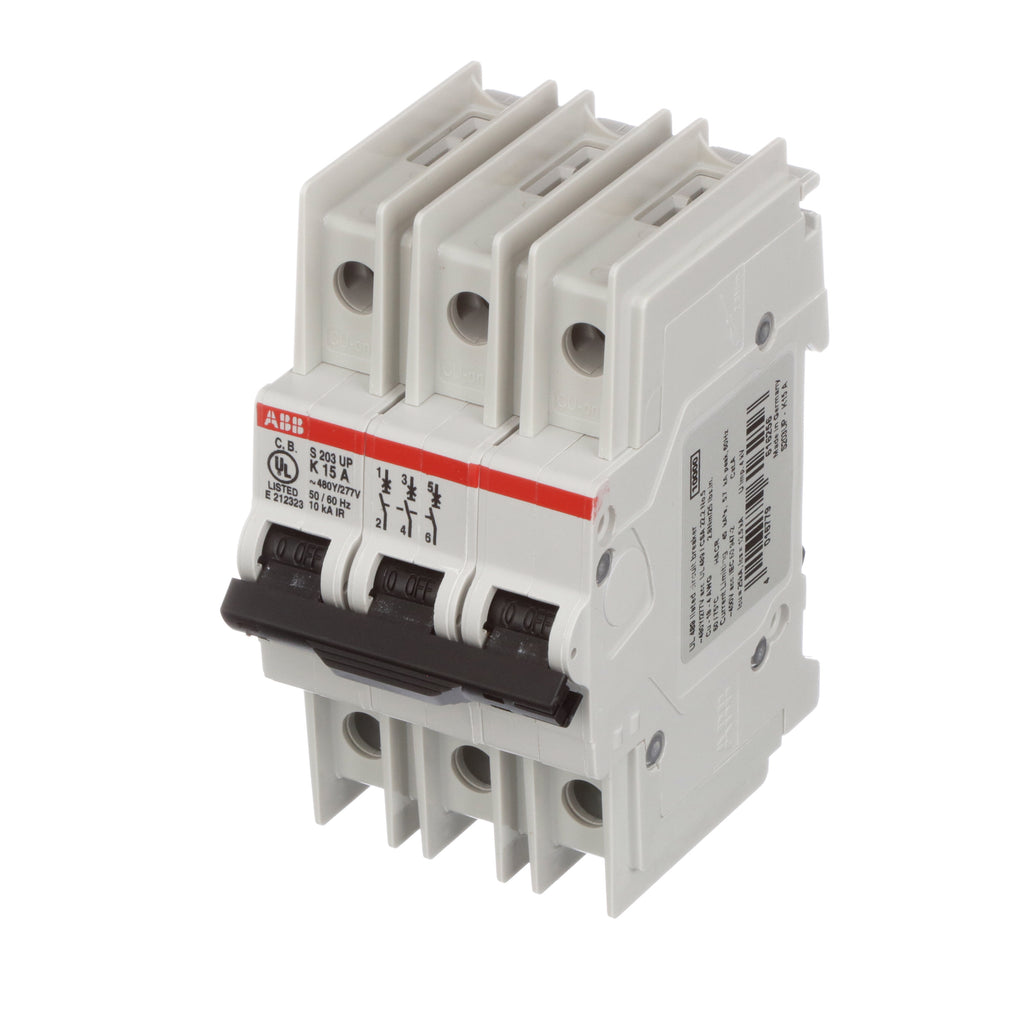

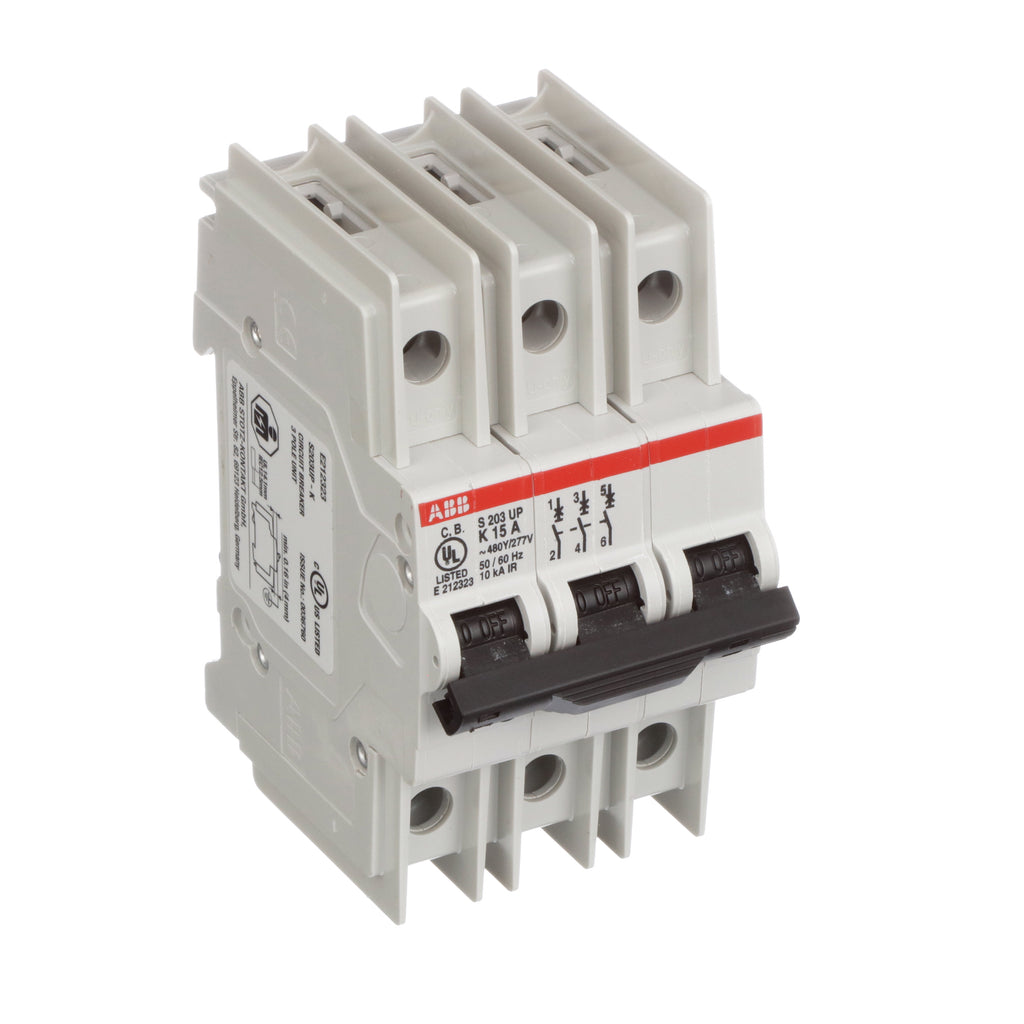

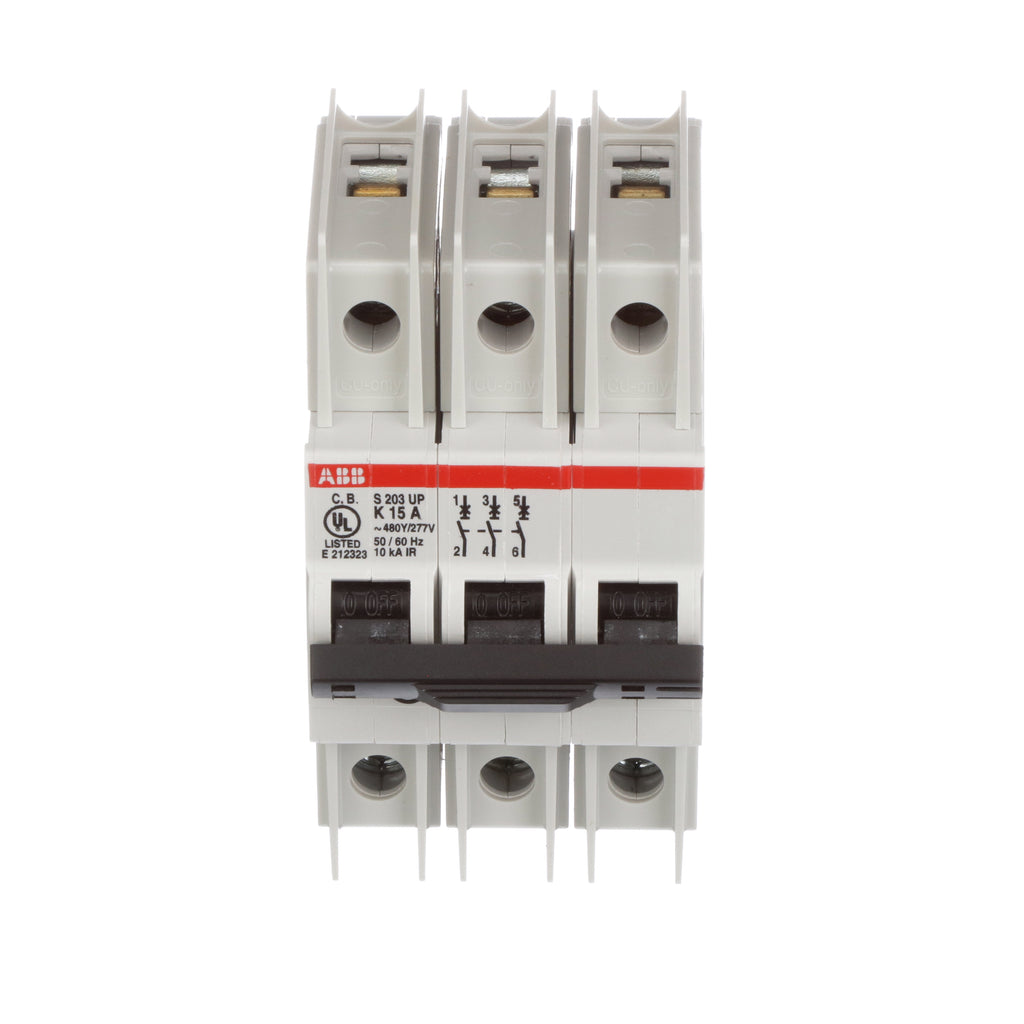

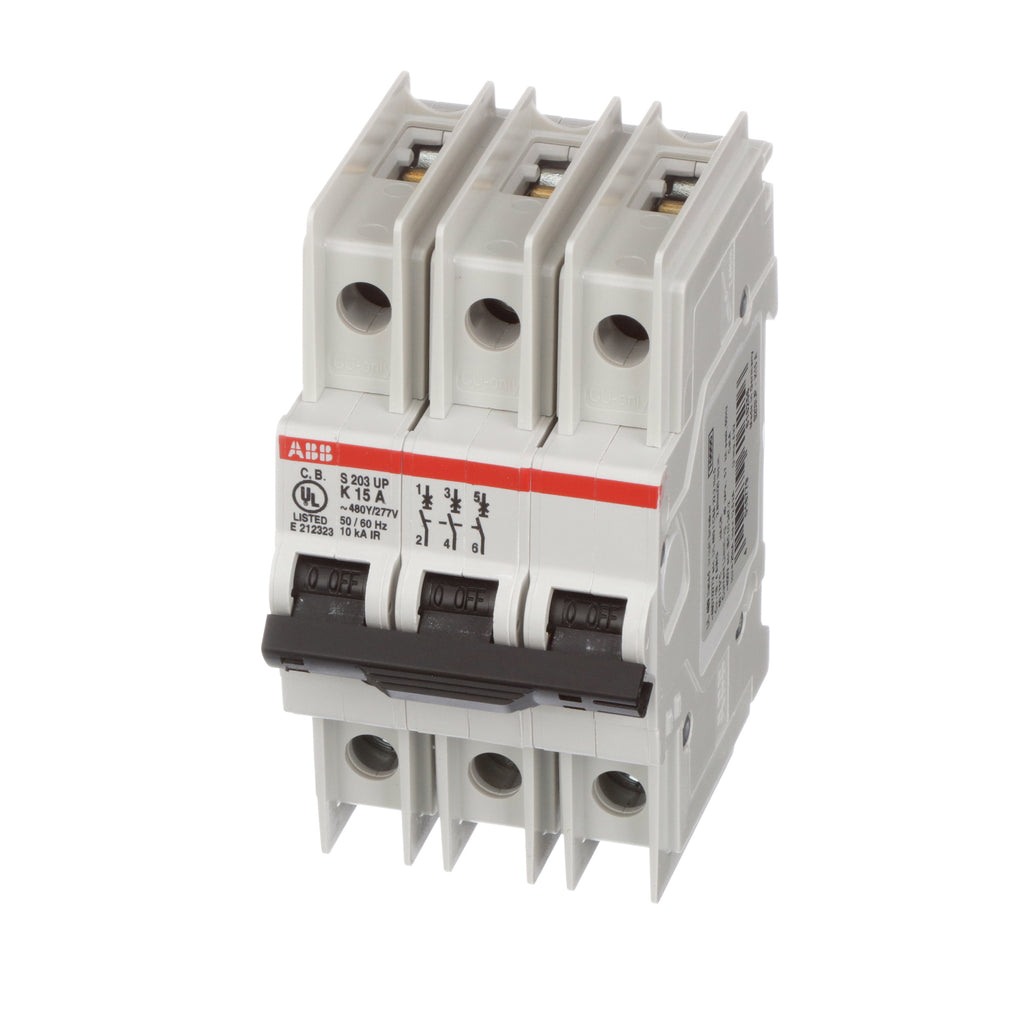

S203UP-K15
S203UP-K15 is a 3 pole thermal magnetic circuit breaker from ABB's S200 UP Series designed for reliable branch circuit protection. The S203UP-K15 features a 15 ampere current rating, 480Y/277 volt AC voltage rating, and a K trip curve for precise trip characteristics. It is UL 489 and CSA C22.2 certified, with a 10kA interrupting rating and bolt-on mounting for secure installation.
- Key Specifications
- Amperage: 15 Amps
- Voltage: 480Y/277 VAC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 10kAIC at 240V
- Series/Frame: S200 UP Series
- Trip Unit: Thermal Magnetic with K Curve
- Certifications: UL 489, CSA C22.2
- Suitable for Reverse Feed
Specifications
- Part Number: S203UP-K15
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : S 200 UP Series
- Type : S203UP-K
- Voltage : 480
- Amperage : 15
- Phase : 3
- Poles : 3
- AIC rating : 10kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- Weight : 1
