Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description

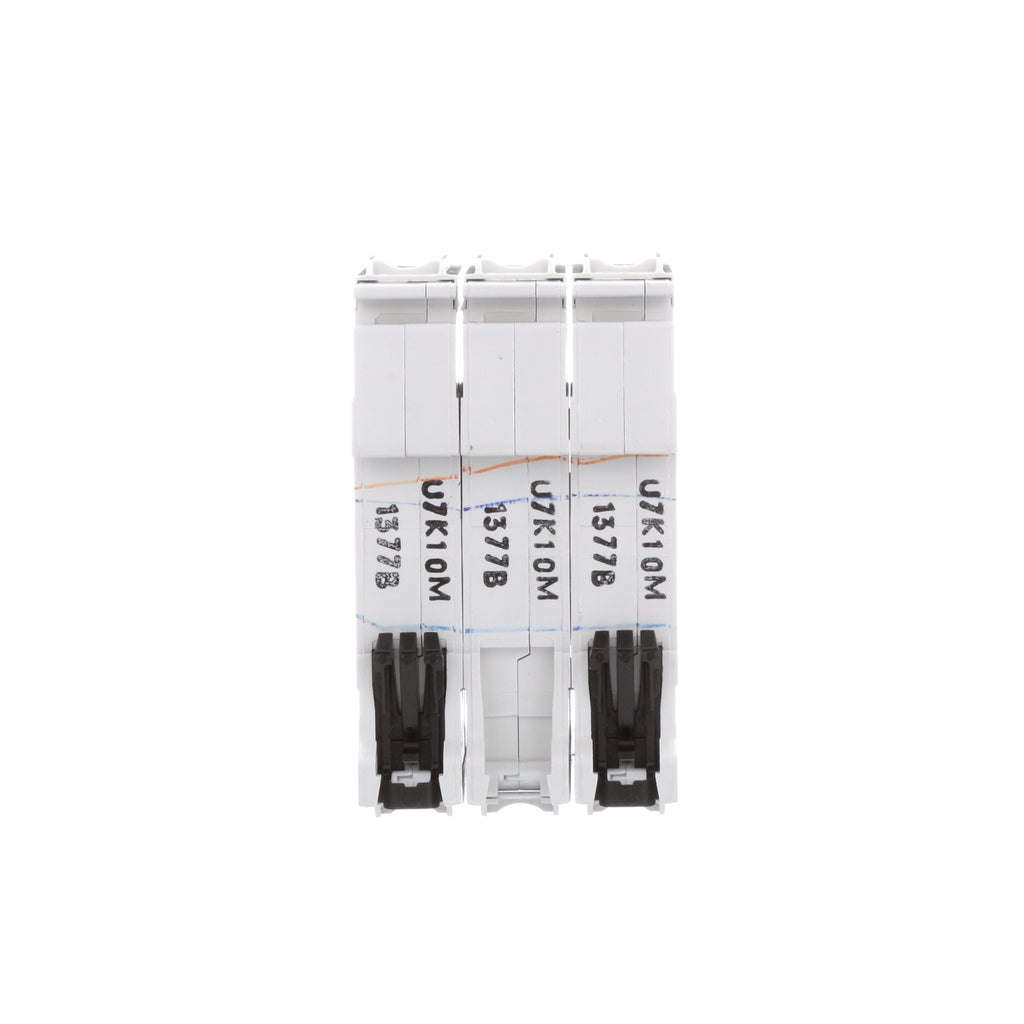

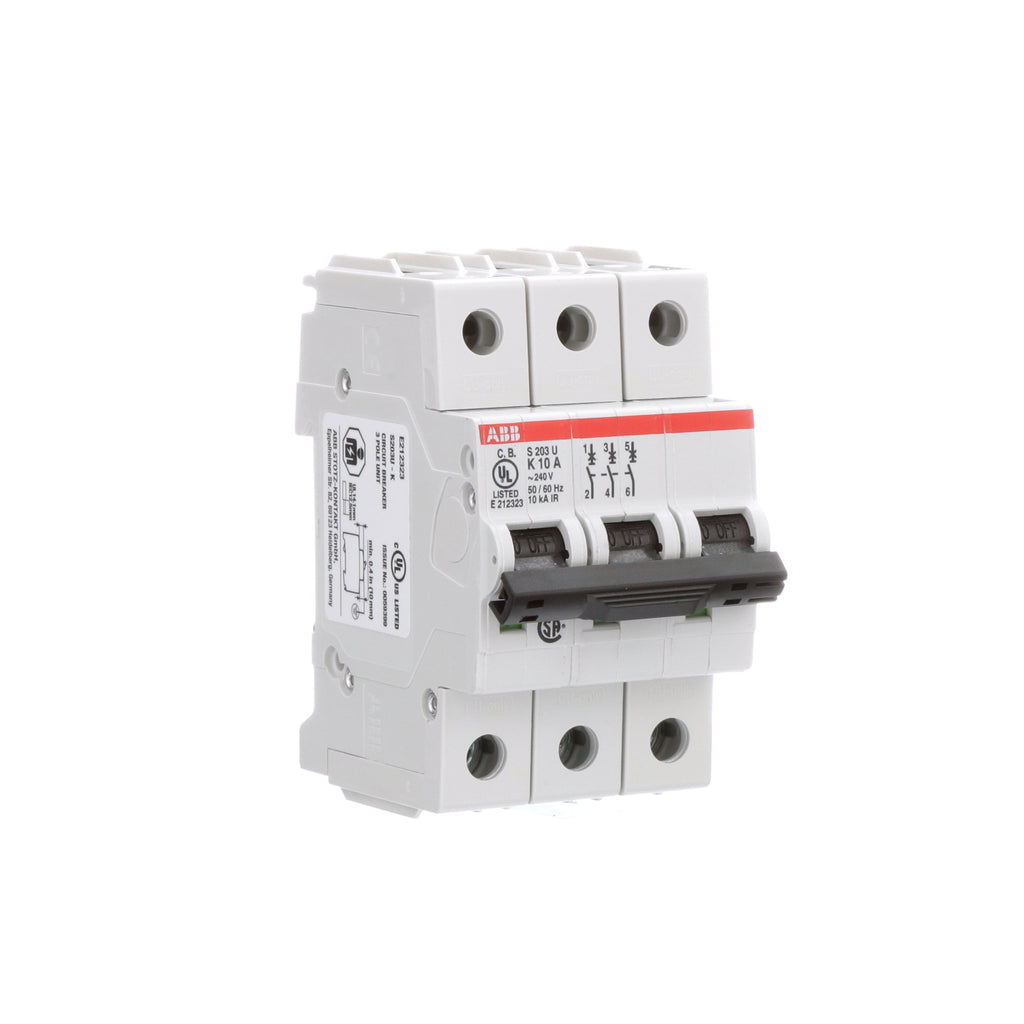

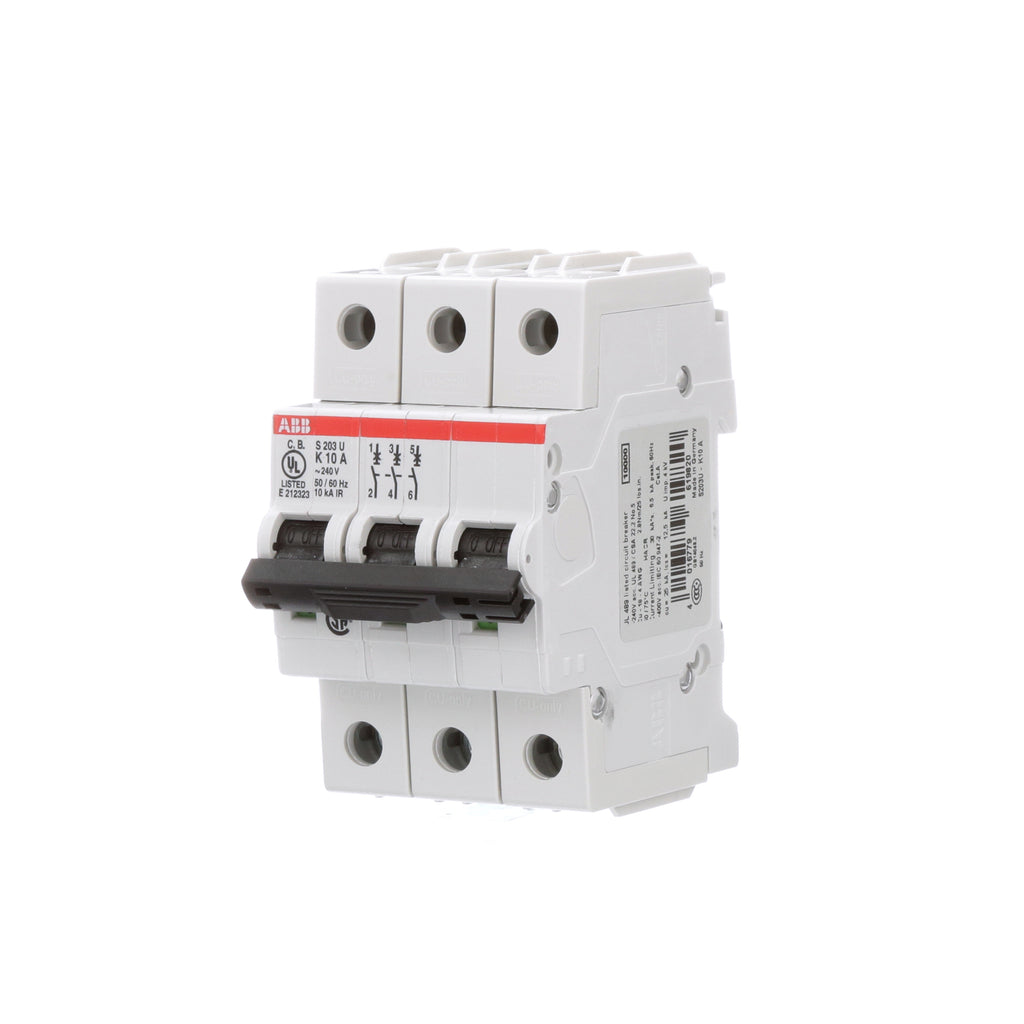

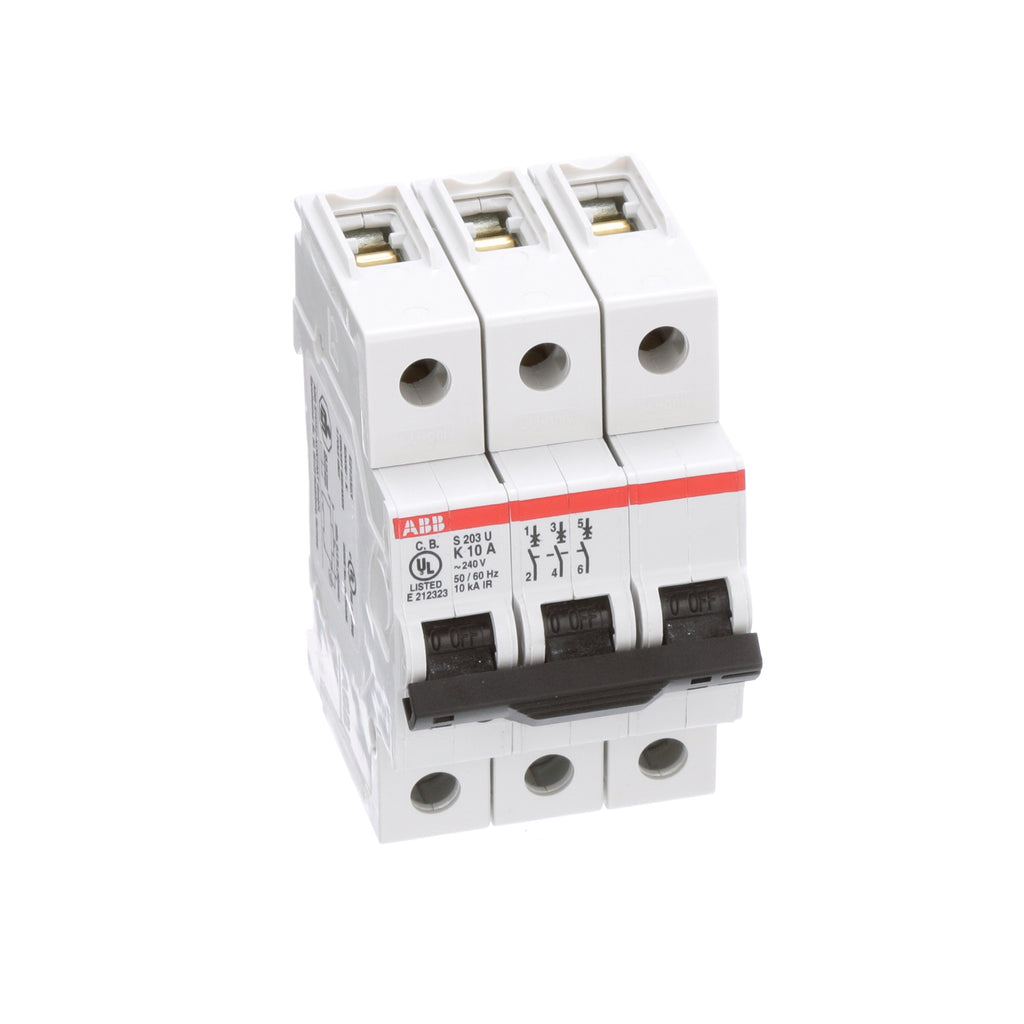

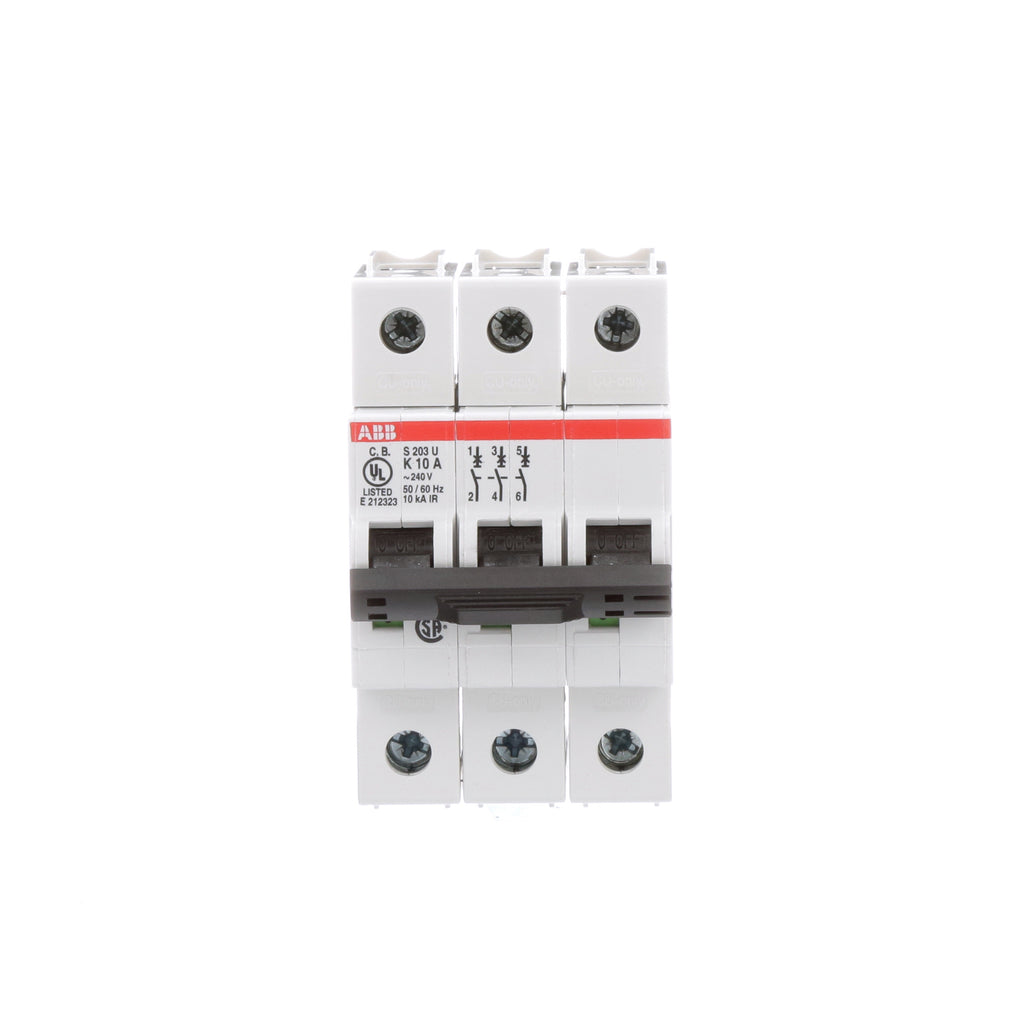

S203U-K10
S203U-K10 is a 3-pole miniature circuit breaker from ABB designed for reliable branch circuit protection in residential, commercial, and industrial applications. The S203U-K10 features a 10 ampere rating, 240 VAC voltage rating, and a K curve thermal magnetic trip unit for moderate inrush current protection. It offers a 10kA interrupt rating and mounts on a 35mm DIN rail with screw connections.
- Rated Current: 10 A
- Voltage Rating: 240 VAC
- Number of Poles: 3
- Trip Curve: K Curve (Thermal Magnetic)
- Interrupt Rating: 10 kA
- Mounting Type: DIN Rail
- Wire Size: 18 to 4 AWG
- Enclosure Rating: IP20
- Operating Temperature: -25 to 55 °C
- Dimensions: 92 mm H x 52.5 mm W x 71 mm D
- Certifications: UL 489
- Series: S200U
Specifications
- Part Number: S203U-K10
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : S 200 U Series
- Type : S203U-K
- Voltage : 240
- Amperage : 10
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- Weight : 0.72
