2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
S203-K32

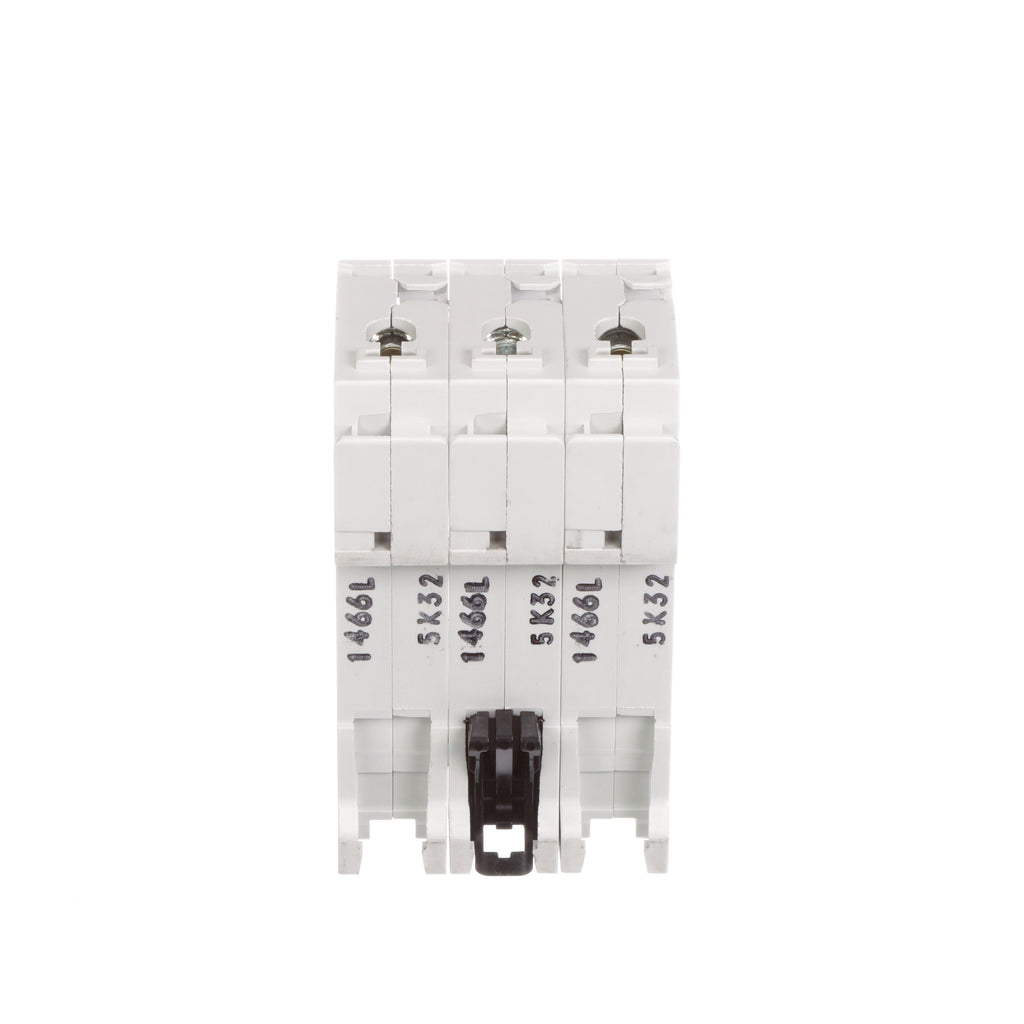

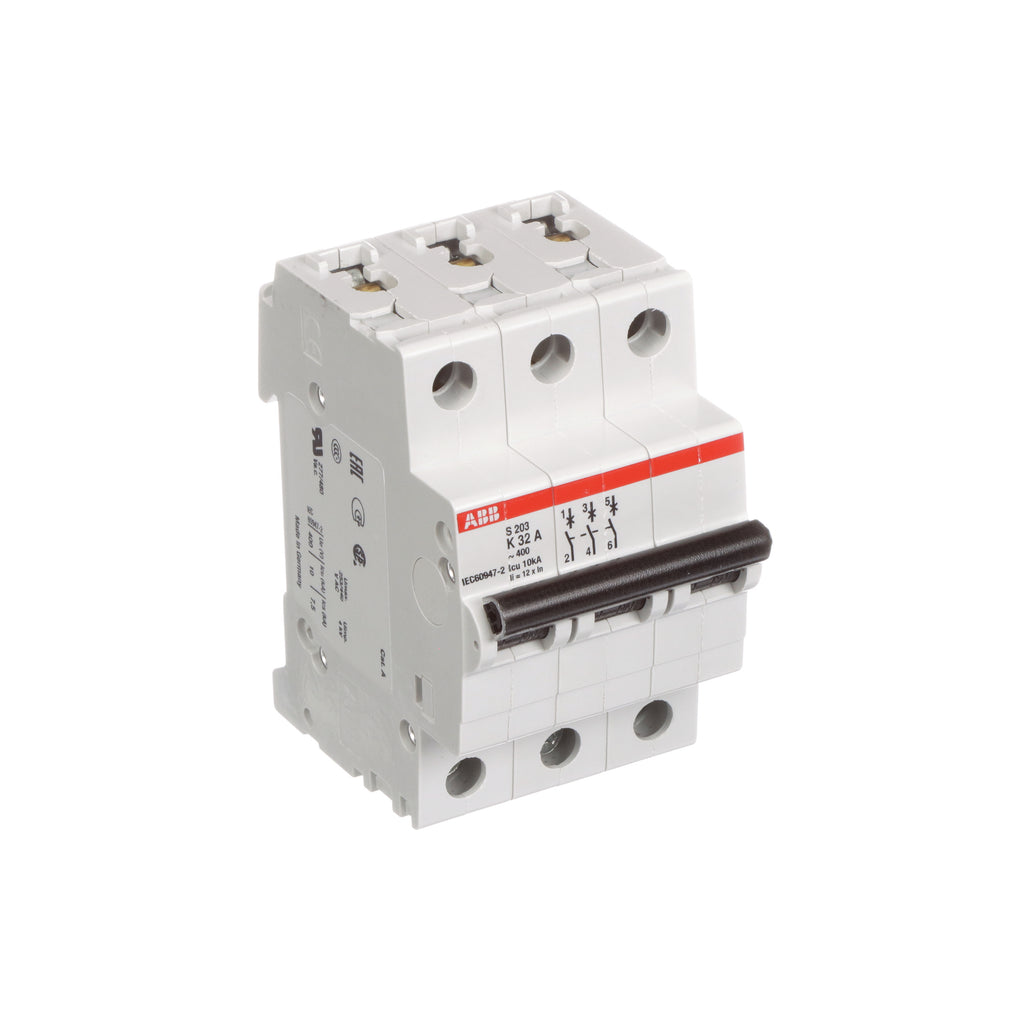

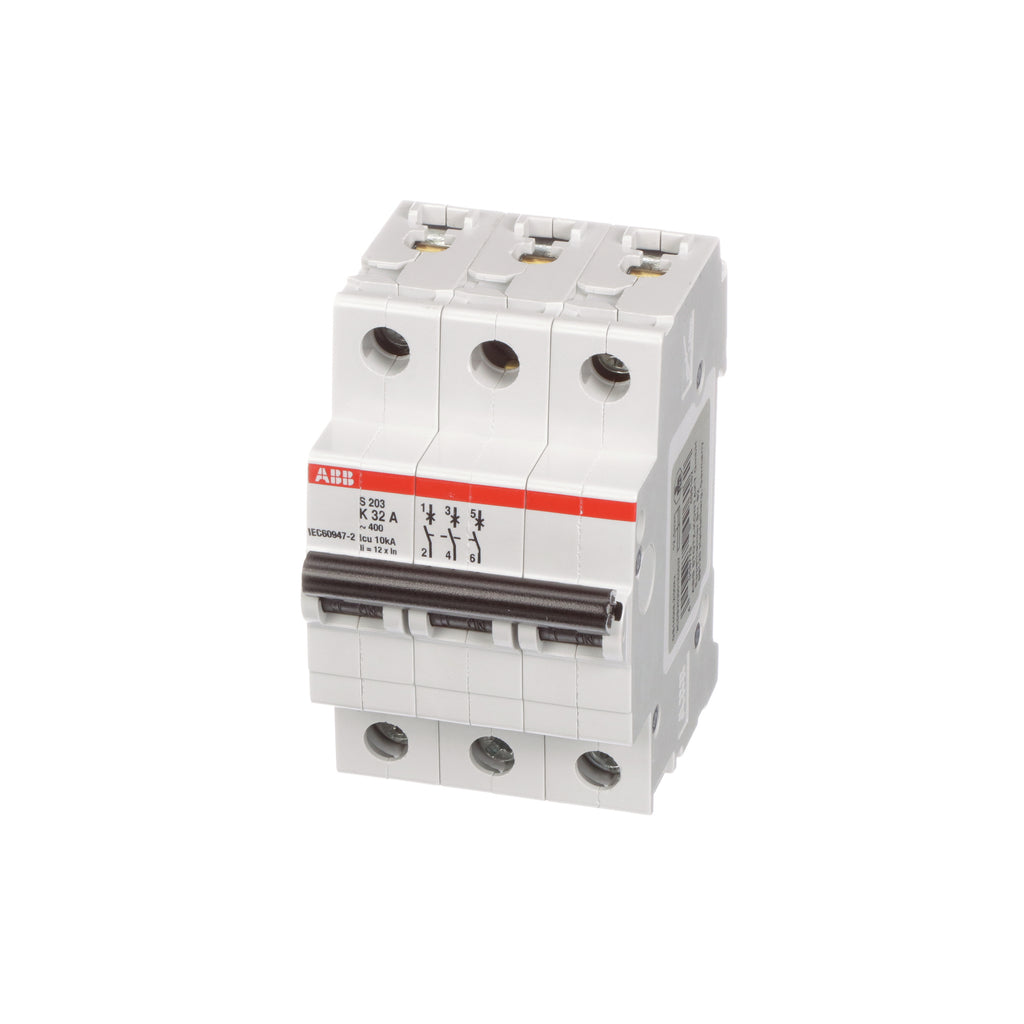

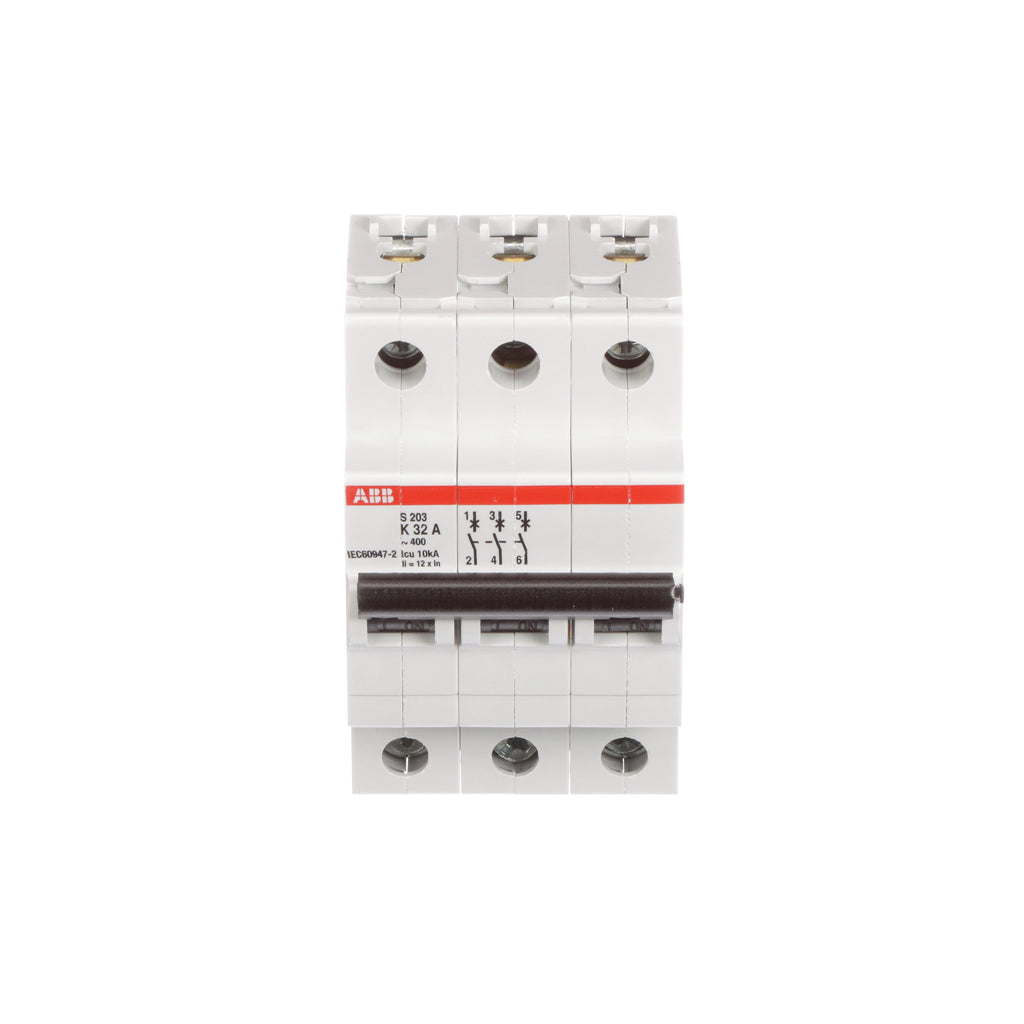

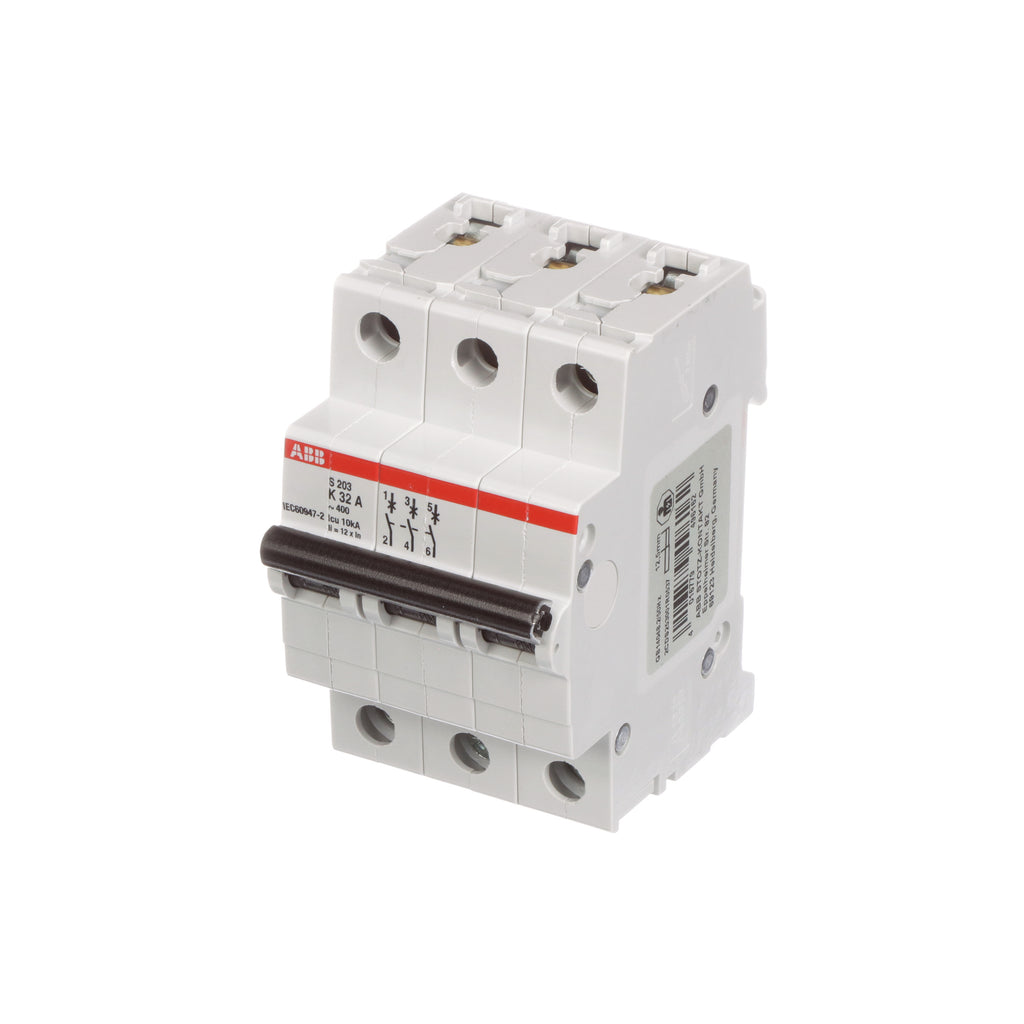

S203-K32 is a 3-pole miniature circuit breaker from ABB's S200 series designed for reliable circuit protection.This circuit breaker features a 32 ampere rating with a K-type trip characteristic, suitable for 240V AC applications. It offers a rated short-circuit breaking capacity of 10 kA and is designed for screw connection mounting with IP20 enclosure protection. The compact dimensions and thermal magnetic trip unit ensure effective overload and short circuit protection.
- Manufacturer: ABB
- Series: S200
- Poles: 3
- Amperage: 32A
- Voltage Rating: 240V AC
- Trip Characteristic: K
- Interrupt Rating: 10 kA
- Mounting Type: Screw connection
- Enclosure Type: IP20
- Actuator Type: Toggle
- Dimensions: 69 mm L x 52.5 mm W x 88 mm H
- Certifications: Complies with relevant IEC standards
Specifications
- Part Number: S203-K32
- Manufacturer : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Voltage : 480
- Amperage : 32
- Phase : 3
- Poles : 3
- AIC rating : 6kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 01677949616
- GTIN : 04016779496162
- Dimensions : Depth / Length 69 mm X Height 88 mm X Width 52.5 mm
- Weight : 0.83
- Certification : EN IEC UL
