Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
S203-K2

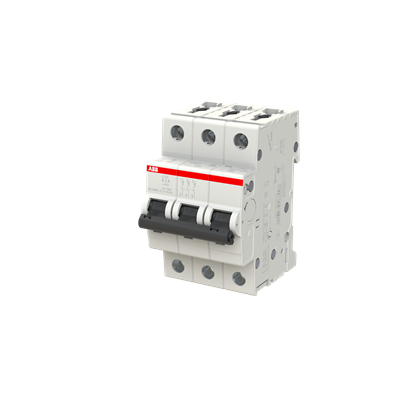

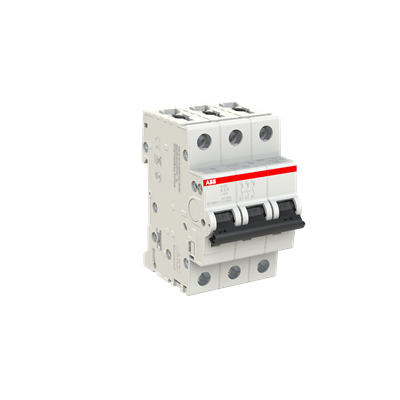

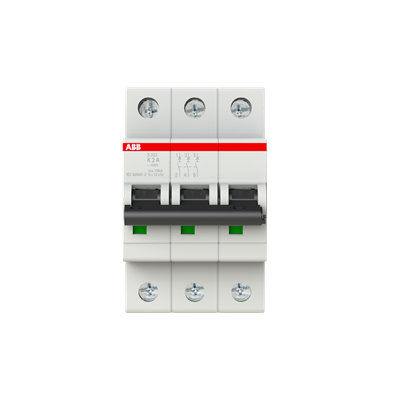

S203-K2 is a 2 amp, 3-pole miniature circuit breaker from ABB's S200 series designed for 480V AC applications with K-curve trip characteristics. S203-K2 features thermal magnetic trip units providing long-time and instantaneous trip functions suitable for reverse feed protection. It has a bolt-on mounting type and complies with UL 1077, CSA 22.2 No. 235, and IEC 60898 standards.
- Key Specifications
- Amperage: 2 A
- Voltage: 480 V AC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 6 kA at 480 V AC
- Series/Frame: S200
- Trip Unit: Thermal Magnetic, K-Curve
- Frequency: 50/60 Hz
- IP Rating: IP20
- Certifications: UL 1077, CSA 22.2 No. 235, IEC 60898
- Suitable for reverse feed
- Failsafe bi-directional cylinder-lift terminal
Specifications
- Part Number: S203-K2
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : S 200 Series
- Type : S203-K
- Voltage : 480
- Amperage : 2
- Phase : 3
- Poles : 3
- AIC rating : 6kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 662019171623
- GTIN : 04016779507493
- Country of Origin : United States
- Dimensions : Depth / Length 69 mm X Height 88 mm X Width 52.5 mm
- Weight : 0.1
- Certification : EN IEC UL
