Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description

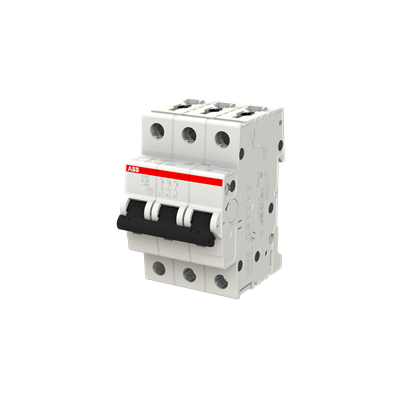

S203-D25
S203-D25 is a 3-pole miniature circuit breaker from ABB's S200 Series, designed for reliable protection in commercial and industrial applications. This breaker features a 25A current rating, 480VAC maximum voltage, and a Type D trip curve for handling high inrush loads. It is DIN rail mountable and offers a 6kA interrupting capacity, making it suitable for demanding environments. The S203-D25 is UL1077 recognized and features a current-limiting design with thermal-magnetic tripping for enhanced safety.
- Part Number: S203-D25
- Manufacturer: ABB
- Series: S200
- Poles: 3
- Rated Current: 25A
- Rated Voltage: 480VAC
- Interrupting Capacity: 6kA
- Mounting Type: DIN Rail
- Tripping Curve: Type D
- Tripping Mechanism: Thermal-Magnetic
- Standards: UL1077 Recognized
- Application: Commercial & Industrial
Specifications
- Part Number: S203-D25
- Manufacturer : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Voltage : 480
- Amperage : 25
- Phase : 3
- Poles : 3
- AIC rating : 6kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 01677953094
- GTIN : 04016779530941
- Dimensions : Depth / Length 69 mm X Height 88 mm X Width 52.5 mm
- Weight : 100
- Certification : EN IEC UL
