2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
S203-D2

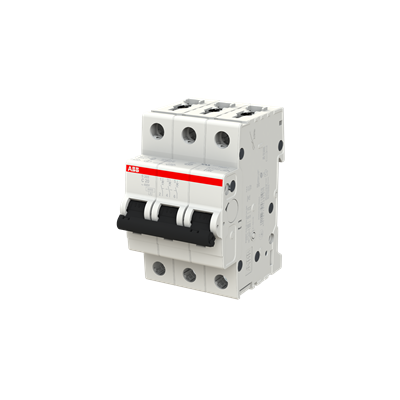

S203-D2 is a 3-pole miniature circuit breaker from ABB's S200 series, designed for reliable protection in commercial and industrial applications. This breaker features a 2A trip rating, 480VAC maximum voltage, and is DIN rail mountable for easy installation. The S203-D2 provides both thermal overload and electromagnetic short-circuit protection, with a 6kA interrupt rating. It is suitable for use in 480Y/277VAC systems and complies with IEC/EN 60898-1, IEC/EN 60947-2, UL1077, and CSA 22.2 No. 235 standards. The breaker features a compact design and bi-directional cylinder-lift terminals for secure connections.
- Part Number: S203-D2
- Manufacturer: ABB
- Series: S200
- Poles: 3
- Rated Current: 2A
- Rated Voltage: 480VAC
- Mounting Type: DIN Rail
- Interrupt Rating: 6kA
- Tripping Curve: D
- Standards: IEC/EN 60898-1, IEC/EN 60947-2, UL1077, CSA 22.2 No. 235
- Width: 52.5mm
- Depth: 76mm
Specifications
- Part Number: S203-D2
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : S 200 Series
- Type : S203-D
- Voltage : 480
- Amperage : 2
- Phase : 3
- Poles : 3
- AIC rating : 6kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 01677953084
- GTIN : 04016779530842
- Country of Origin : United States
- Dimensions : Depth / Length 69 mm X Height 88 mm X Width 52.5 mm
- Weight : 1
- Certification : EN IEC UL
