S203-D10 - ABB 10A 3-Pole Miniature Circuit Breaker D Curve 6kA 440V System pro M Compact

Save $150.26
SKU: S203-D10-New
Condition: New
Price:
$101.48 $251.74
Stock:
Low inventory, please call for stock check
Factory Lead Time: 17 business days. Ships based on manufacturer availability when out of stock. All factory-ordered products are non-cancelable and non-returnable.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

S203-D10 - ABB 10A 3-Pole Miniature Circuit Breaker D Curve 6kA 440V System pro M Compact - Essential Electric Supply

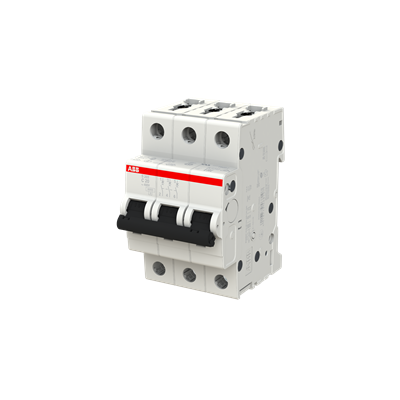

Roll over image to zoom in Click on image to zoom Images are for reference only
S203-D10 - ABB 10A 3-Pole Miniature Circuit Breaker D Curve 6kA 440V System pro M Compact - Essential Electric Supply

Description

S203-D10


S203-D10 is a 10 amp, 3-pole miniature circuit breaker from ABB's System pro M Compact series designed for reliable circuit protection.This circuit breaker features a D curve trip characteristic with a high breaking capacity of 6 kA at 230 VAC and rated insulation voltage of 440 V. It uses a thermal-magnetic trip unit and offers IP20 protection with screw clamp terminals. The device is current limiting and suitable for various industrial and commercial applications.
    Key Specifications
    • Amperage: 10 A
    • Poles: 3
    • Voltage Rating: 440 V insulation voltage
    • Breaking Capacity: 6 kA at 230 VAC
    • Trip Unit: Thermal-magnetic (D curve)
    • Mounting Type: DIN rail mount
    • Series/Frame: System pro M Compact S200
    • Protection Rating: IP20
    • Terminal Type: Screw clamp terminals
    • Certifications: UL 1077 compliant
    At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

    Specifications

    • Part Number: S203-D10
    • Manufacturer : ABB
    • Brand : ABB
    • Category : Circuit Breaker
    • Item Subcategory : Molded Case
    • Family : S 200 Series
    • Type : S203-D
    • Voltage : 480
    • Amperage : 10
    • Phase : 3
    • Poles : 3
    • AIC rating : 6kA@480V
    • Connection : Feed-Thru
    • Functions : LI - Long-Time and Instantaneous
    • Protection : Thermal Magnetic

    Product Data

    • UPC : 01677953090
    • GTIN : 04016779530903
    • Dimensions : Depth / Length 69 mm X Height 88 mm X Width 52.5 mm
    • Weight : 1.04
    • Certification : EN IEC UL
