Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description

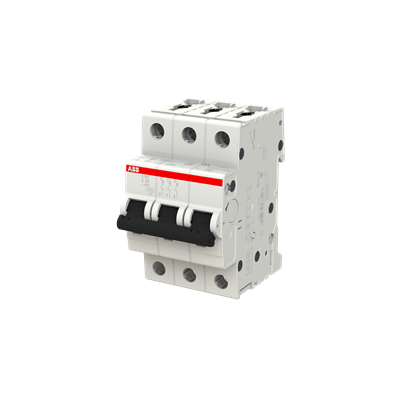

S203-C40
S203-C40 is a 3 pole, 40 amp miniature circuit breaker from ABB designed for reliable circuit protection in industrial and commercial applications.This circuit breaker features a 480 Volt rating, C curve trip characteristic, and thermal magnetic trip unit. It offers a 6kA interrupting rating at 480V AC and is suitable for bolt-on mounting. The device includes screw terminals and complies with IEC/EN 60898-1, IEC/EN 60947-2, and UL 1077 standards. It supports operation in ambient temperatures from -25 to +55 °C and provides IP20 degree of protection.
- Key Specifications
- Amperage: 40 A
- Voltage: 480 V AC
- Number of Poles: 3
- Trip Curve: C
- Interrupt Rating: 6 kA at 480 V
- Mounting Type: Bolt-On
- Terminal Type: Screw Terminals
- Trip Unit: Thermal Magnetic
- Degree of Protection: IP20
- Standards: IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
- Operating Temperature: -25 to +55 °C
Specifications
- Part Number: S203-C40
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : S 200 Series
- Type : S203-C
- Voltage : 480
- Amperage : 40
- Phase : 3
- Poles : 3
- AIC rating : 6kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 01677946840
- GTIN : 04016779468404
- Dimensions : Depth / Length 69 mm X Height 88 mm X Width 52.5 mm
- Weight : 2.78
- Certification : EN IEC UL
