Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
S203-C32

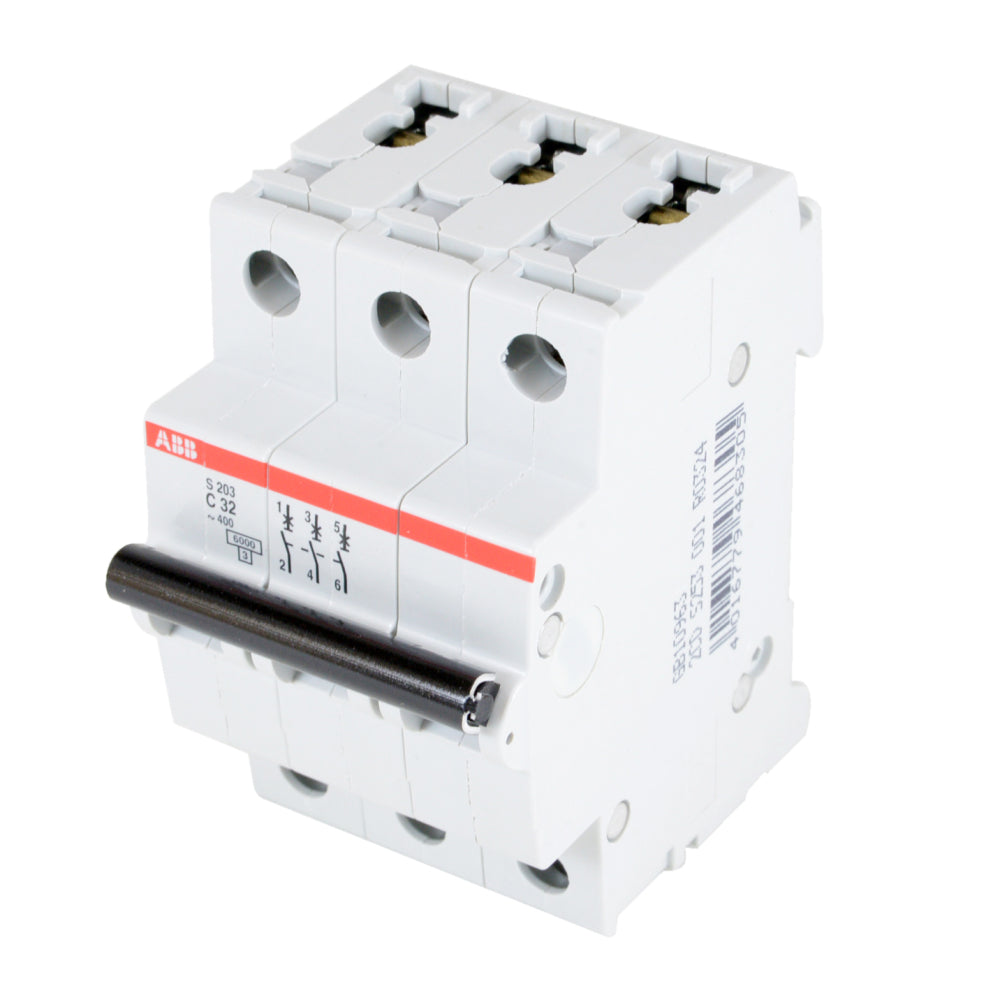

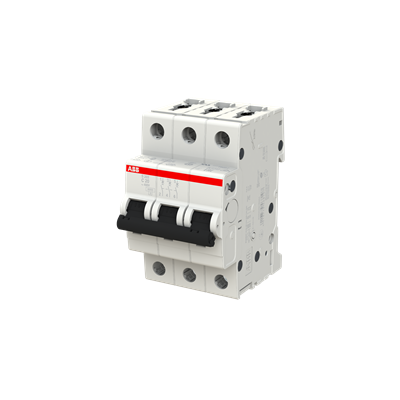

S203-C32 is a 3 pole miniature circuit breaker from ABB, designed for reliable overload and short circuit protection in electrical distribution systems.This ABB S203-C32 circuit breaker features a thermal-magnetic trip mechanism with a C curve, providing protection for a wide range of applications. It is suitable for DIN rail mounting and offers a rated current of 32A with a 6kA interrupt rating. The device is designed for use in systems up to 440V AC and is built to meet international safety standards.
- 3 Pole Configuration
- 32A Rated Current
- 6kA Interrupt Rating
- C Curve Trip Unit
- DIN Rail Mounting
- 440V AC Maximum Voltage
- Thermal-Magnetic Protection
- IEC/EN 60898-1 Certified
- IEC/EN 60947-2 Certified
- UL 1077 Listed
- IP20 Rating
- 12.5 mm per Pole Width
Specifications
- Part Number: S203-C32
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : S 200 Series
- Type : S203-C
- Voltage : 480
- Amperage : 32
- Phase : 3
- Poles : 3
- AIC rating : 6kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 016779468309
- Dimensions : Depth / Length 69 mm X Height 88 mm X Width 52.5 mm
- Weight : 0.75
- Certification : EN IEC UL
