S203-C20 - ABB 20A 277/480V 3-Pole Miniature Circuit Breaker, System Pro M Compact S200 Frame, C Curve, DIN Rail Mount, 6kA/10kA Interrupt, Thermal-Magnetic Trip, RoHS Compliant

Save $173.16
SKU: S203-C20-New
Condition: New
Price:
$32.35 $205.51
Stock:
Low inventory, please call for stock check
Factory Lead Time: 17 business days. Ships based on manufacturer availability when out of stock. All factory-ordered products are non-cancelable and non-returnable.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

S203-C20 - ABB 20A 277/480V 3-Pole Miniature Circuit Breaker, System Pro M Compact S200 Frame, C Curve, DIN Rail Mount, 6kA/10kA Interrupt, Thermal-Magnetic Trip, RoHS Compliant - Essential Electric Supply

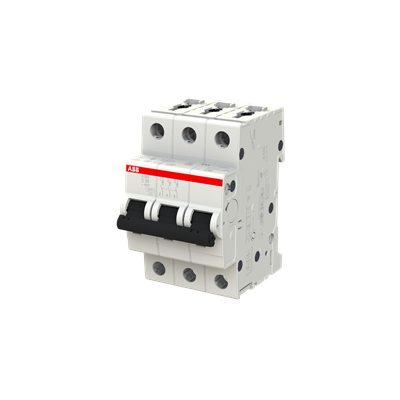

Roll over image to zoom in Click on image to zoom Images are for reference only
S203-C20 - ABB 20A 277/480V 3-Pole Miniature Circuit Breaker, System Pro M Compact S200 Frame, C Curve, DIN Rail Mount, 6kA/10kA Interrupt, Thermal-Magnetic Trip, RoHS Compliant - Essential Electric Supply

Description

S203-C20


S203-C20 is a high-performance ABB miniature circuit breaker designed for reliable protection in commercial and industrial applications.

This 3-pole thermal-magnetic circuit breaker features a 20A current rating, C trip curve for moderate inrush loads, and is part of the System Pro M Compact S200 series. It offers current-limiting protection, long-time and instantaneous trip functions, and is suitable for reverse feed. The device is rated for 277VAC and 480VAC, with an interrupting capacity of 6kA at 480V and 10kA at lower voltages. It mounts on standard DIN rail and is RoHS compliant.

    Key Specifications
  • Manufacturer: ABB
  • Part Number: S203-C20
  • Amperage: 20A
  • Voltage: 277VAC, 480VAC
  • Poles: 3
  • Mounting Type: DIN Rail
  • Interrupt Rating: 6kA @ 480V, 10kA @ lower voltages
  • Series/Frame: System Pro M Compact S200
  • Trip Unit: Thermal-magnetic, C curve
  • Certifications: RoHS compliant
  • Connectable Conductors: 0.75–25 mm² (flexible), 0.75–35 mm² (solid)
  • Rated Impulse Withstand Voltage: 4kV
  • Degree of Protection: IP20

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

  • Part Number: S203-C20
  • Manufacturer : ABB
  • Brand : ABB
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : S 200 Series
  • Type : S203-C
  • Voltage : 480
  • Amperage : 20
  • Phase : 3
  • Poles : 3
  • AIC rating : 6kA@480V
  • Connection : Feed-Thru
  • Functions : LI - Long-Time and Instantaneous
  • Protection : Thermal Magnetic

Product Data

  • UPC : 01677946810
  • GTIN : 04016779468107
  • Dimensions : Depth / Length 69 mm X Height 88 mm X Width 52.5 mm
  • Weight : 0.9
  • Certification : EN IEC UL
