S203-C16 - ABB 3-Pole 16A 277V C Curve Circuit Breaker System pro M Compact S200

S203-C16

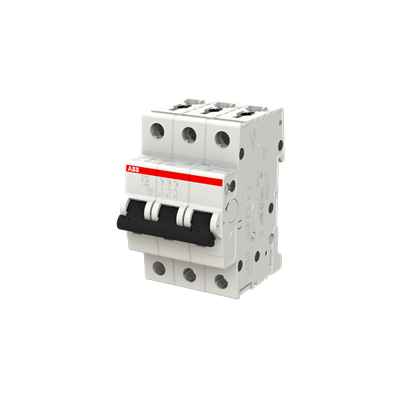

S203-C16 is a 3-pole miniature circuit breaker from ABB's System pro M Compact S200 series designed for reliable protection in electrical installations. S203-C16 features a 16 ampere current rating with a C curve trip characteristic, suitable for general purpose applications. It supports an AC voltage of up to 277 V and DC voltage of 12 V, with a breaking capacity of 6 kA at 230/400 V AC. The device mounts on a DIN rail and complies with IEC/EN 60898-1, IEC/EN 60947-2, and UL 1077 standards. It uses a thermal-magnetic trip unit providing overload and short circuit protection.

Key Specifications
• Manufacturer: ABB
• Part Number: S203-C16
• Poles: 3
• Current Rating: 16 A
• Voltage Rating: 277 V AC, 12 V DC
• Trip Curve: C Curve
• Interrupt Rating: 6 kA
• Mounting Type: DIN Rail
• Series: System pro M Compact S200
• Standards: IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
• Dimensions: 53 W x 69 D x 88 H mm
• Trip Unit: Thermal-Magnetic

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: S203-C16
• Manufacturer : ABB
• Brand : ABB
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Voltage : 480
• Amperage : 16
• Phase : 3
• Poles : 3
• AIC rating : 6kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 01677946800
• GTIN : 04016779468008
• Dimensions : Depth / Length 69 mm X Height 88 mm X Width 52.5 mm
• Weight : 0.41
• Certification : EN IEC UL
