Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description

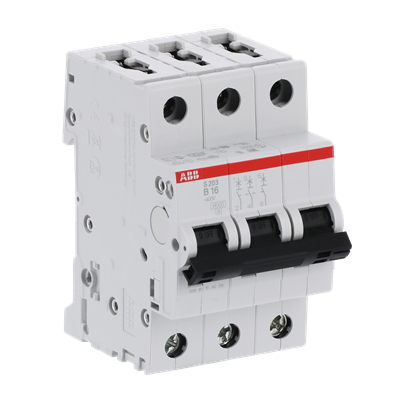

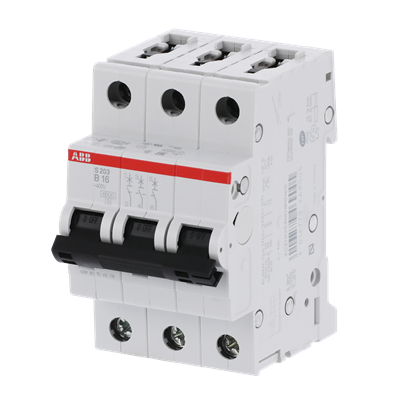

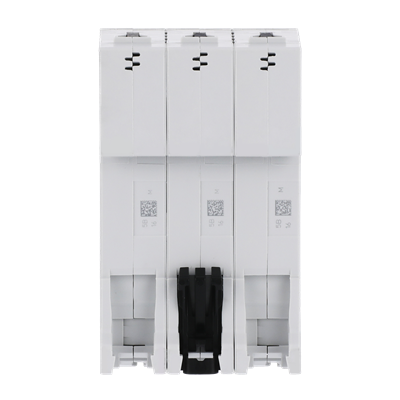

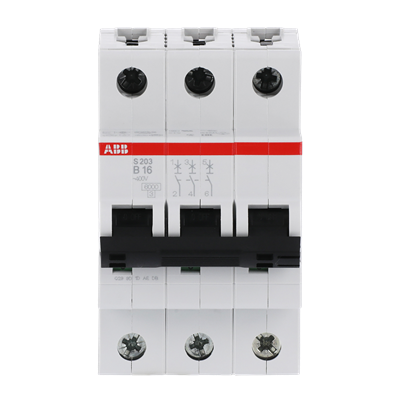

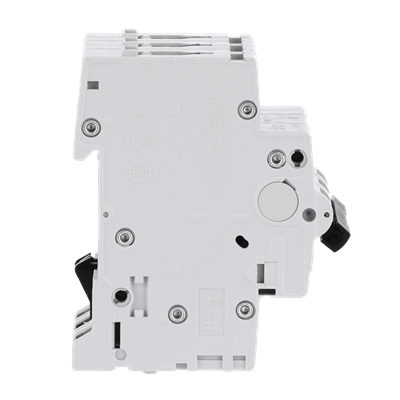

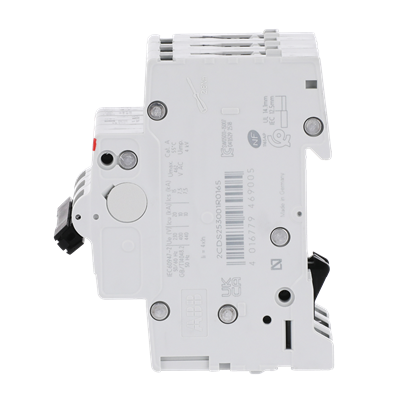

S203-B16
S203-B16 is a 16 ampere, 3-pole miniature circuit breaker from ABB's System pro M compact S200 series designed for reliable circuit protection.This circuit breaker features a B-type trip characteristic suitable for residential, commercial, and industrial applications. It supports a rated voltage of 230/400 volts AC and a breaking capacity of up to 6 kA at 230/400 V AC. The device includes both delayed thermal tripping for overload protection and electromechanical tripping for short circuit protection. It mounts on DIN rails and complies with IEC/EN 60898-1, IEC/EN 60947-2, UL 1077, and CSA 22.2 No. 235 standards.
- Key Specifications
- Amperage: 16 A
- Poles: 3
- Rated Voltage: 230/400 V AC
- Trip Characteristic: B
- Breaking Capacity: 6 kA at 230/400 V AC
- Mounting Type: DIN Rail
- Series/Frame: System pro M compact S200
- Trip Unit: Thermal-magnetic
- Certifications: IEC/EN 60898-1, IEC/EN 60947-2, UL 1077, CSA 22.2 No. 235
- Contact Position Indication: Red/Green
- Degree of Protection: IP20
Specifications
- Part Number: S203-B16
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : S 200 Series
- Voltage : 480
- Amperage : 16
- Phase : 3
- Poles : 3
- AIC rating : 6kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- GTIN : 4016779469005
- Dimensions : Depth / Length 69 mm X Height 88 mm X Width 52.5 mm
- Weight : 0.41
- Certification : EN IEC UL
