Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description

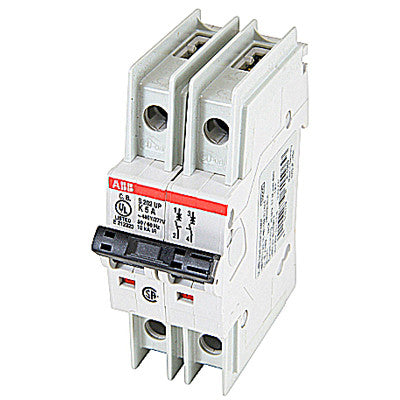

S202UP-K5
S202UP-K5 is a 2 pole, 5 amp thermal magnetic circuit breaker from ABB designed for branch circuit protection with a 10kA interrupt rating at 480Y/277VAC.The ABB S202UP-K5 features a thermal magnetic trip unit with a K trip curve, suitable for protecting motors and transformers. It is part of the S200 series and mounts on a DIN rail for easy installation. Rated for 480Y/277VAC and 125VDC, it offers reliable protection with finger-safe terminals and line/load side lug connections.
- Key Specifications
- Amperage: 5 Amps
- Voltage: 480Y/277VAC, 125VDC
- Poles: 2
- Mounting Type: DIN Rail
- Interrupt Rating: 10kA at 480V
- Series/Frame: S202
- Trip Unit: Thermal Magnetic, K Trip Curve
- Certifications: UL 489, IEC, EN, CSA, CE
- Connection Type: Feed-Thru with Line and Load Side Lugs
- Terminal Wire Gauge: AWG 18 to AWG 8 (Line), AWG 18 to AWG 4 (Load)
- Breaker Feature: Finger-Safe Terminals
- Operating Temperature: -25 to 55 °C
Specifications
- Part Number: S202UP-K5
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : S 200 UP Series
- Type : S202UP-K
- Voltage : 480
- Amperage : 5
- Phase : 1
- Poles : 2
- AIC rating : 10kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- Weight : 0.77
