Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
S202-K8

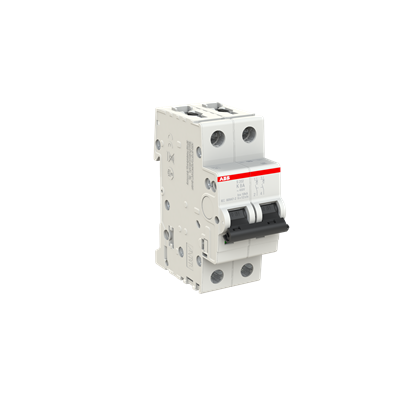

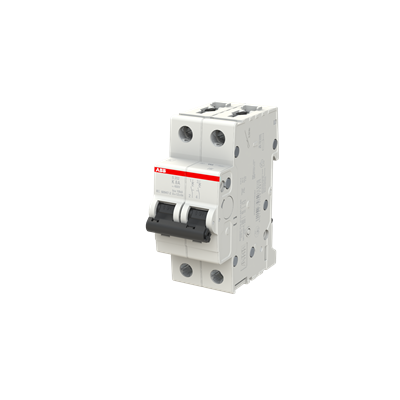

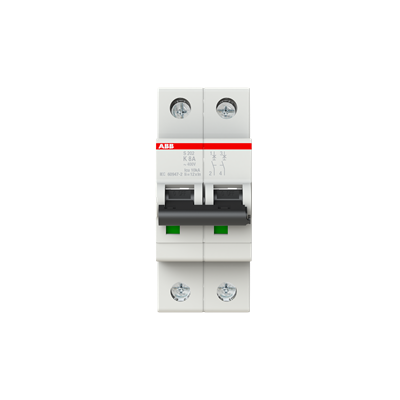

S202-K8 is an ABB S200 series miniature circuit breaker designed for supplemental protection in control panel and distribution applications. This 2-pole, 8-ampere breaker operates at 480Y/277V AC and features a K-curve tripping characteristic for reliable performance in circuits with moderate inrush currents. The device is current-limiting and employs delayed thermal tripping mechanisms to provide coordinated protection. With a 6 kAIC interrupt rating, the S202-K8 meets UL 1077 and CSA 22.2 standards for safety and performance.
- Poles: 2
- Rated Current: 8 Amperes
- Voltage: 480Y/277V AC
- Tripping Characteristic: K-Curve
- Interrupt Rating: 6 kAIC
- Series: S200 System pro M compact
- Certifications: UL 1077, CSA 22.2
- Product ID: 2CDS252001R0407
Specifications
- Part Number: S202-K8
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : S 200 Series
- Type : S202-K
- Voltage : 480
- Amperage : 8
- Phase : 1
- Poles : 2
- AIC rating : 6kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 662019171067
- GTIN : 04016779507387
- Country of Origin : United States
- Dimensions : Depth / Length 69 mm X Height 88 mm X Width 35 mm
- Weight : 1
- Certification : EN IEC UL
