Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description

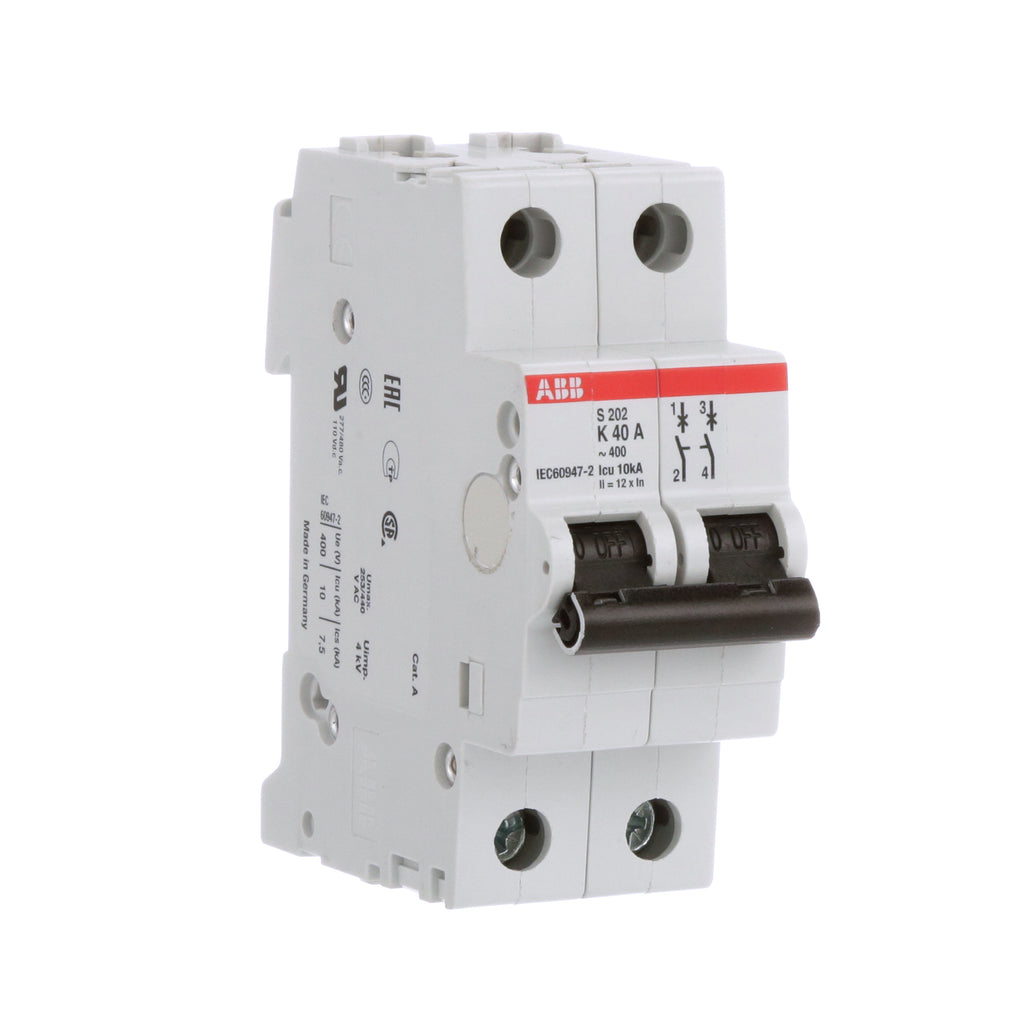

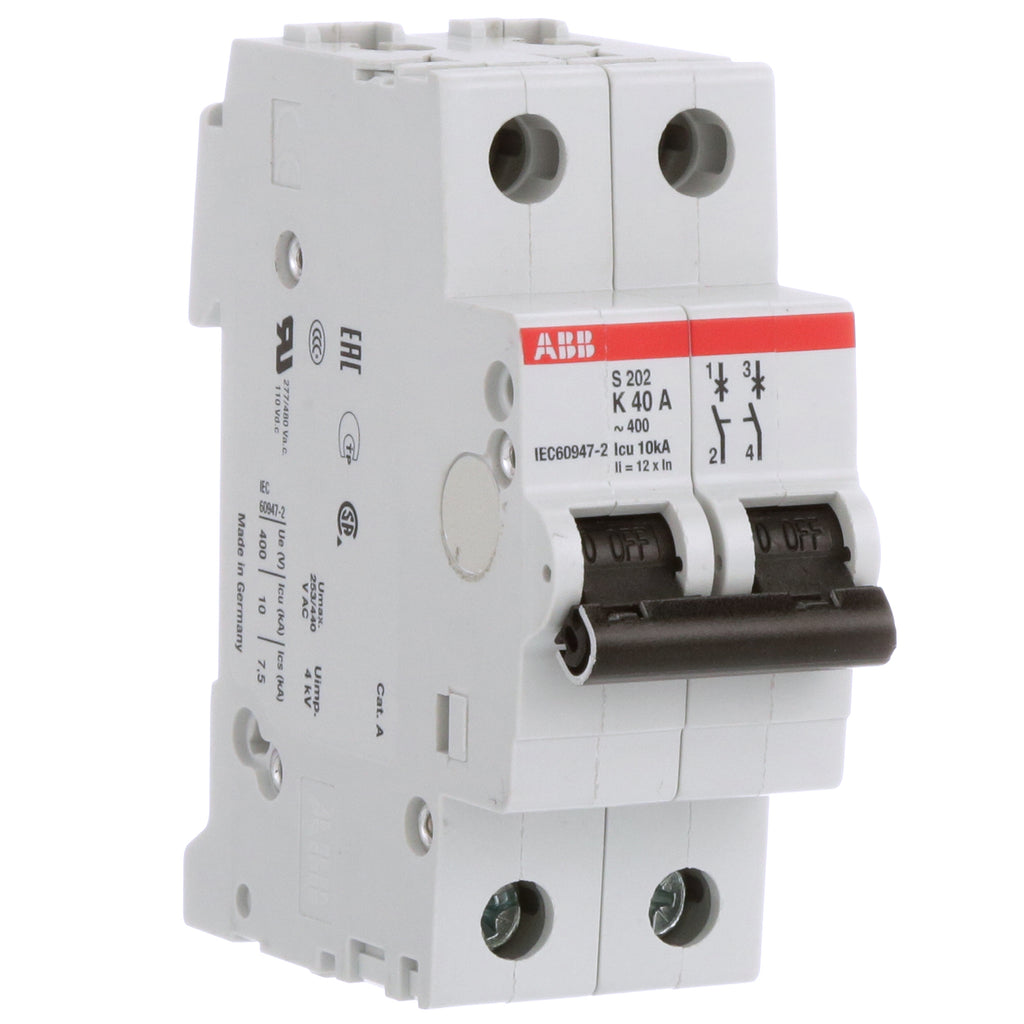

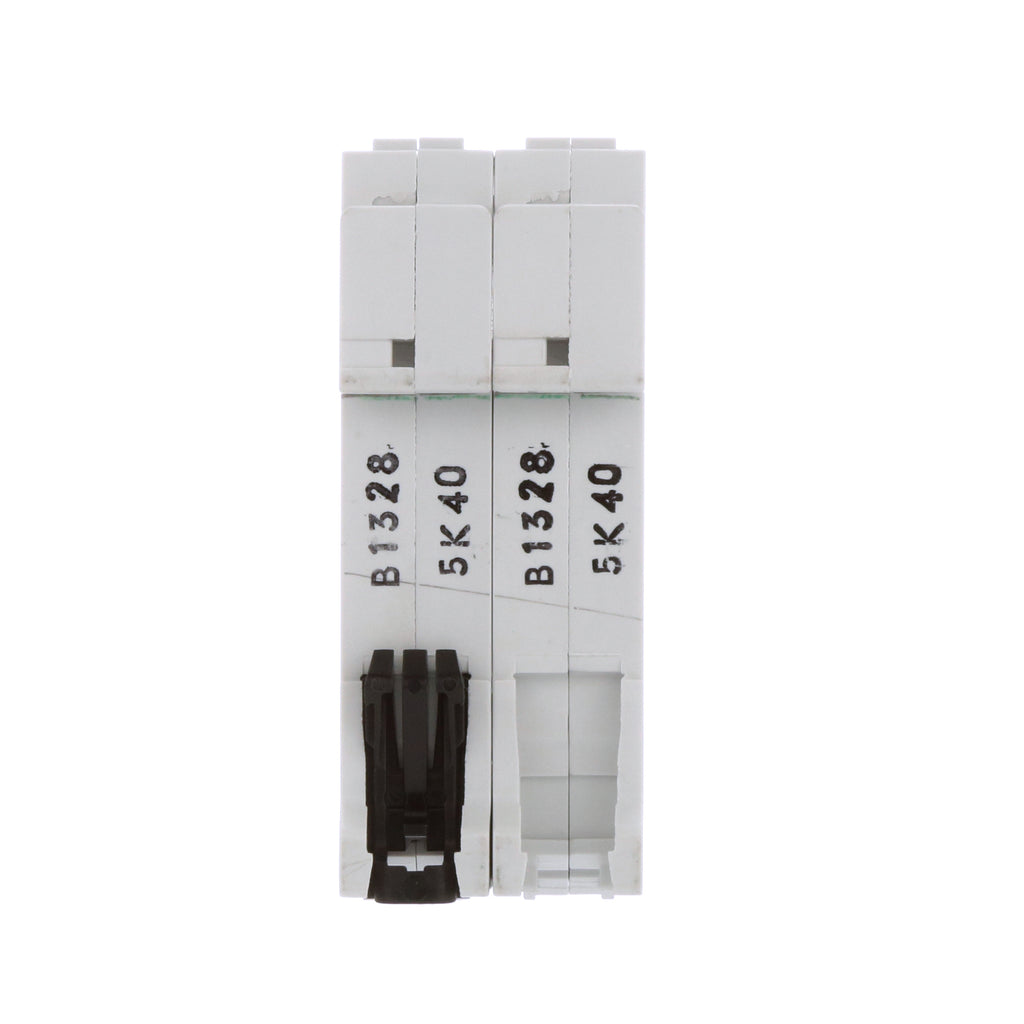

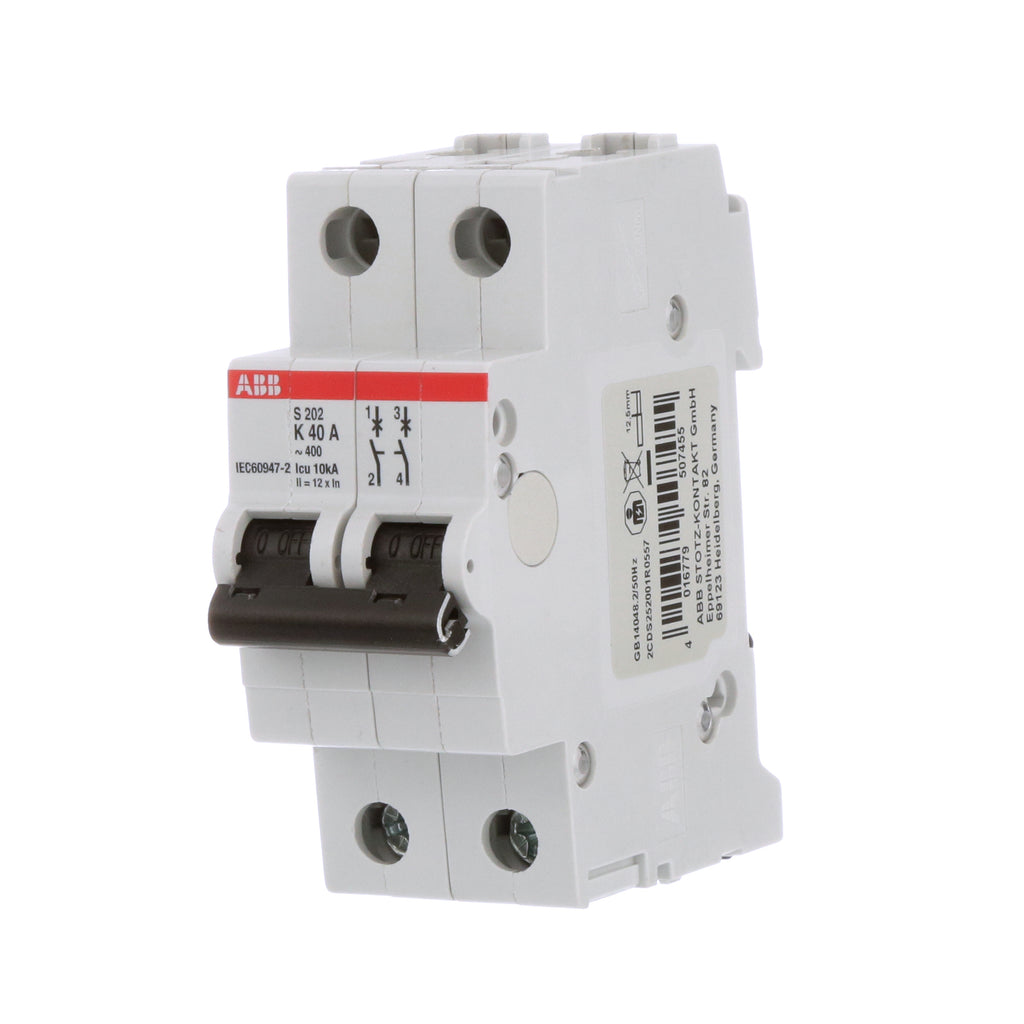

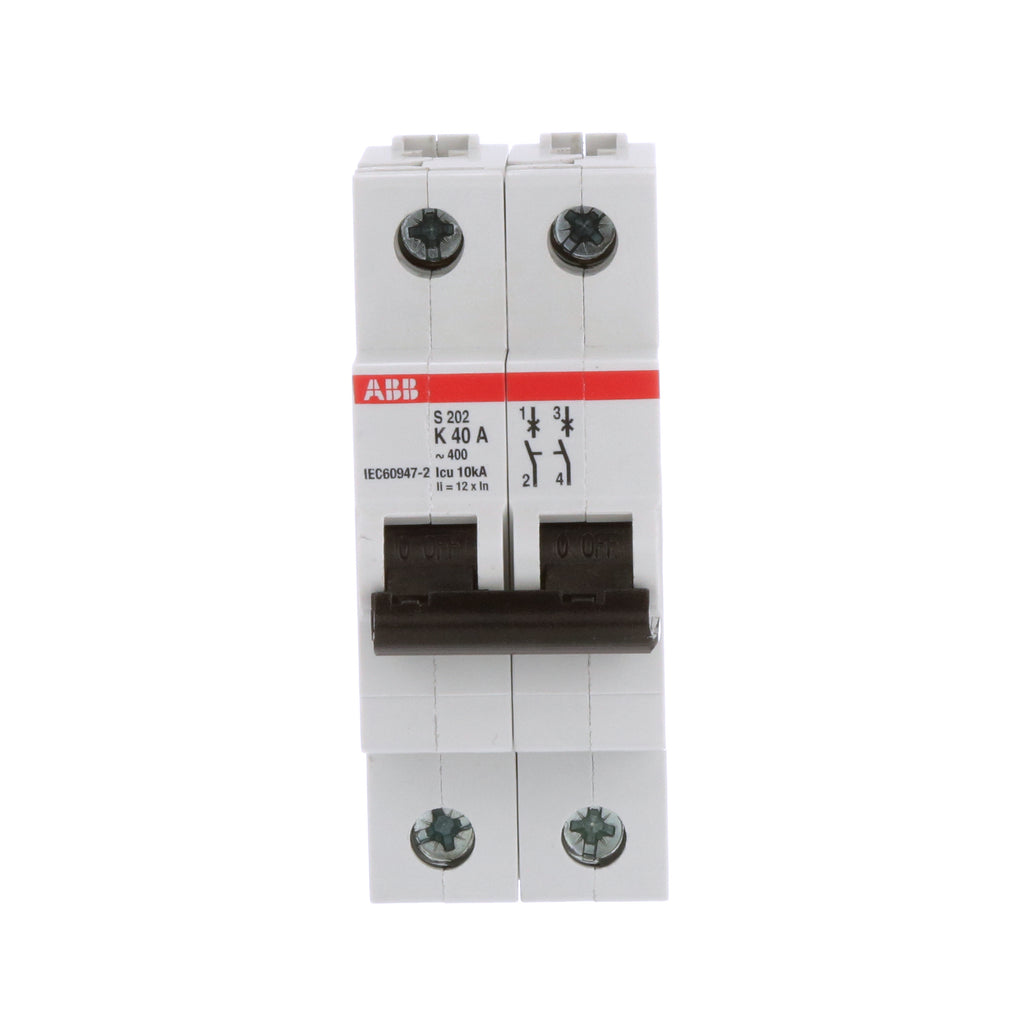

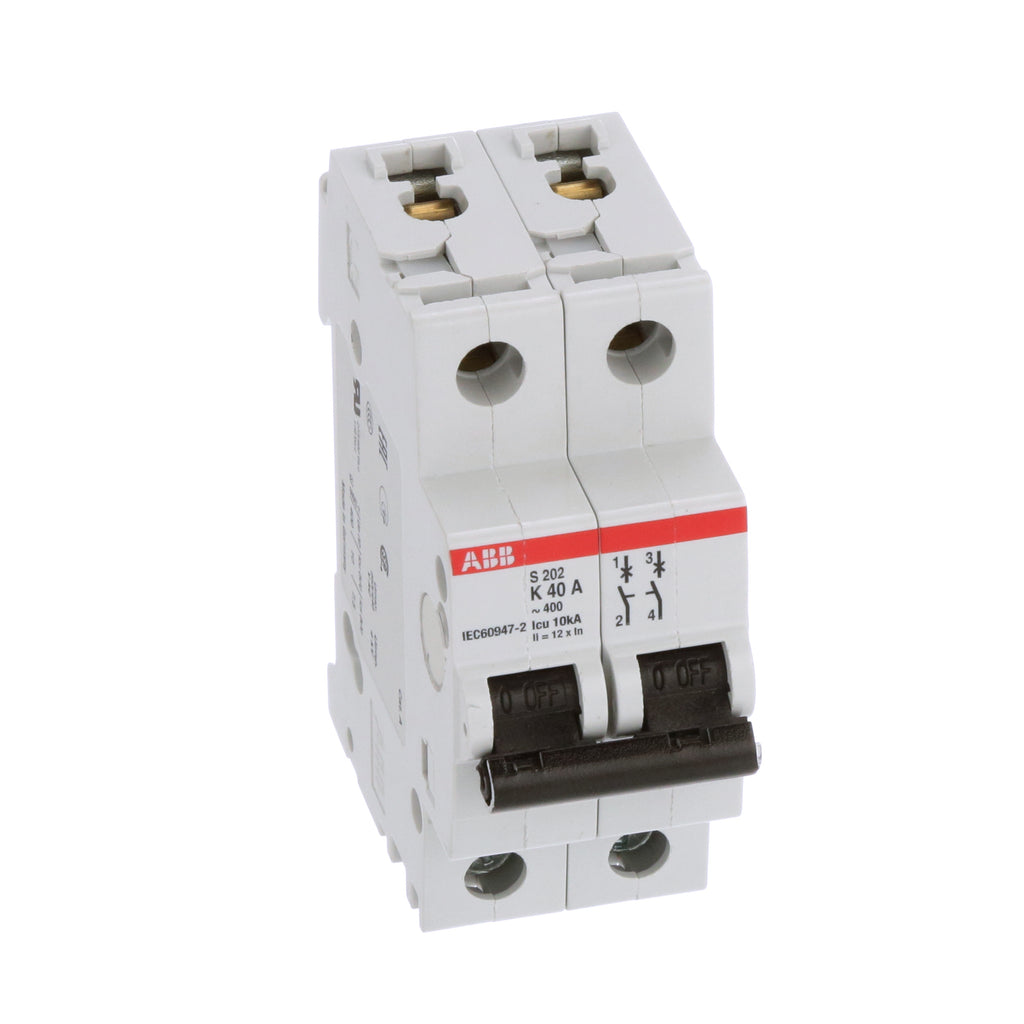

S202-K40
S202-K40 is a 40 Amp, 2 pole, 480V AC circuit breaker from ABB, designed for reliable protection in commercial and industrial applications.
This current-limiting miniature circuit breaker features both delayed thermal and electromechanical tripping mechanisms for overload and short circuit protection. It is part of the System pro M compact S200 series, suitable for DIN rail or bolt-on mounting, and complies with major international standards for safety and performance.
-
Key Specifications
- Amperage: 40A
- Voltage: 480V AC (480Y/277VAC)
- Poles: 2
- Mounting Type: DIN rail or bolt-on
- Interrupt Rating: 6kAIC at 480V
- Series/Frame: S200 (S202)
- Trip Unit: Thermal magnetic, K-curve
- Certifications: UL1077 Recognized, IEC/EN 60947-2, UL489, CSA 22.2 No. 5
- Current Limiting: Yes
- Trip Mechanisms: Delayed thermal (overload), electromechanical (short circuit)
- Configuration: 2 pole
- Suitable for reverse feed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: S202-K40
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : S 200 Series
- Type : S202-K
- Voltage : 480
- Amperage : 40
- Phase : 1
- Poles : 2
- AIC rating : 6kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 01677950745
- GTIN : 04016779507455
- Dimensions : Depth / Length 69 mm X Height 88 mm X Width 35 mm
- Weight : 0.5
- Certification : EN IEC UL
