Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
S202-K2

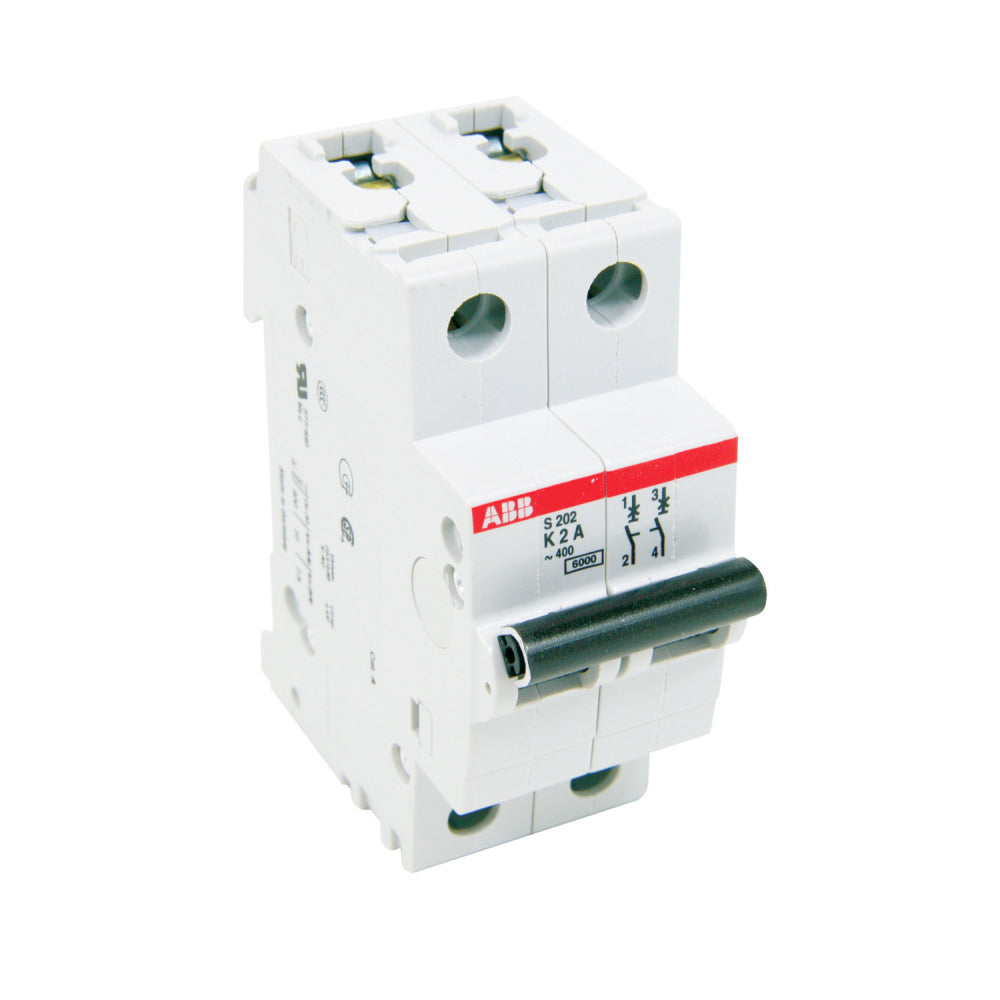

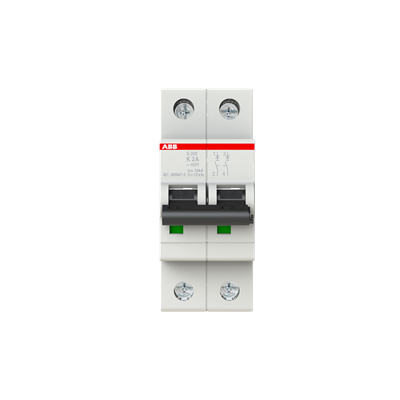

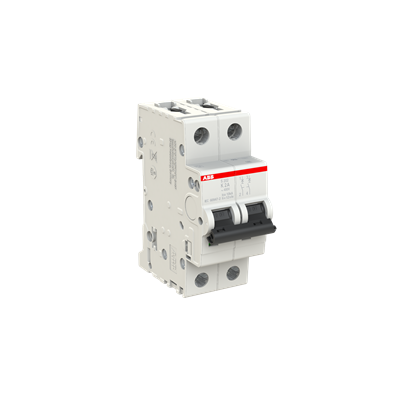

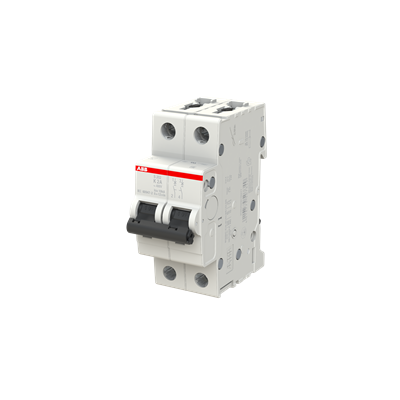

S202-K2 is a 2 pole, 2 amp, 480VAC miniature circuit breaker from ABB's S200 series, designed for reliable protection in commercial and industrial applications. This feed-thru style breaker features a K-type tripping characteristic, current limiting design, and is DIN rail mountable for easy installation. It provides protection against both overload and short circuit conditions, meeting IEC/EN 60947-2 and UL 1077 standards.
- Part Number: S202-K2
- Manufacturer: ABB
- Series: S200
- Number of Poles: 2
- Rated Current: 2 A
- Rated Voltage: 480 VAC
- Interrupt Rating: 6 kA @ 480VAC
- Mounting Type: DIN Rail
- Tripping Characteristic: K
- Standards: IEC/EN 60947-2, UL 1077
- Frame: Compact
- Application: Commercial, Industrial
Specifications
- Part Number: S202-K2
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : S 200 Series
- Type : S202-K
- Voltage : 480
- Amperage : 2
- Phase : 1
- Poles : 2
- AIC rating : 6kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 662019170930
- GTIN : 04016779507349
- Dimensions : Depth / Length 69 mm X Height 88 mm X Width 35 mm
- Weight : 0.22
- Certification : EN IEC UL
