Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
S201UDC-Z2

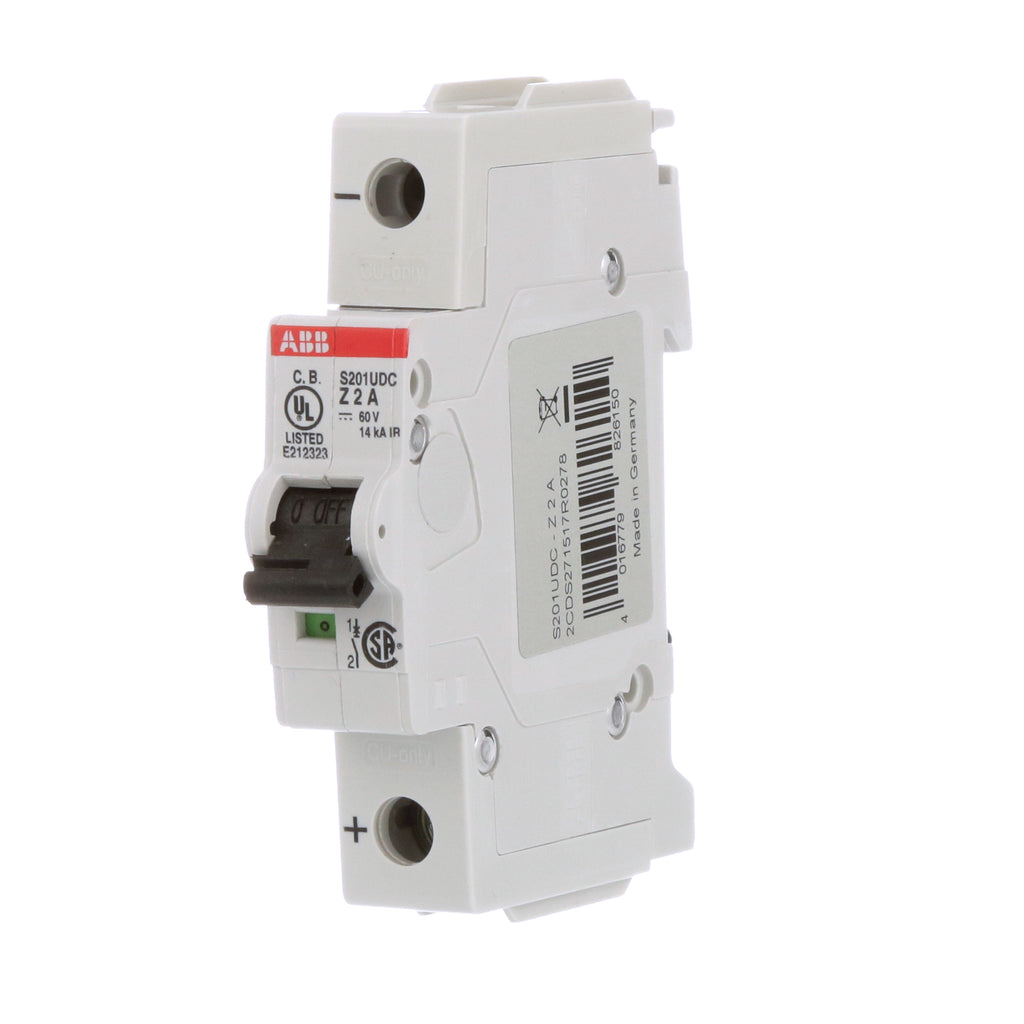

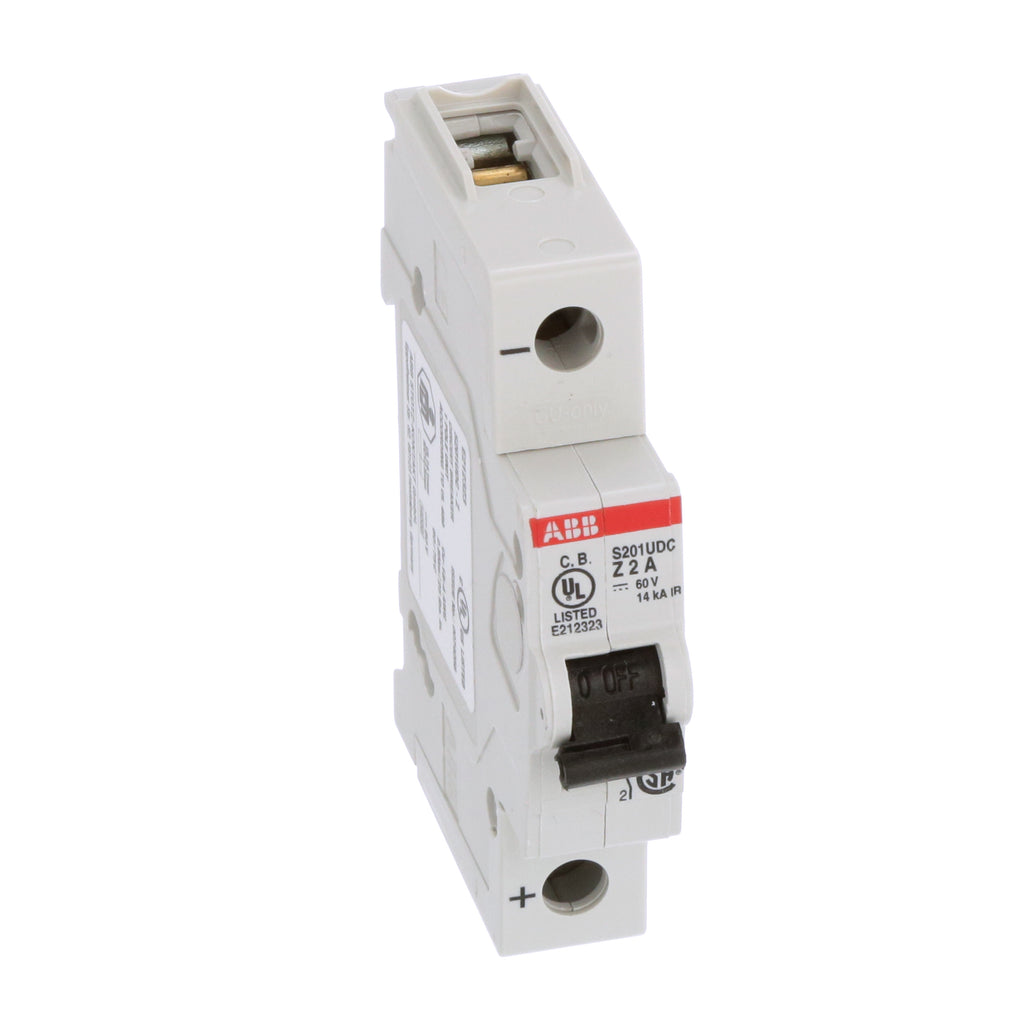

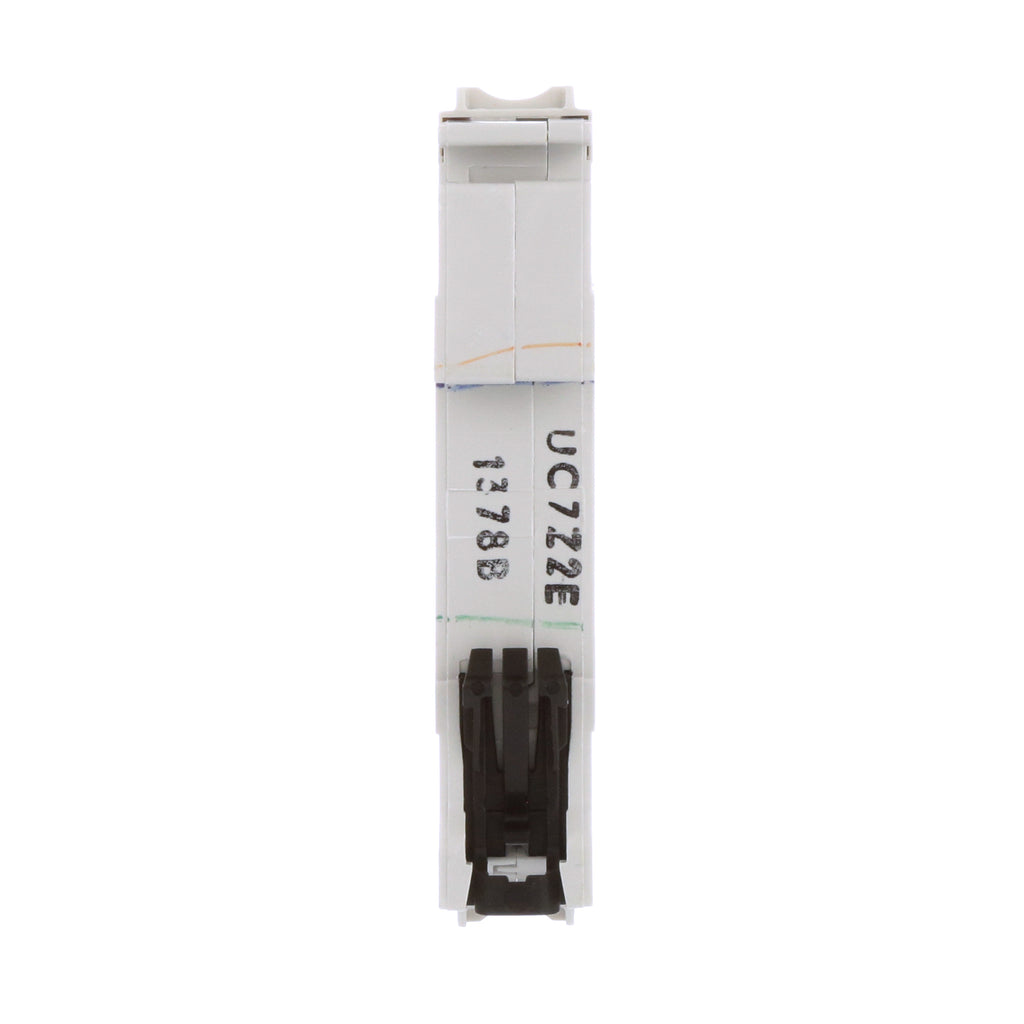

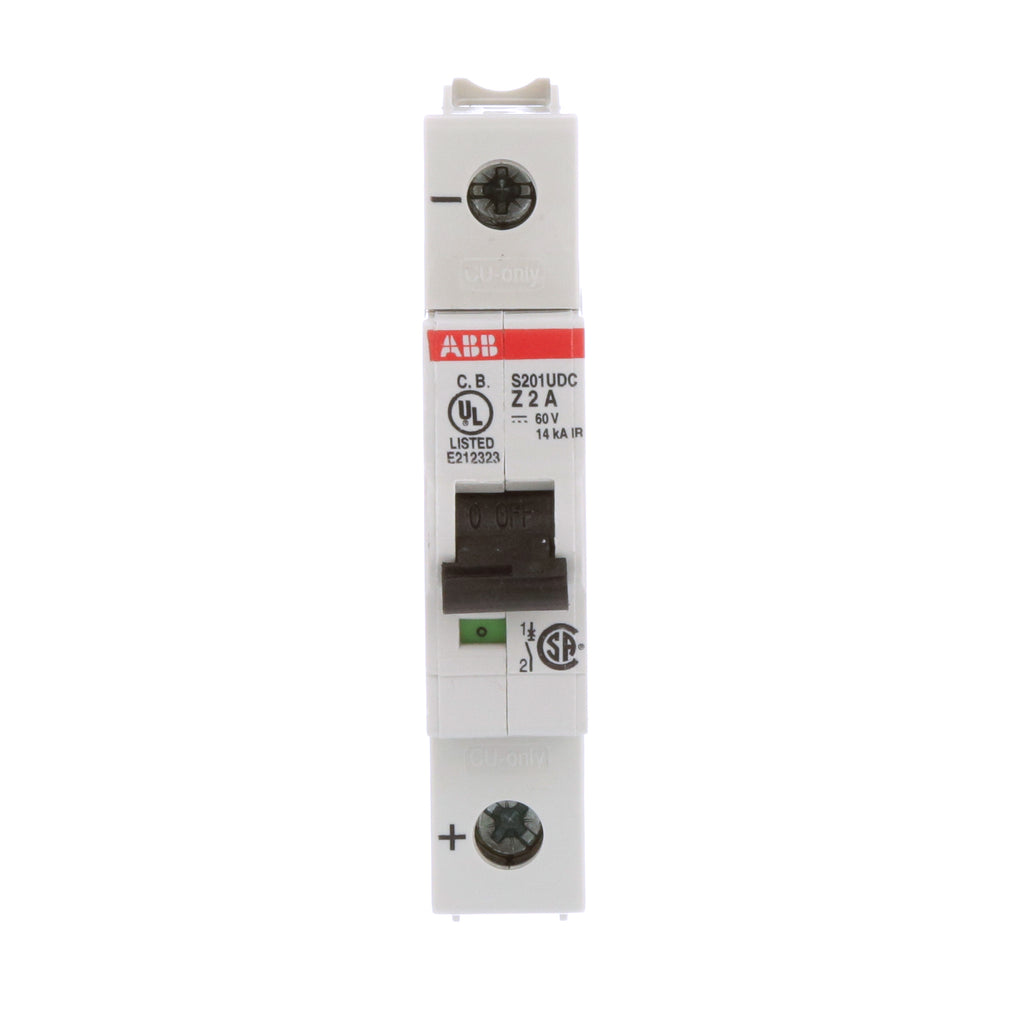

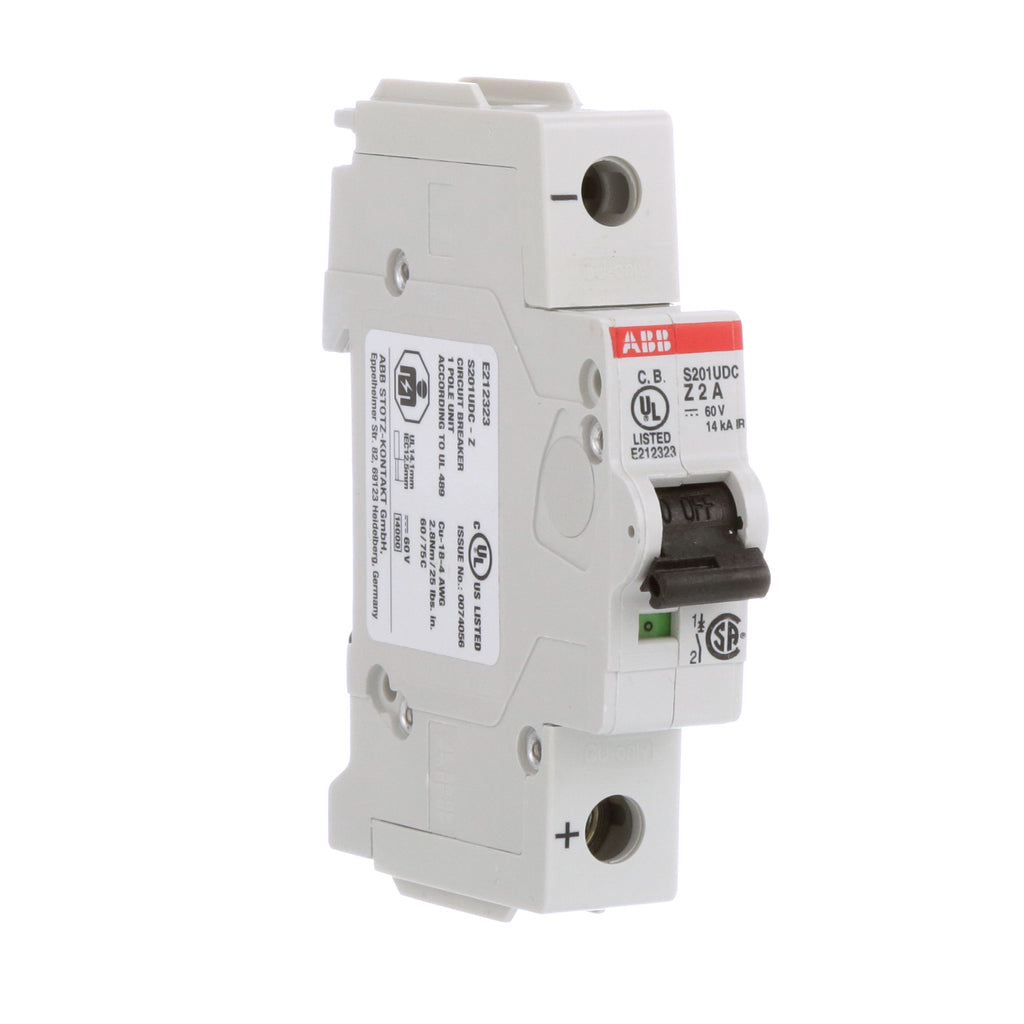

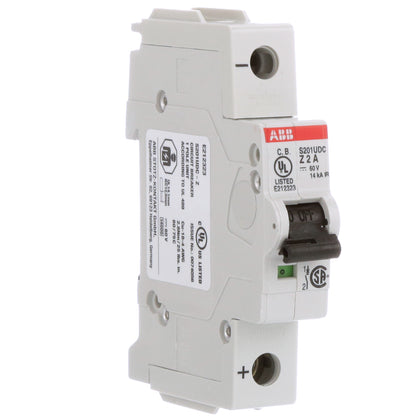

S201UDC-Z2 is a 2 amp, 1 pole miniature circuit breaker from ABB designed for DC applications up to 60 VDC with a Z trip curve.
This ABB S201UDC-Z2 breaker features a thermal-magnetic trip unit providing fast and reliable circuit protection with UL current limiting and a 14kA interrupt rating. It is UL 489 listed and DIN rail mounted, suitable for commercial and industrial use. The breaker supports busbar connection systems, finger safe terminals, and multi-function terminals, and is CE certified. It offers a compact design with a fast breaking time of 2.3 to 2.5 milliseconds and is part of the ABB S200 series known for robust performance and worldwide agency approvals.
- Key Specifications
- Rated Current: 2 Amps
- Voltage Rating: 60 V DC
- Poles: 1 Pole
- Trip Curve: Z
- Interrupt Rating: 14 kA (UL 489)
- Mounting Type: DIN Rail
- Trip Unit: Thermal-Magnetic
- Certifications: UL 489 Listed, CSA, IEC, CE Certified
- Fast Breaking Time: 2.3 - 2.5 ms
- Busbar Connection System
- Finger Safe Terminals
- Multi-function Terminals
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: S201UDC-Z2
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
Product Data
- UPC : 001677982615
- Dimensions : Depth / Length 69 mm X Height 85 mm X Width 17.5 mm
- Weight : 0.3
- Certification : UL
