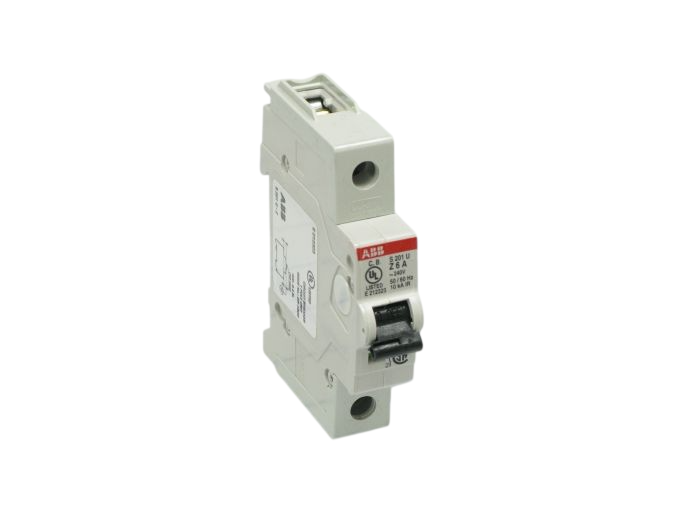

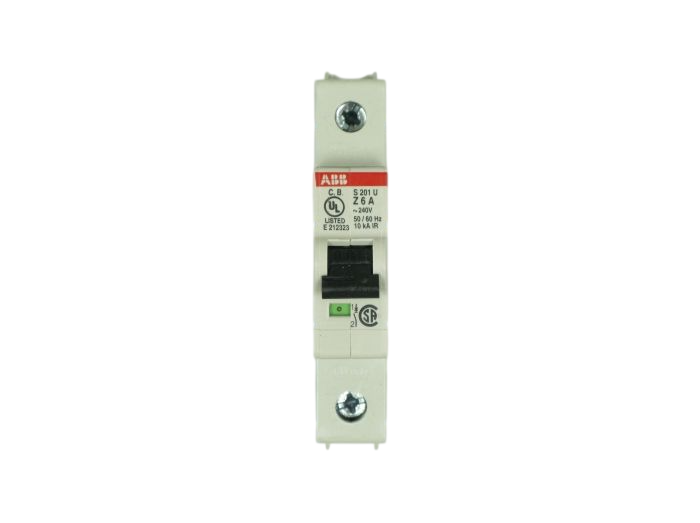

S201U-Z6 - ABB 6A 240V 1 Pole Feed-Thru Circuit Breaker 10kA UL 489

S201U-Z6

S201U-Z6 is a 6 amp, 240 Volt, 1 pole feed-thru circuit breaker manufactured by ABB designed for branch circuit protection.The S201U-Z6 features a 10kA interrupting rating at 240V AC and complies with UL 489 and CSA 22.2 No. 5 certifications. It uses a Z curve trip characteristic for maximum protection with a very low short circuit trip setting. This breaker is DIN rail mounted and current limiting, providing fast breaking times between 2.3 and 2.5 milliseconds.

Key Specifications
• Amperage: 6 A
• Voltage: 240 V AC
• Poles: 1
• Interrupt Rating: 10 kA at 240 V
• Trip Unit: Z curve
• Mounting Type: DIN rail
• Series/Frame: S201U-Z
• Certifications: UL 489, CSA 22.2 No. 5
• Current Limiting: Yes
• Breaking Time: 2.3 – 2.5 ms
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: S201U-Z6
• Manufacturer : ABB
• Brand : ABB
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : S 200 U Series
• Voltage : 240
• Amperage : 6
• Phase : 1
• Poles : 1
• AIC rating : 10kA@240V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic



Product Data

• Weight : 0.15
