Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description

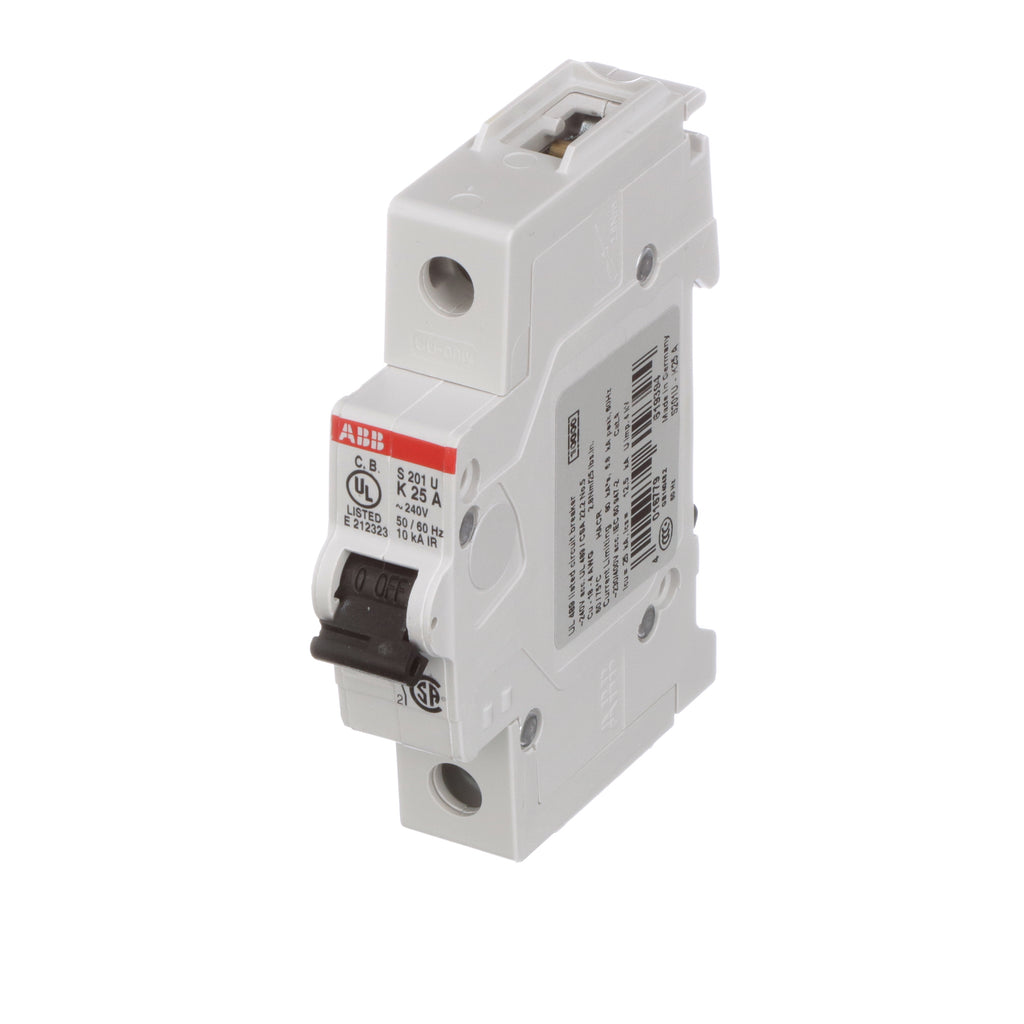

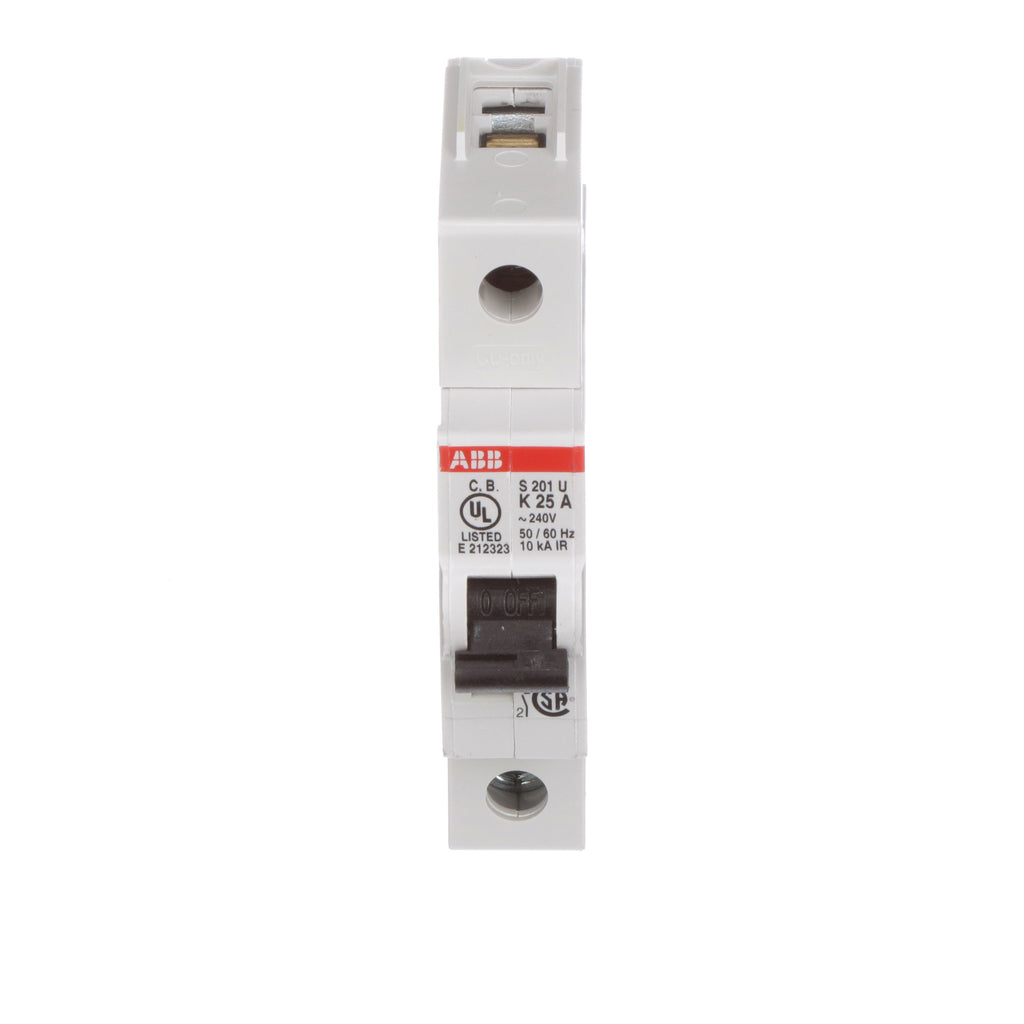

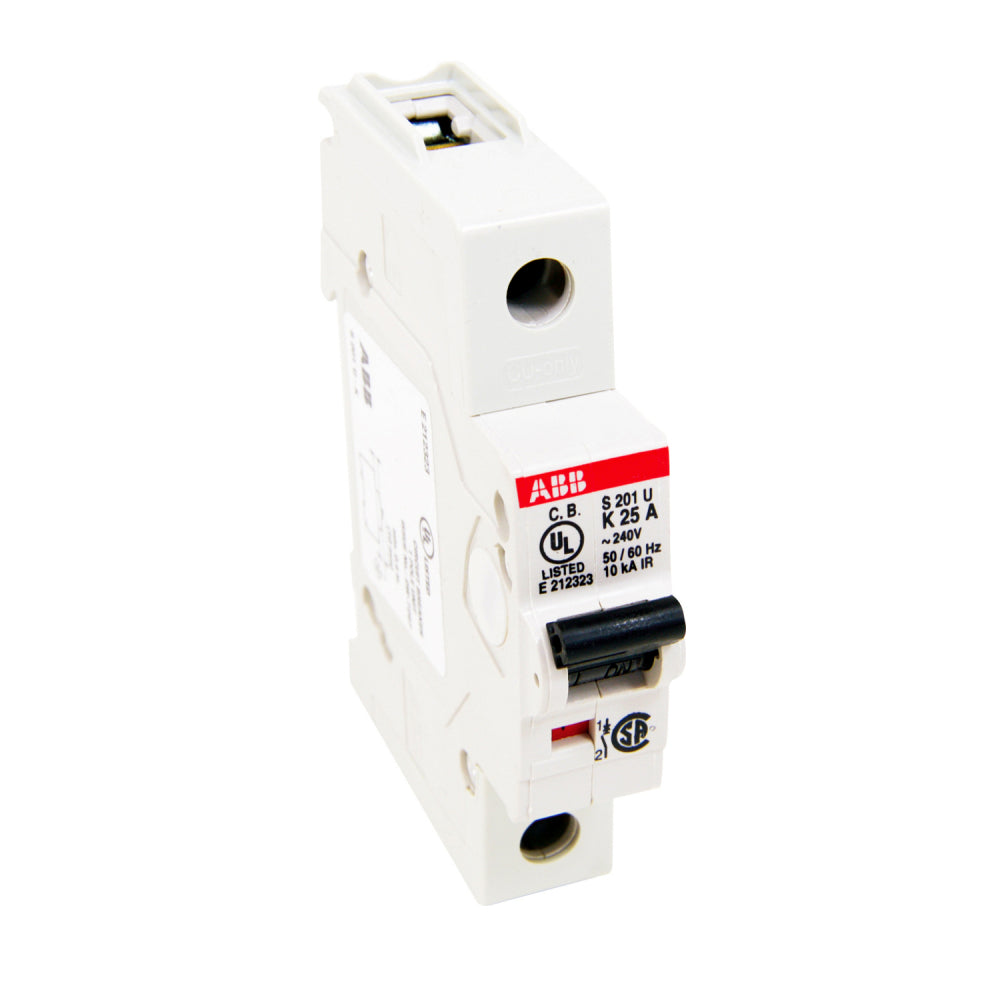

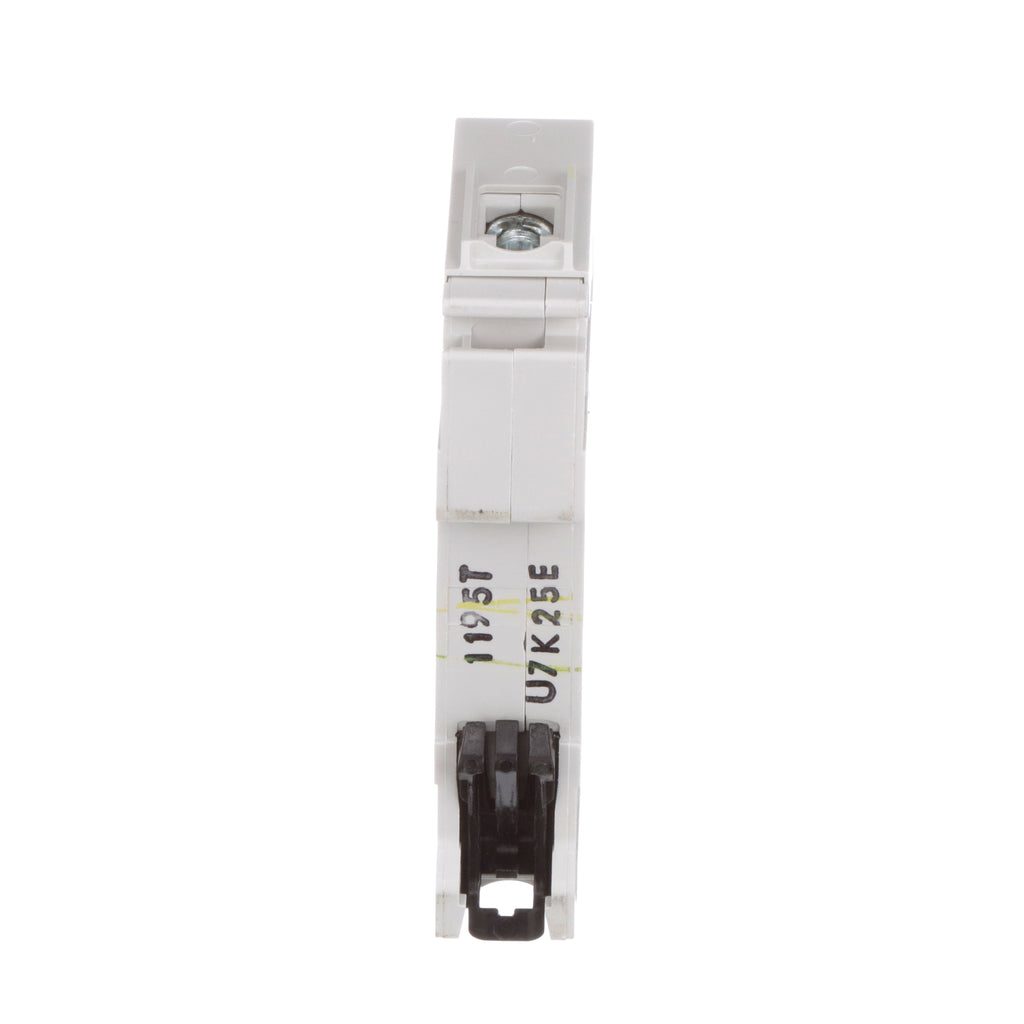

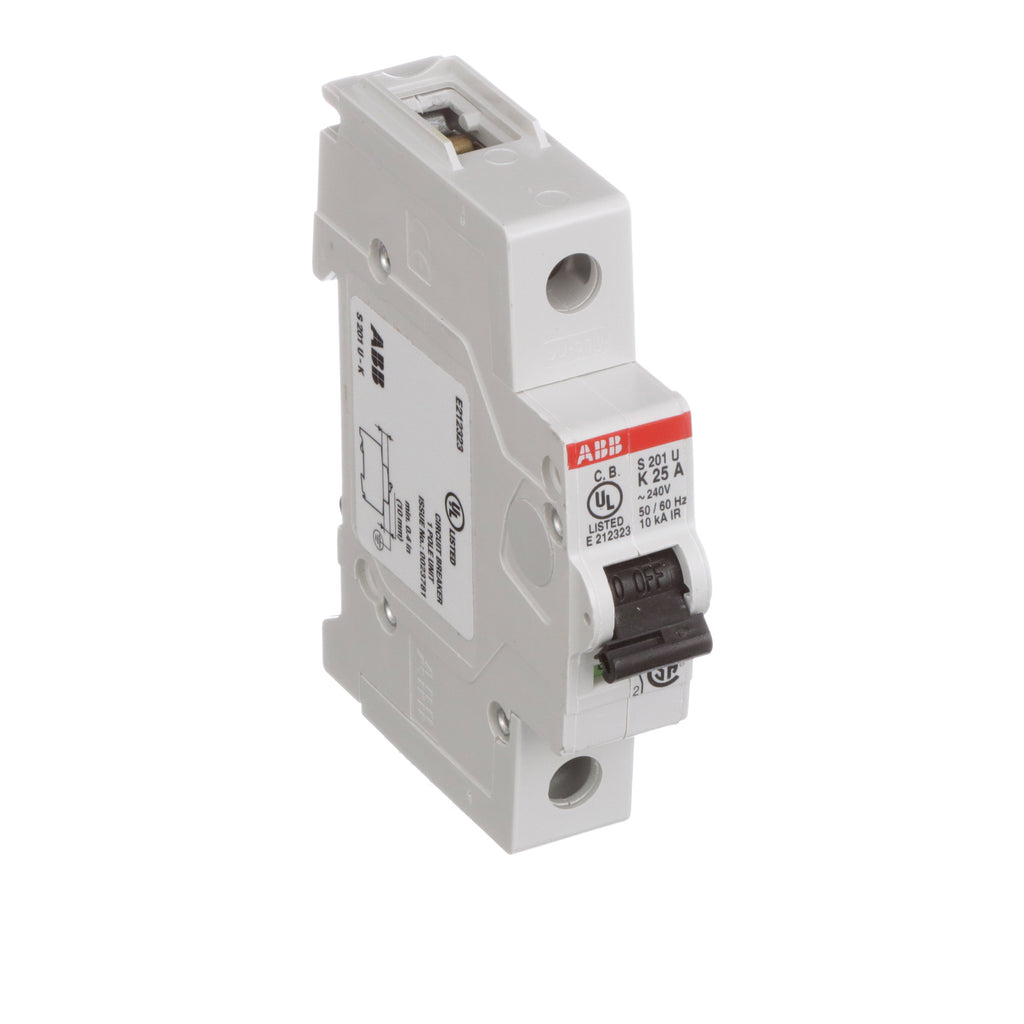

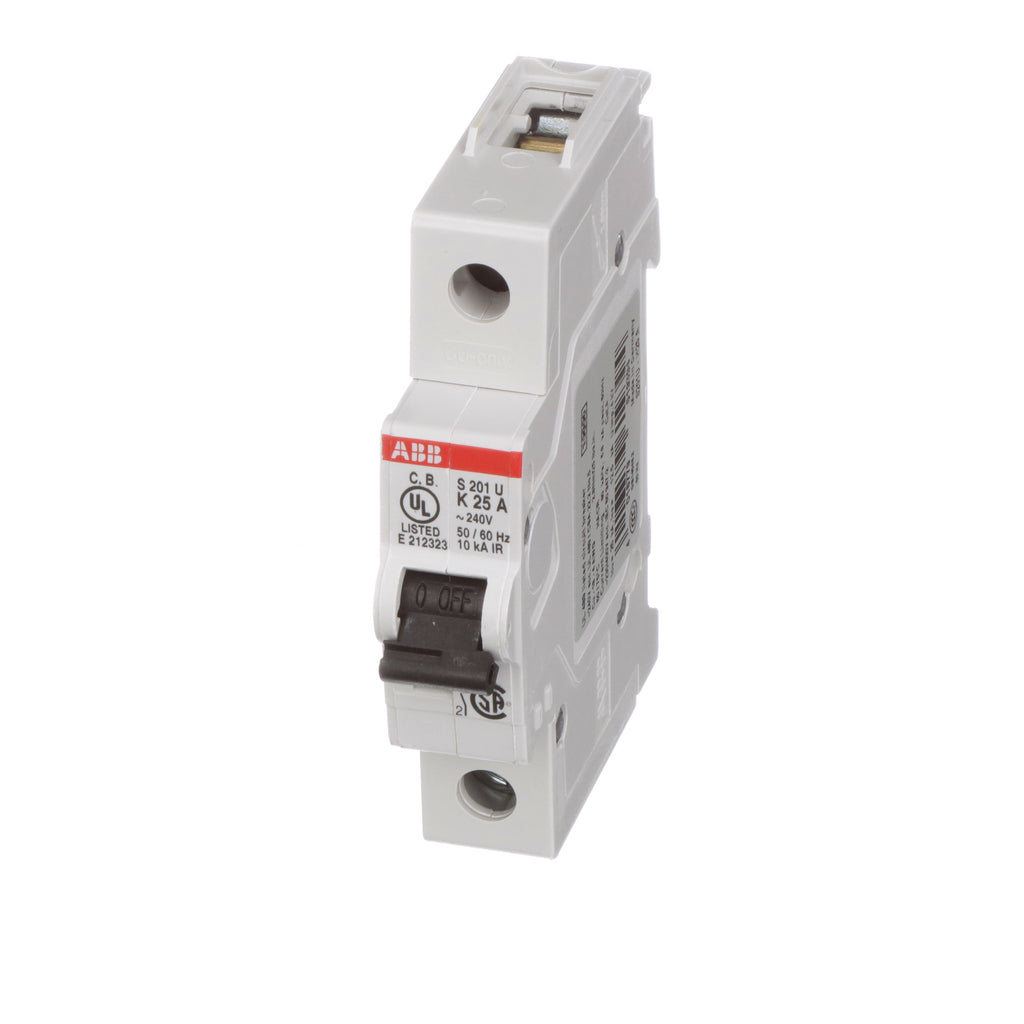

S201U-K25
S201U-K25 is a compact, high-performance miniature circuit breaker from ABB's S200 series, designed for reliable circuit protection in a variety of industrial and commercial applications. This breaker features a thermal magnetic trip unit and is suitable for both DIN rail and front panel mounting, providing flexibility for different installation requirements. The S201U-K25 offers fast breaking time, current limiting, and finger-safe terminals for enhanced safety. It is engineered for use with inductive loads and supports reverse feed applications, making it a versatile solution for demanding environments. The breaker is designed for AC use only and is compatible with a wide range of accessories.
- Amperage Rating: 25 A
- Voltage Rating: 240 VAC
- Number of Poles: 1
- Mounting Type: DIN rail or front panel
- Interrupt Rating: 10 kA
- Series/Frame: S200
- Trip Unit: Thermal Magnetic, K-Curve
- Enclosure Rating: IP20
- Operating Temperature: -25 to 55°C
- Conductor Size: 18 to 4 AWG
- Busbar Size: 18 to 8 AWG
- Agency Approvals: UL, CSA, IEC, CE
Specifications
- Part Number: S201U-K25
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : S 200 U Series
- Type : S201U-K
- Voltage : 240
- Amperage : 25
- Phase : 1
- Poles : 1
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 4016779507295
- Weight : 1.5
