Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
S201-K60

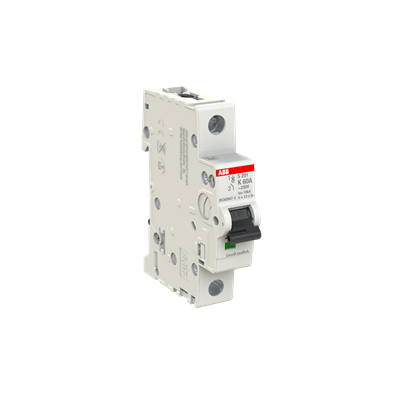

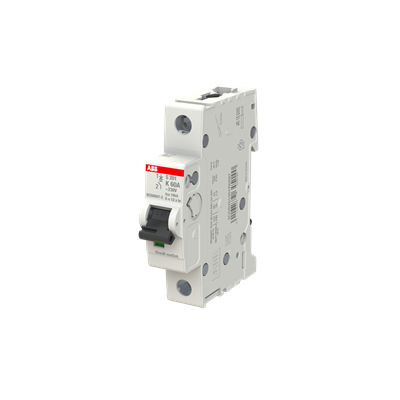

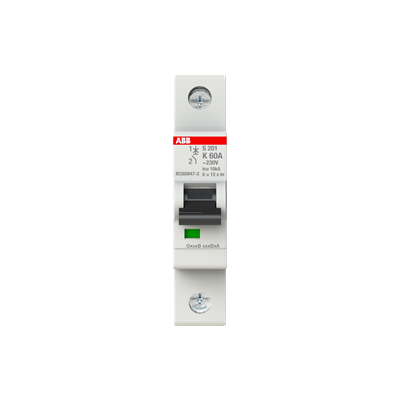

S201-K60 is a 1-pole, 60 amp miniature circuit breaker from ABB's S200 series designed for supplemental overcurrent protection in AC circuits up to 480Y/277 VAC.The S201-K60 features a K trip curve with thermal magnetic trip unit, suitable for industrial and commercial applications. It mounts on DIN rails and offers a 6 kA interrupt rating at 277 VAC. The breaker includes finger-safe screw terminals, line and load terminals, and complies with UL 1077, CSA 22.2, and IEC 60898/60947-2 standards.
- Key Specifications
- Amperage: 60 A
- Voltage Rating: 480Y/277 VAC, 125 VDC
- Poles: 1
- Trip Unit: Fixed Thermal / Fixed Magnetic (K-Curve)
- Interrupt Rating: 6 kA @ 277 VAC
- Mounting Type: DIN Rail
- Terminal Type: Screw, Finger Safe
- Standards: UL 1077, CSA 22.2 No. 235, IEC 60898, IEC 60947-2
- Approvals: UL, CSA
- Supplemental Protection Device
- Optional Accessories: Shunt Trip, Auxiliary Switch, Undervoltage Release
Specifications
- Part Number: S201-K60
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : S 200 Series
- Type : S201-K
- Voltage : 277
- Amperage : 60
- Phase : 1
- Poles : 1
- AIC rating : 6kA@277V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 01677964514
- GTIN : 04016779645140
- Weight : 2
