Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description

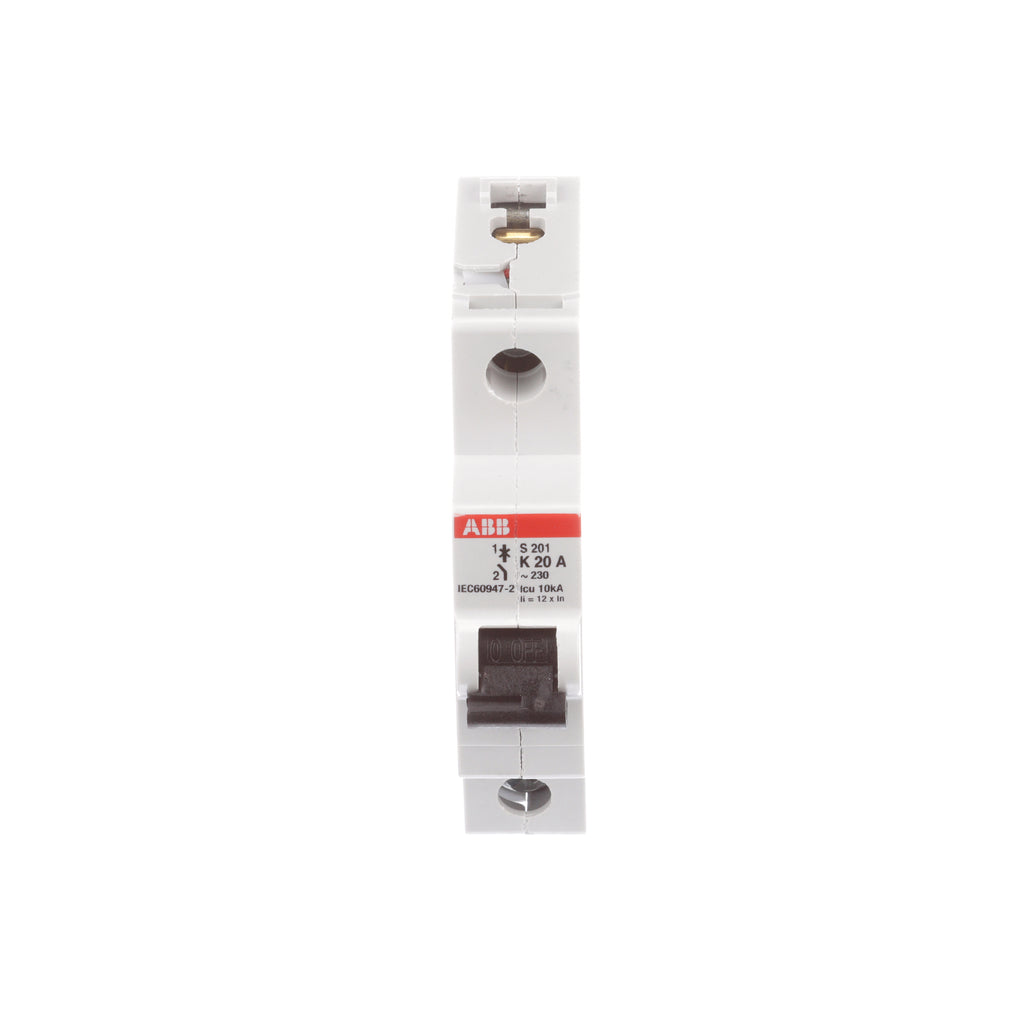

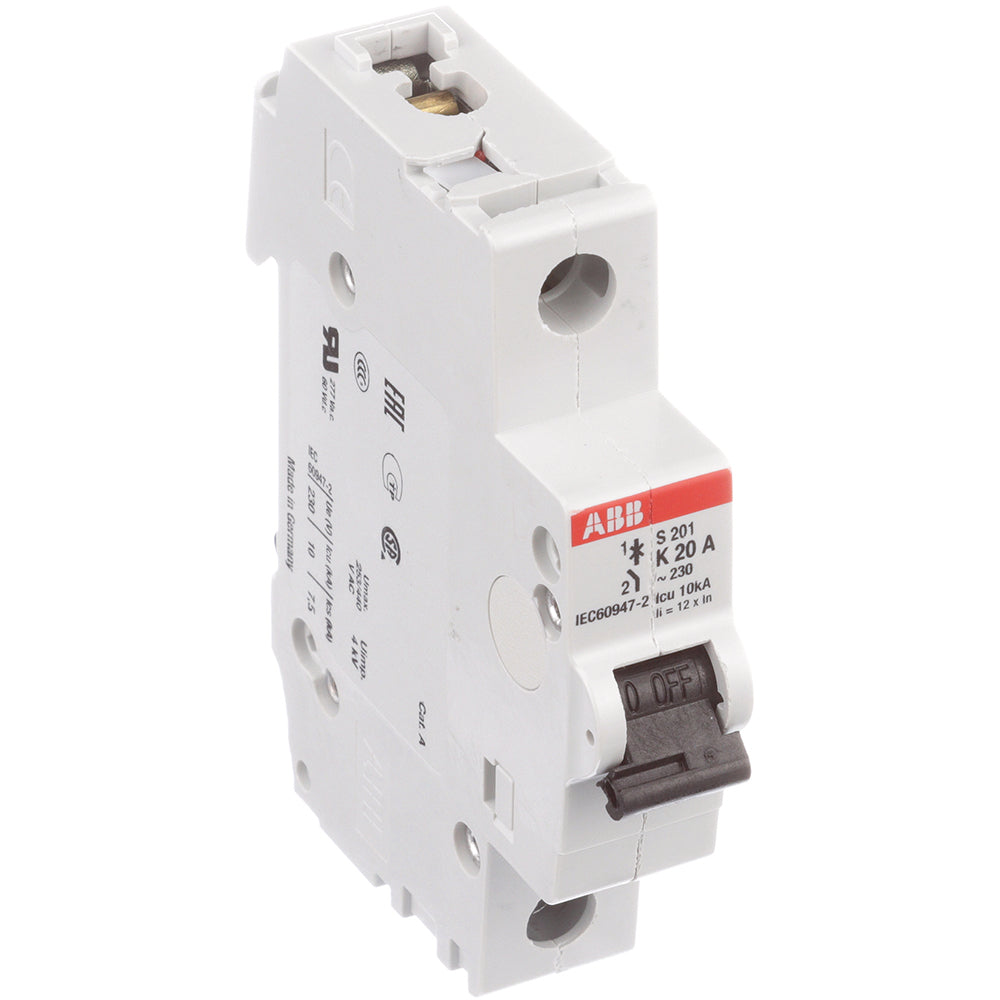

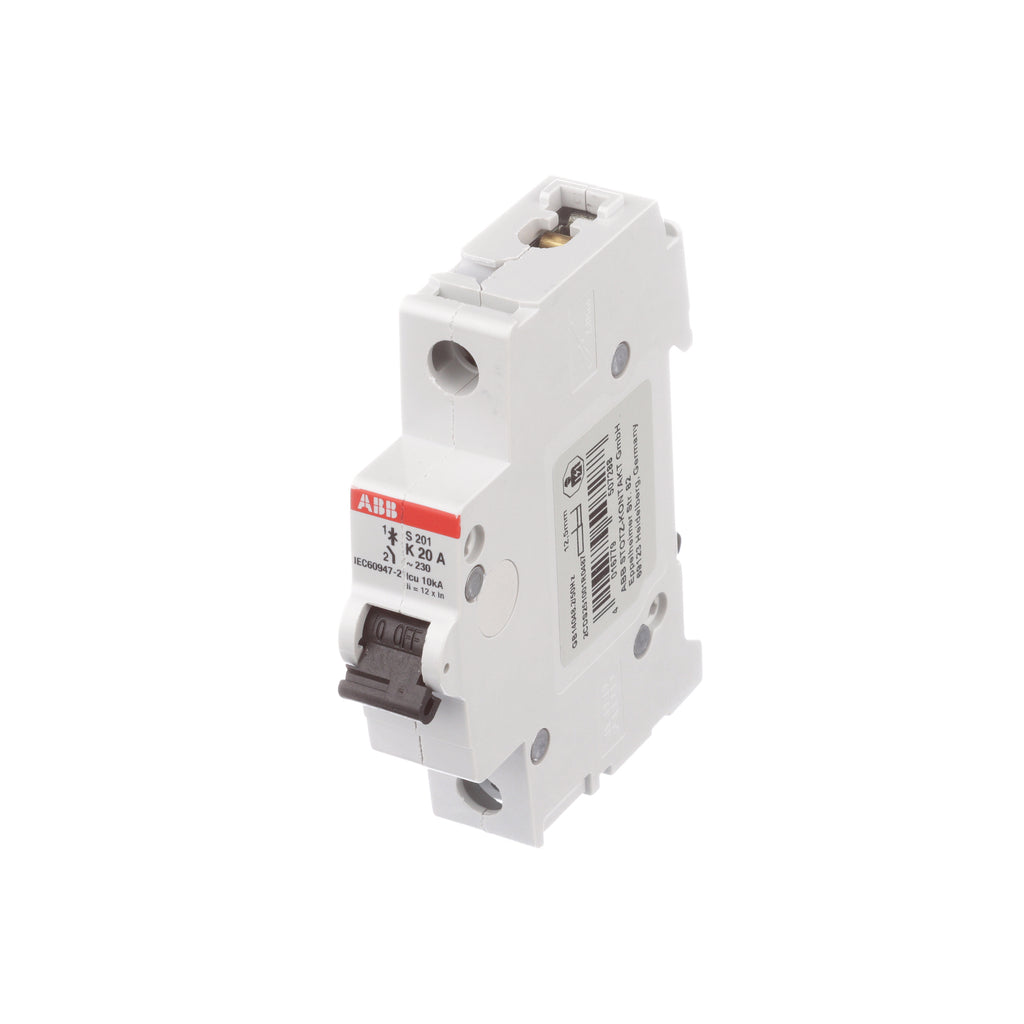

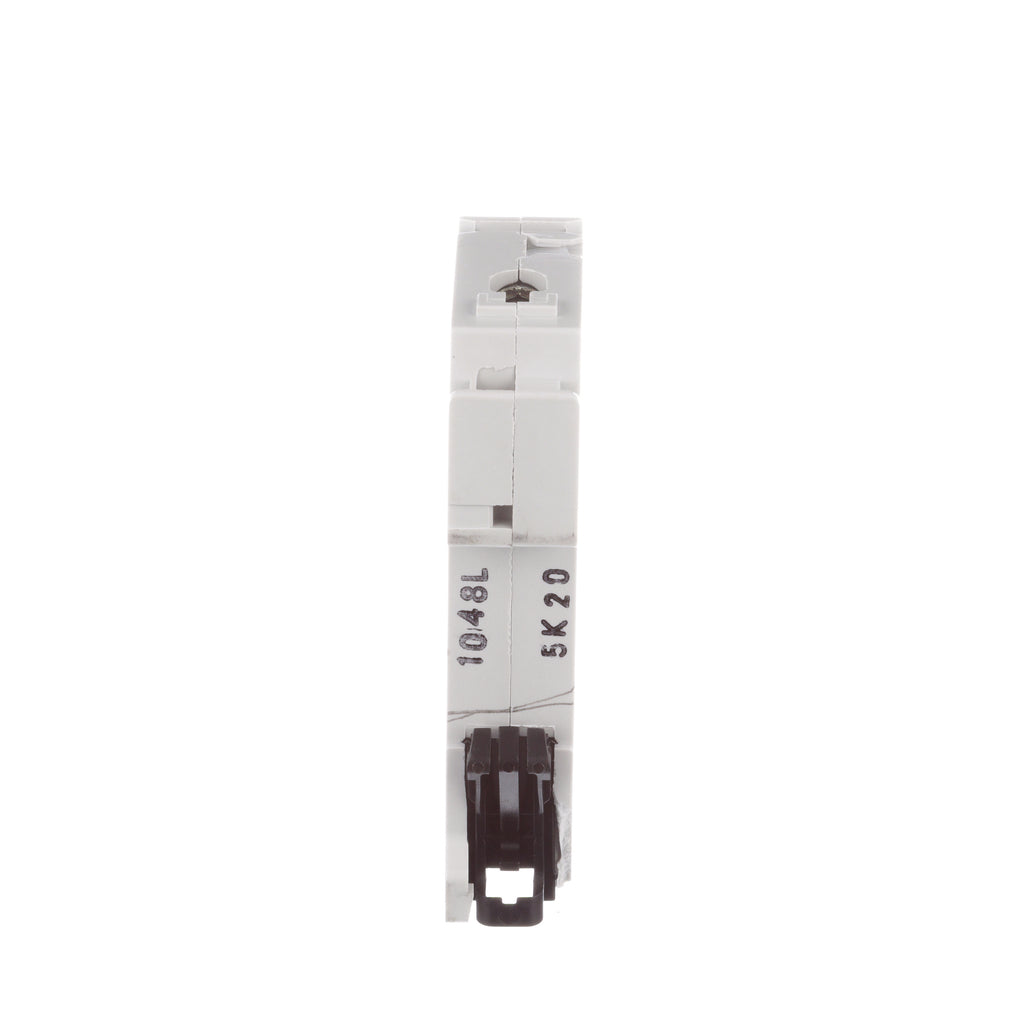

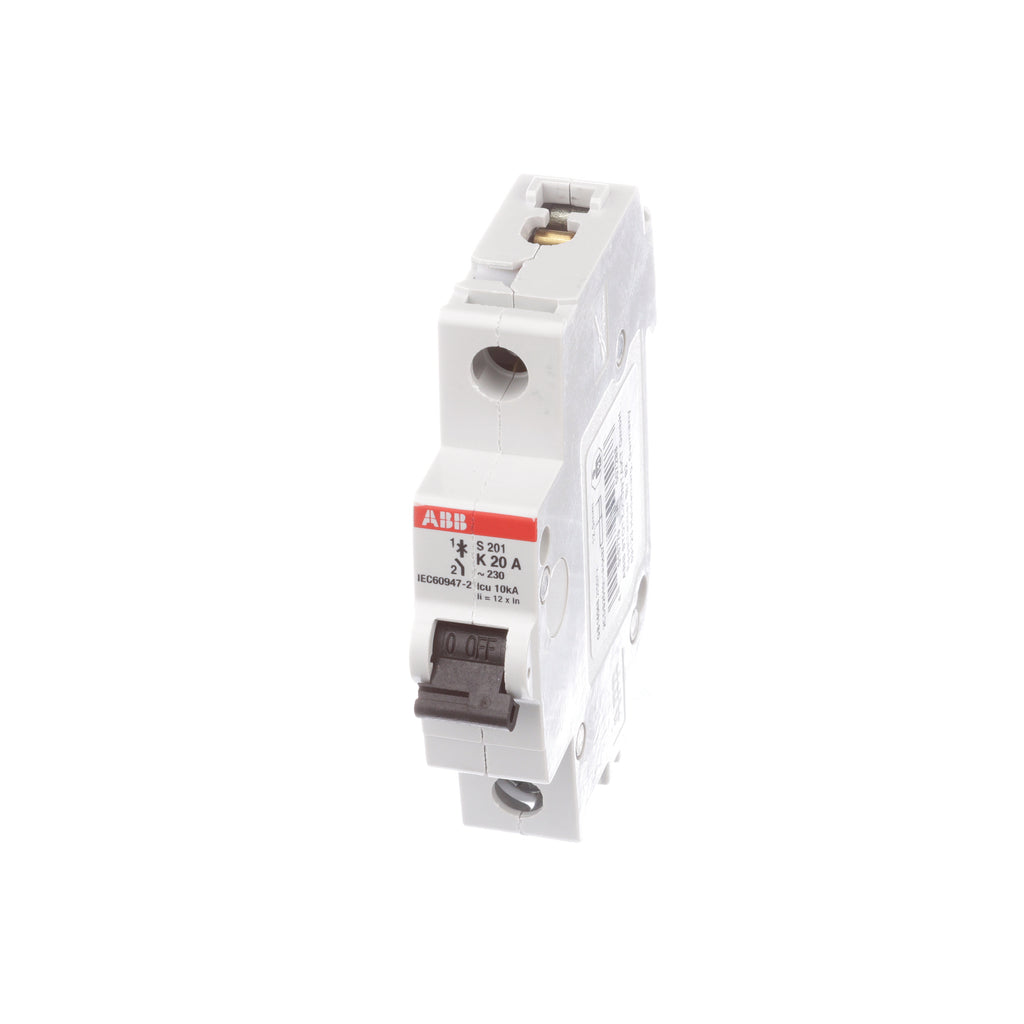

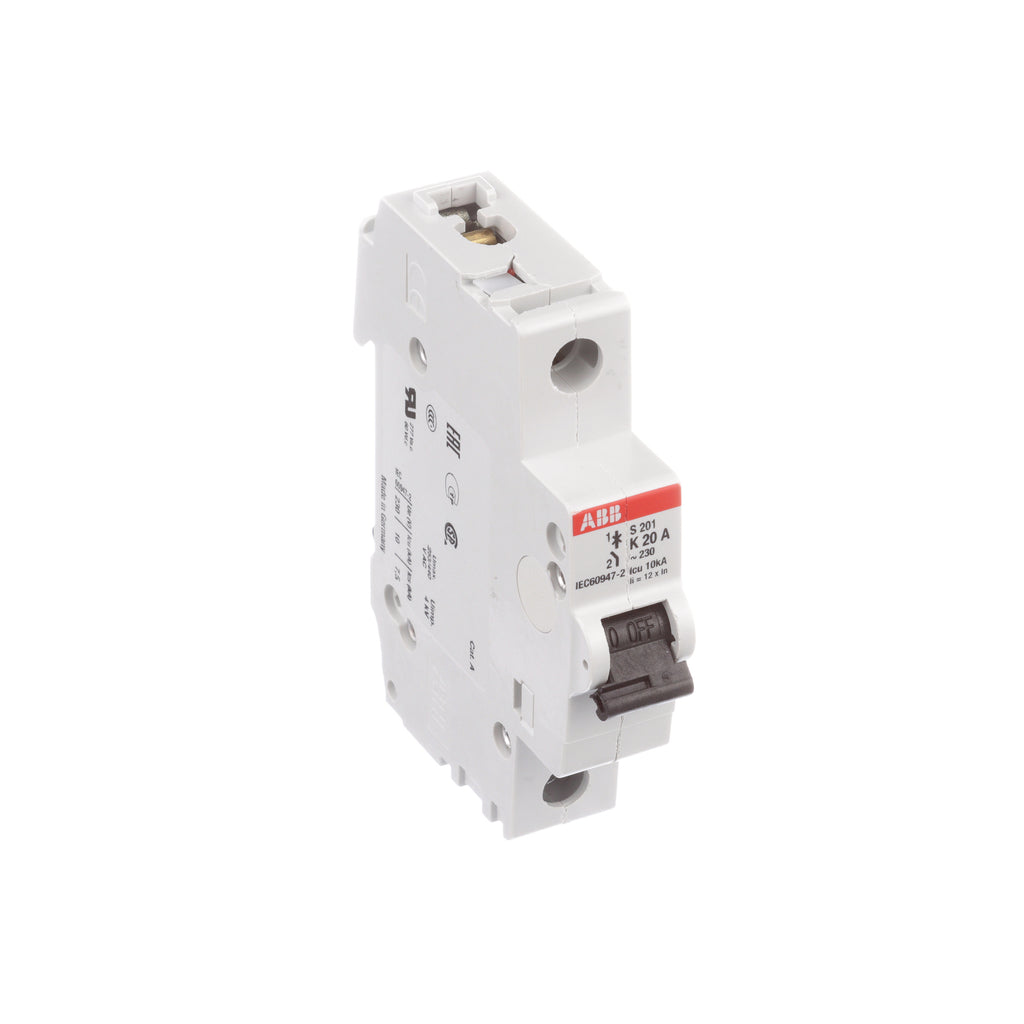

S201-K20
S201-K20 is a high-performance, current-limiting miniature circuit breaker from ABB, designed for reliable protection in residential, commercial, and industrial applications.
This 1-pole breaker features a thermal magnetic trip with K curve for precise overload and short-circuit protection, and is part of the System Pro M compact S200 series. It is DIN rail mounted, suitable for 277/480Y VAC systems, and complies with UL1077 standards for supplementary protection.
-
Key Specifications
- Amperage: 20A
- Voltage: 277/480Y VAC, 60/110 VDC
- Poles: 1
- Mounting Type: DIN Rail
- Interrupt Rating: 6 kA
- Series/Frame: System Pro M compact S200
- Trip Unit: Thermal magnetic, K curve
- Certifications: UL1077
- Wire Size: 18 to 4 AWG (AC), 18 to 8 AWG (DC)
- Frequency: 50/60 Hz
- Temperature Range: -25 to 55 deg C
- Dimensions: 69 mm L x 17.5 mm W x 88 mm H
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: S201-K20
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Voltage : 277
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 6kA@277V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 01677950728
- GTIN : 04016779507288
- Weight : 0.31
