Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
S201-K10

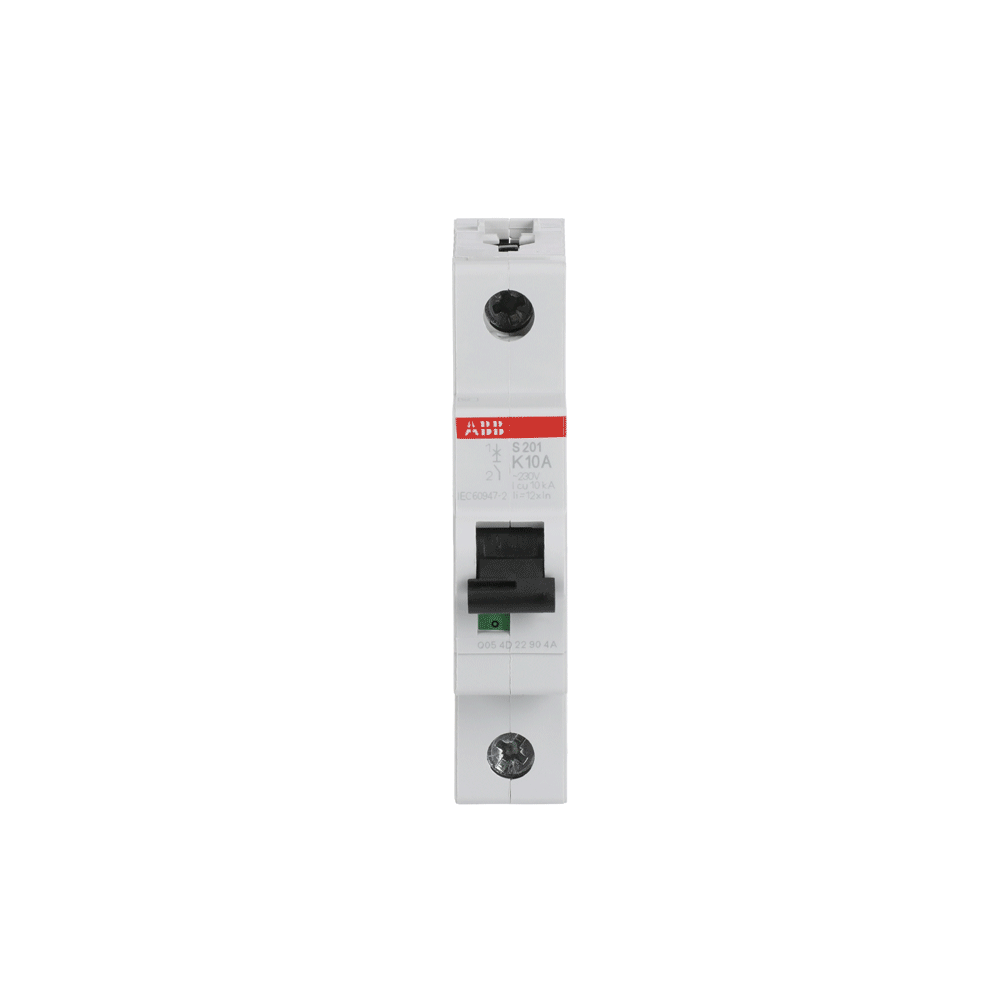

S201-K10 is a 10 Amp, 1 Pole miniature circuit breaker from ABB's S200 series designed for reliable circuit protection in residential, commercial, and industrial applications.The S201-K10 features a K-curve trip unit with thermal and electromechanical tripping mechanisms to protect against overloads and short circuits. It supports a maximum operational voltage of 480Y/277V AC and has a breaking capacity of 6 kA at 277V AC. The breaker mounts on a DIN rail and complies with IEC/EN 60898-1, IEC/EN 60947-2, UL 1077, and CSA 22.2 standards. It offers a compact design with a 17.5 mm width and is suitable for any mounting position.
- Key Specifications
- Amperage: 10 Amp
- Poles: 1 Pole
- Voltage Rating: 480Y/277V AC
- Interrupt Rating: 6 kA at 277V AC
- Series/Frame: S200
- Trip Unit: K-Curve (thermal and electromechanical)
- Mounting Type: DIN Rail
- Standards: IEC/EN 60898-1, IEC/EN 60947-2, UL 1077, CSA 22.2
- Operating Frequency: 50 Hz
- Operating Temperature Range: -25 to 55 °C
- Dimensions: 17.5 mm width, 69 mm depth, 88 mm height
Specifications
- Part Number: S201-K10
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : S 200 Series
- Type : S201-K
- Voltage : 277
- Amperage : 10
- Phase : 1
- Poles : 1
- AIC rating : 6kA@277V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 01677949611
- GTIN : 04016779496117
- Weight : 0.61 lb
