Description
539065R2

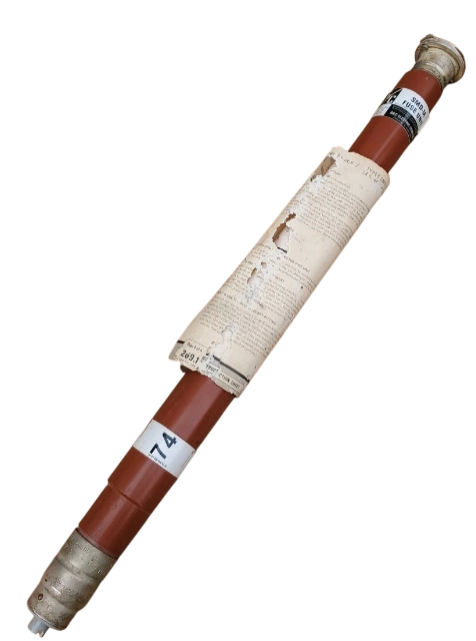

539065R2 is an S&C Electric SMD-1A power fuse rated 65 amperes at 138 kV nominal voltage, designed for outdoor transmission and distribution applications. This slow-acting fuse provides reliable overcurrent protection with fast, positive fault interruption through high-speed arc elongation in a solid-material-lined bore and efficient deionizing action of gases generated by thermal reaction. The fuse features a fusible element that melts under overcurrent conditions, triggering a strain wire severance that initiates arcing. A drive spring then accelerates the arcing rod upward, causing rapid arc elongation for effective fault clearing.
- Manufacturer: S&C Electric Company
- Part Number: 539065R2
- Fuse Type: SMD-1A
- Ampere Rating: 65E
- Voltage Rating: 138 kV nominal
- Operating Frequency: 60 Hz
- Characteristic: Slow-acting
- Application: Outdoor transmission and distribution
- Arc-extinguishing medium: Solid-material-lined bore with deionizing gas generation
Specifications
- Part Number: 539065R2
- Manufacturer : S&C Electric
- Brand : S&C Electric
- Category : Fuse
- Item Subcategory : High Voltage
- Type : SMD-1A
- Voltage : 138000
- Amperage : 65
- Class Rating : SMD-1A
- Velocity : Slow
Product Data
- Weight : 30
