Product Info
- Manufacturer:S&C Electric
- Sub-Category:High Voltage
Description
486300R2

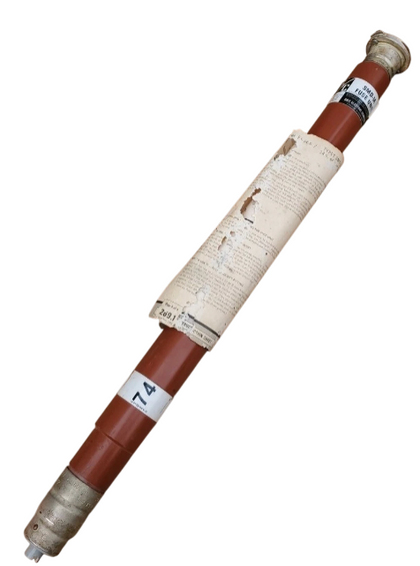

486300R2 is a S&C Electric SMD-2B Slow Speed Power Fuse rated for 300E amperes and 69 kV nominal voltage.This fuse is designed for outdoor transmission applications, providing fast and positive fault interruption through high-speed arc elongation and efficient deionizing action. It features a galvanized steel base mounting and is suitable for use in systems requiring a maximum continuous current of 300E amperes and an interrupting rating aligned with 69 kV class equipment. The slow speed characteristic allows coordination with protective relays and circuit reclosers for optimal system protection.
- Type: SMD-2B Power Fuse
- Amperage: 300E RMS symmetrical
- Voltage Rating: 69 kV nominal
- Speed: Slow
- Mounting: Galvanized steel base
- Interrupting Rating: Suitable for 69 kV systems
- Application: Outdoor transmission protection
- Arc-extinguishing: Solid-material-lined bore with arc elongation
- Manufacturer: S&C Electric
Specifications
- Part Number: 486300R2
- Manufacturer : S&C Electric
- Brand : S&C Electric
- Category : Fuse
- Item Subcategory : High Voltage
- Type : SMD-2B
- Voltage : 69000
- Amperage : 300
- Class Rating : SMD-2B
- Velocity : Slow
Product Data
- Weight : 19
