RT1G - General Electric 1-1.5A 3-Pole Thermal Overload Relay, Class 10 Trip, Manual/Auto Reset, Phase Loss Protection, Direct Mount for CL00-CL45 Contactors

SKU: RT1G-ReCert
Condition: Re-Certified
Price:
$240.71
Stock:
Low inventory, please call for stock check

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

RT1G - General Electric 1-1.5A 3-Pole Thermal Overload Relay, Class 10 Trip, Manual/Auto Reset, Phase Loss Protection, Direct Mount for CL00-CL45 Contactors - Essential Electric Supply
RT1G - General Electric 1-1.5A 3-Pole Thermal Overload Relay, Class 10 Trip, Manual/Auto Reset, Phase Loss Protection, Direct Mount for CL00-CL45 Contactors - Essential Electric Supply
RT1G - General Electric 1-1.5A 3-Pole Thermal Overload Relay, Class 10 Trip, Manual/Auto Reset, Phase Loss Protection, Direct Mount for CL00-CL45 Contactors - Essential Electric Supply
RT1G - General Electric 1-1.5A 3-Pole Thermal Overload Relay, Class 10 Trip, Manual/Auto Reset, Phase Loss Protection, Direct Mount for CL00-CL45 Contactors - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
RT1G - General Electric 1-1.5A 3-Pole Thermal Overload Relay, Class 10 Trip, Manual/Auto Reset, Phase Loss Protection, Direct Mount for CL00-CL45 Contactors - Essential Electric Supply
RT1G - General Electric 1-1.5A 3-Pole Thermal Overload Relay, Class 10 Trip, Manual/Auto Reset, Phase Loss Protection, Direct Mount for CL00-CL45 Contactors - Essential Electric Supply
RT1G - General Electric 1-1.5A 3-Pole Thermal Overload Relay, Class 10 Trip, Manual/Auto Reset, Phase Loss Protection, Direct Mount for CL00-CL45 Contactors - Essential Electric Supply
RT1G - General Electric 1-1.5A 3-Pole Thermal Overload Relay, Class 10 Trip, Manual/Auto Reset, Phase Loss Protection, Direct Mount for CL00-CL45 Contactors - Essential Electric Supply

Description

RT1G

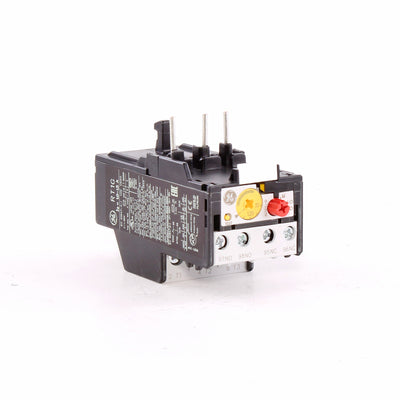

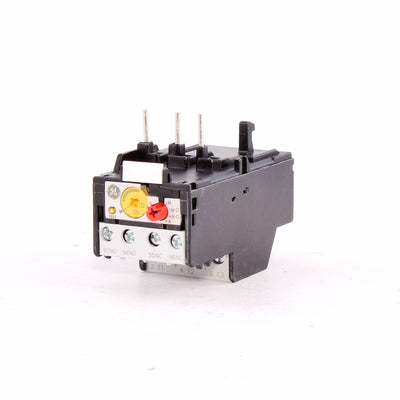

RT1G is a General Electric 3-pole thermal overload relay designed for motor control applications, offering adjustable protection and reliable performance.

This overload relay features an adjustable current range of 1 to 1.5A, Class 10 tripping (10 seconds or less), and both manual and automatic reset options. It provides phase loss sensitivity to protect motors from damage due to unbalanced phases. The RT1G mounts directly to GE CL00, CL01, CL02, CL25, CL04, or CL45 3-pole contactors and includes 1 normally open (N.O.) and 1 normally closed (N.C.) base-mounted auxiliary contact. Its compact design is suitable for a variety of industrial motor control setups.

    Key Specifications
  • Amperage: Adjustable 1.0–1.5A
  • Voltage: Control circuit up to 690V AC
  • Poles: 3
  • Mounting Type: Direct mount to CL00-CL45 contactors; optional DIN rail via RTXP bracket
  • Interrupt Rating: Not specified in available sources
  • Series/Frame: RT Series, for CL00-CL45 frames
  • Trip Unit: Class 10 thermal-magnetic, 10 seconds or less
  • Certifications: Not specified in available sources
  • Auxiliary Contacts: 1 N.O., 1 N.C. (base mounted)
  • Reset: Manual or automatic
  • Phase Loss Protection: Yes
  • Application: Motor overload and phase loss protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

  • Part Number: RT1G
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Motor Control
  • Item Subcategory : Overload Relay
  • Relay Style : Thermal
  • Amperage Maximum : 1.5
  • Amperage Minimum : 1
  • Compatible Frames : AK,AKR

Product Data

  • UPC : 017018137048
  • GTIN : 785901587392
  • Weight : 1.32 lb
