RM60600-3CR - Eaton 600A 600V 3 Pole Class R Fuse Block RM60 Frame

RM60600-3CR

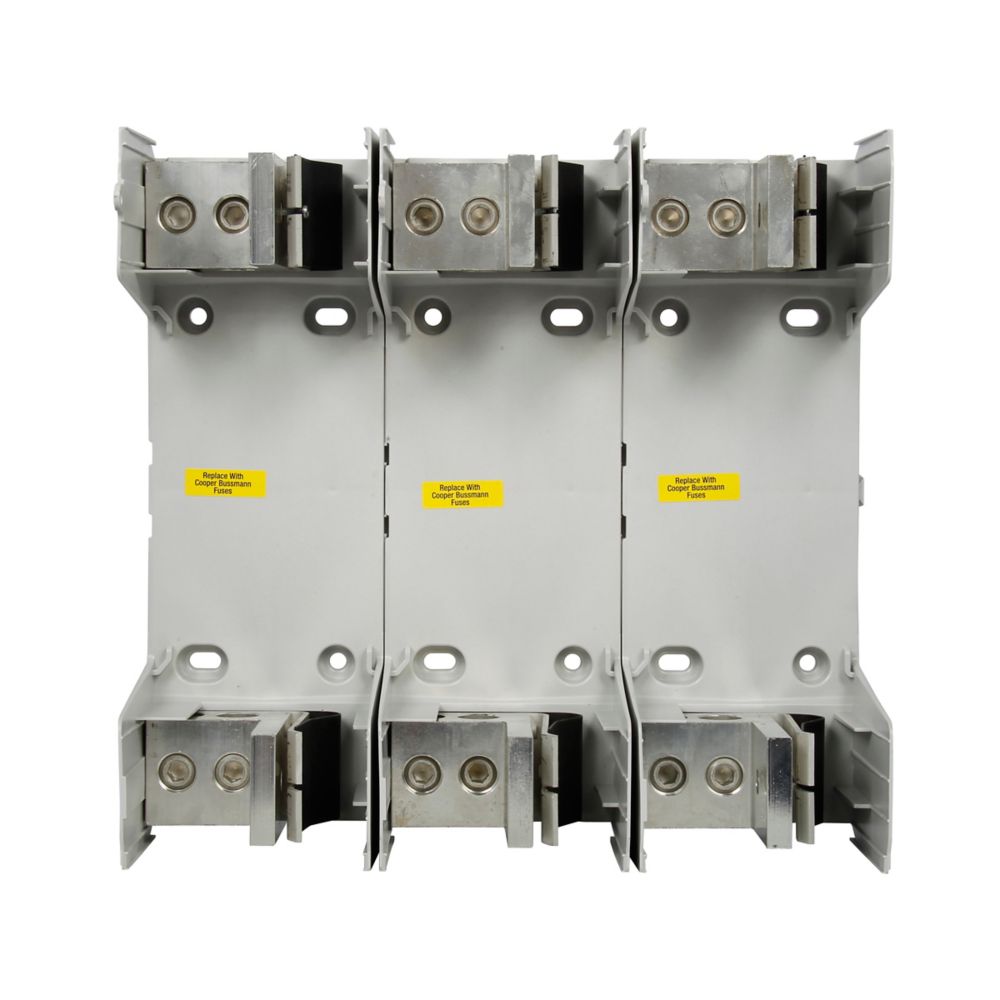

RM60600-3CR is a 3 pole fuse block from Eaton designed for Class R fuses with a current rating of 600 amps and voltage rating of 600 volts AC.This Eaton Bussmann Series RM modular fuse block features a knife blade end-to-end connection, supports 450-600 amps, and is built on the RM60 frame. It is suitable for panel mounting with solder lug termination and is rated for 600 volts AC and 300 volts DC. The fuse block is spring reinforced and designed for UL Class R fuses, providing reliable circuit protection.

• Current Rating: 600 Amps
• Voltage Rating: 600 Volts AC, 300 Volts DC
• Number of Poles: 3
• Fuse Type: Class R Cartridge
• Mounting Type: Panel Mount
• Termination Style: Solder Lug
• Frame Type: RM60
• Connection: Knife Blade End x Knife Blade End
• UL Listed for Class R Fuses
• Spring Reinforced Construction
• Box Side Clip for Al/Cu 1000 - 250 kcmil

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: RM60600-3CR
• Manufacturer : Eaton
• Brand : Eaton
• Category : Fuse
• Type : RM
• Voltage : 600VAC, 300VDC
• Amperage : 450-600
• Poles : 3
• Connection : Knife Blade End x Knife Blade End
• Circuit Breaker Mounting Style : Bolt-Down, Din Rail
• Compatible Frames : RK1, RK5 Fuse

Product Data

• UPC : 51712391085
• GTIN : 00051712391085
• Country of Origin : Mexico
• Dimensions : 14.25 in x 6 in x 14.75 in (Length/Depth x Height x Width)
• Weight : 12.48
• Certification : CSA Certified, UL Listed
