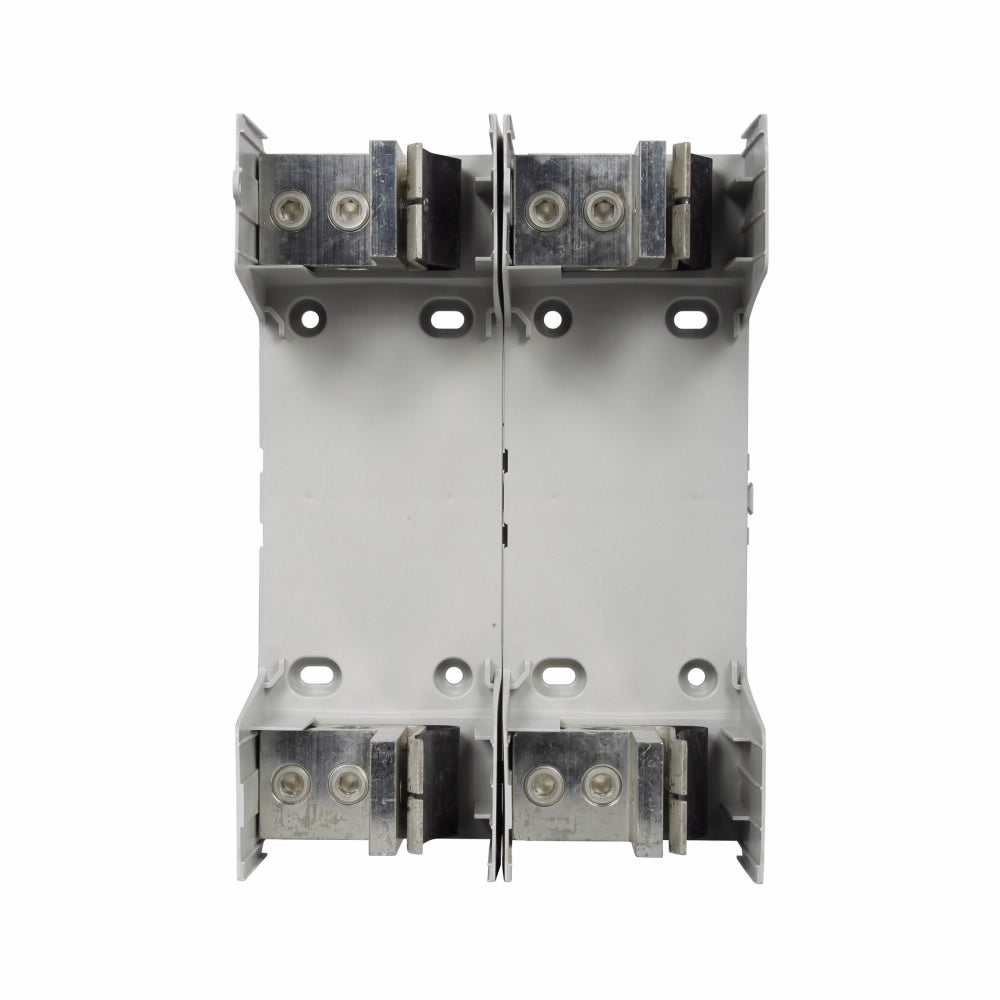

RM60600-2CR - Eaton 600A 600V 2 Pole RM60 Frame Modular Fuse Block Class R

RM60600-2CR

RM60600-2CR is an Eaton Bussmann Series RM modular fuse block designed for high-current protection applications.This 2 pole fuse block supports 450-600 amps current rating and 600 volts AC voltage rating. It features a Class R fuse type with knife blade end connections and is built on the RM60 frame. The fuse block is panel mountable and suitable for UL Class R fuses, providing reliable circuit protection with a spring reinforced design and box side clips for aluminum or copper conductors from 1000 to 250 kcmil.

Key Specifications
• Manufacturer: Eaton
• Part Number: RM60600-2CR
• Current Rating: 450-600 Amps
• Voltage Rating: 600 VAC
• Number of Poles: 2 Pole
• Fuse Type: Class R
• Frame Type: RM60
• Mounting Type: Panel Mount
• Connection Type: Knife Blade End x Knife Blade End
• Conductor Compatibility: Aluminum/Copper 1000-250 kcmil
• Certifications: UL Listed for Class R fuses
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: RM60600-2CR
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Fuseholders & Fuseblocks
• Section : Modular fuse block
• Type : RM
• Voltage : 600VAC
• Amperage : 450-600
• Poles : 2
• Connection : Knife Blade End X Knife Blade End
• Temp Rating : -13-158 ¡F (-25-70 ¡C)
• Circuit Breaker Mounting Style : Hole, Panel
• Compatible Frames : Low-Peak LPS-RK-SP, LPS-RK-SPI Series Time Delay, FRS-R, KTS-R, KWS-R, PVS-R Series Fuse



Product Data

• UPC : 051712391078
• GTIN : 051712391078
• Dimensions : 9.75 in x 6 in x 14.3 in (Length/Depth x Height x Width)
• Weight : 8.36
• Temp Rating : -13-158 ¡F (-25-70 ¡C)
• Certification : UL, CSA, CE
