Product Info
- Manufacturer:Bussmann, Cooper Bussmann, Eaton
Description
RM25600-3CR

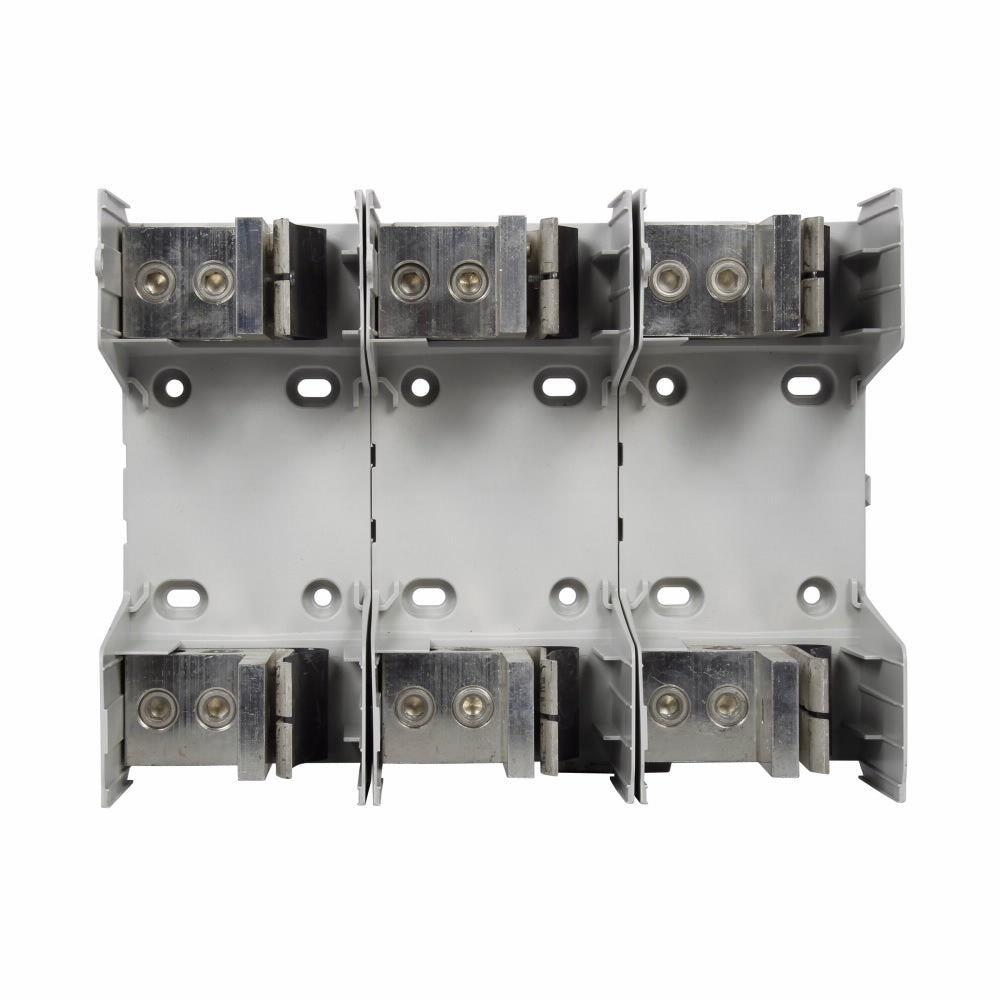

RM25600-3CR is a Eaton Bussmann Series RM modular fuse block designed for 600 amps and 250 volts AC, featuring a 3 pole configuration and Class R fuse compatibility.This fuse block is part of the RM25 frame series, offering a knife blade end to knife blade end connection. It supports a current range of 450-600 amps and is rated for 250 volts AC/DC. The unit is spring reinforced with a box side clip suitable for aluminum and copper conductors from 1000 to 250 kcmil. It is designed for panel mounting and provides reliable circuit protection with a 3 pole setup.
- Manufacturer: Eaton
- Part Number: RM25600-3CR
- Current Rating: 600 Amps
- Voltage Rating: 250 Volts AC/DC
- Number of Poles: 3
- Fuse Type: Class R
- Frame/Series: RM25
- Mounting Type: Panel Mount
- Connection Type: Knife blade end x knife blade end
- Conductor Compatibility: Aluminum/Copper 1000-250 kcmil
- Interrupt Rating: Suitable for Class R fuses
- Certifications: UL Listed (Class R)
Specifications
- Part Number: RM25600-3CR
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Type : RM
- Voltage : 250VAC/VDC
- Amperage : 450-600
- Poles : 3
- Connection : Knife Blade End x Knife Blade End
- Circuit Breaker Mounting Style : Bolt-Down, Din Rail
- Compatible Frames : RK1, RK5 Fuse
Product Data
- UPC : 51712391054
- GTIN : 00051712391054
- Dimensions : 11.25 in x 6 in x 14.75 in (Length/Depth x Height x Width)
- Weight : 12.2
