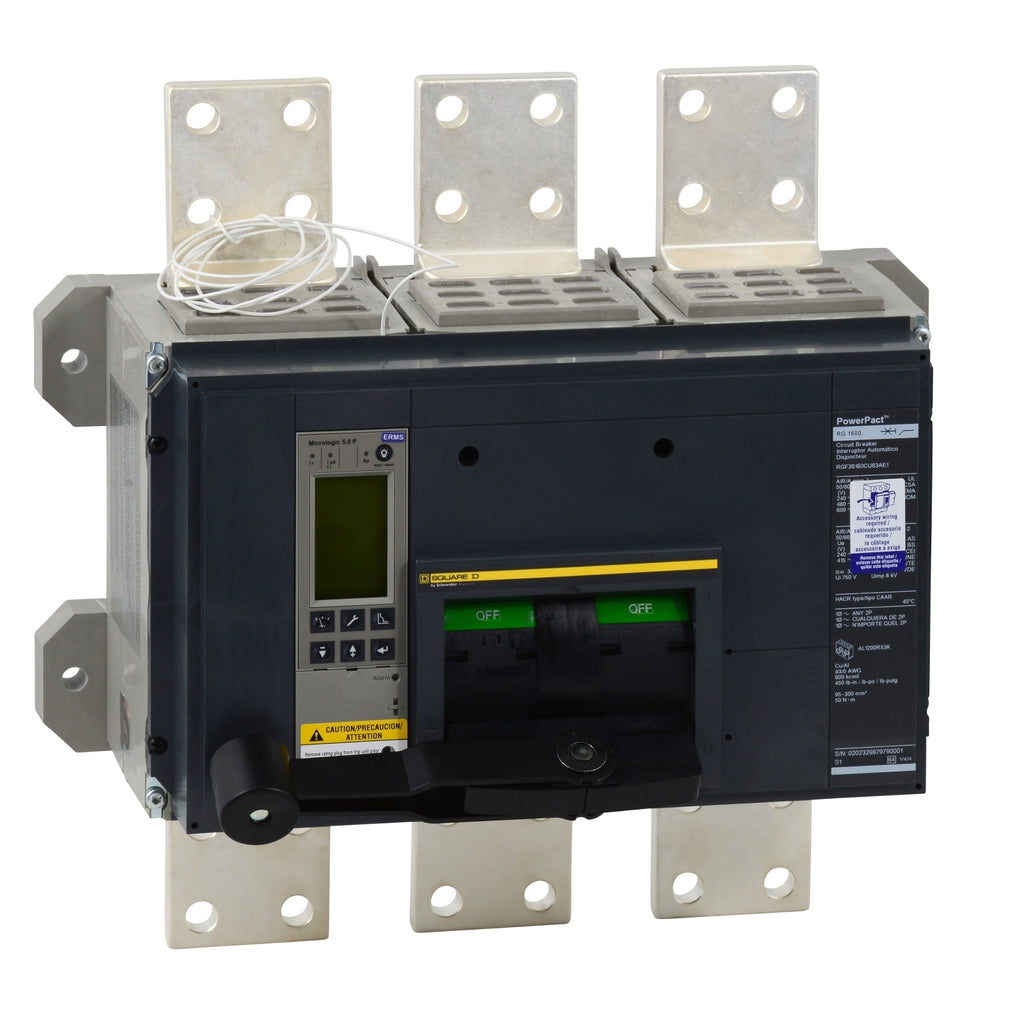

RLF36120CU64AE1 - Schneider Electric PowerPacT R-Frame 1200A 3 Pole 600V Molded Case Circuit Breaker with MicroLogic 6.0P Trip Unit

RLF36120CU64AE1

RLF36120CU64AE1 is a Schneider Electric PowerPacT R-Frame molded case circuit breaker designed for high-capacity industrial and commercial power distribution applications. This breaker features a 3-pole configuration, 1200A current rating, and 600V AC operational voltage, providing reliable protection for demanding electrical systems. The unit is equipped with a MicroLogic 6.0P electronic trip unit for advanced protection and monitoring, and is rated for 50kA interrupting capacity. It is busbar-mounted for secure installation and is 100% rated for continuous operation. The breaker is UL 489 listed and suitable for use in a wide range of environments. This circuit breaker is ideal for applications requiring robust protection, precise trip settings, and compatibility with modern power management systems. Its solid-state design ensures long life and dependable performance, while the MicroLogic 6.0P trip unit offers comprehensive protection features including overload, short-circuit, and ground fault protection. The unit is designed for easy integration into existing electrical panels and is suitable for use in both new installations and upgrades.

• Part Number: RLF36120CU64AE1
• Manufacturer: Schneider Electric
• Series/Frame: PowerPacT R-Frame
• Amperage: 1200A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: Busbar
• Interrupt Rating: 50kA
• Rated Operational Voltage: 600V AC 50/60 Hz
• Rated Current: 1200A
• Rated Withstand Voltage: 600V AC
• Trip Unit: MicroLogic 6.0P
• Certifications: UL 489 Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: RLF36120CU64AE1
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Voltage : 600
• Amperage : 1200
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Protection : Solid State

Product Data

• Country of Origin : United States
• Dimensions : 16.24 in (412.50 mm) x 16.54 in (420.12 mm) x 14.49 in (368.05 mm) (Height x Width x Depth)
• Weight : 52.001
• Standards : UL, CSA, NEMA, NMX J-266, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...750 kcmil aluminium/copper
