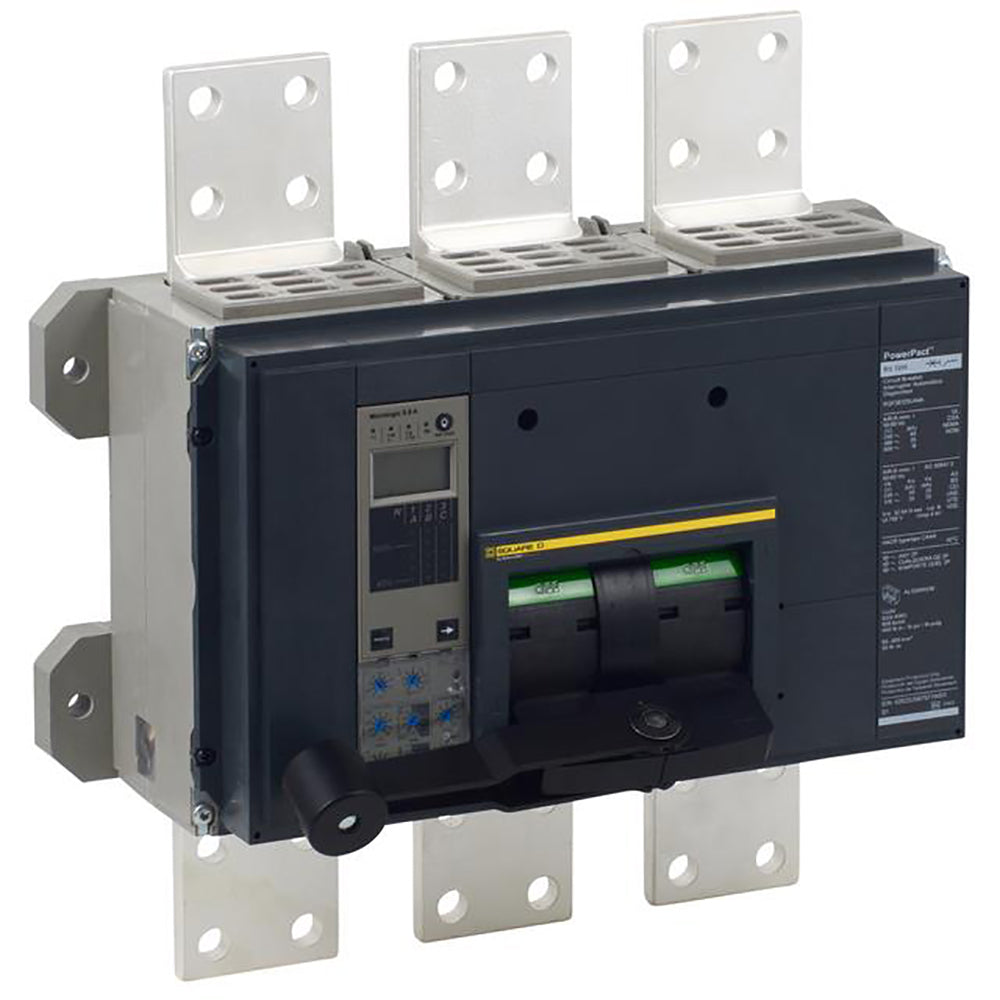

RJF36200CU44A - Square D PowerPact R Frame 2000A 600VAC 3 Pole Molded Case Circuit Breaker Electronic Trip

RJF36200CU44A

RJF36200CU44A is a Square D PowerPact R Frame molded case circuit breaker designed for high-amperage industrial applications. This breaker features a 2000A rating, 600VAC maximum voltage, and a 3-pole configuration with electronic trip technology for reliable protection. Engineered for demanding environments, the RJF36200CU44A offers a robust interrupt rating and is compatible with a wide range of electrical systems. Its compact design and electronic trip unit provide precise control and monitoring, making it ideal for critical power distribution needs.

• Amperage Rating: 2000A
• Voltage Rating: 600VAC
• Number of Poles: 3
• Mounting Type: Panel Mount
• Interrupt Rating: 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC
• Series/Frame: PowerPact R Frame
• Tripping Mechanism: Electronic Trip (Micrologic 6.0A)
• Certifications: UL Listed, CSA Certified, RoHS Compliant
• Frequency Rating: 50/60 Hz
• Temperature Rating: 40°C
• Wire Size: 3/0 AWG
• Enclosure Type: Busbar

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: RJF36200CU44A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Voltage : 600
• Amperage : 2000
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Protection : Solid State

Product Data

• UPC : 78590129924
• GTIN : 00785901299240
• Country of Origin : Mexico
• Dimensions : 16.24 in (412.50 mm) x 16.54 in (420.12 mm) x 14.49 in (368.05 mm) (Height x Width x Depth)
• Weight : 74
• Standards : UL, CSA, NEMA, NMX J-266, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : AWG 3/0...750 kcmil aluminium/copper
