RJA36120CU31A - Schneider Electric Square D PowerPact R-Frame Molded Case Circuit Breaker 1200A 600VAC 3 Pole Micrologic 3.0

RJA36120CU31A

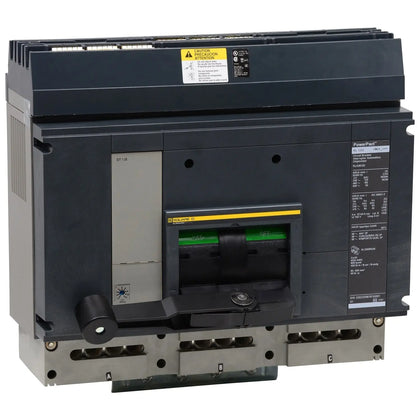

RJA36120CU31A is a Schneider Electric Square D PowerPact R-Frame molded case circuit breaker with a 1200 amp rating and 600 VAC voltage rating.

This 3 pole circuit breaker features a Micrologic 3.0 electronic trip unit, I-Line mounting type, and a 25 kA interrupting rating at 600 VAC. It is UL 489 listed, CSA and IEC certified, designed for power distribution applications, and provides protection from overloads and short circuits with 100% continuous current rating. The breaker frame is R, and it supports 50/60 Hz frequency operation.

• Amperage Rating: 1200 A
• Voltage Rating: 600 VAC
• Poles: 3
• Mounting Type: I-Line
• Interrupting Rating: 25 kA at 600 VAC
• Frame: R
• Trip Unit: Micrologic 3.0 electronic
• Frequency: 50/60 Hz
• Certifications: UL 489, CSA, IEC
• Continuous Current Rating: 100%
• Enclosure Type: NEMA AB1
• Dimensions: 13.38 in H x 14.96 in W x 13.78 in D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: RJA36120CU31A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Voltage : 600
• Amperage : 1200
• Phase : 3
• AIC rating : 65kA@480V
• Configuration : 1A/1B

Product Data

• UPC : 078590178883
• GTIN : 00785901788836
• Country of Origin : United States
• Dimensions : 16.24 in (412.50 mm) x 16.54 in (420.12 mm) x 14.49 in (368.05 mm) (Height x Width x Depth)
• Weight : 64
• Standards : UL, CSA, NEMA, NMX J-266, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 4 x AWG 3/0...600 kcmil aluminium/copper
  4 x AWG 3/0...500 kcmil copper
