Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
RGH316036EC

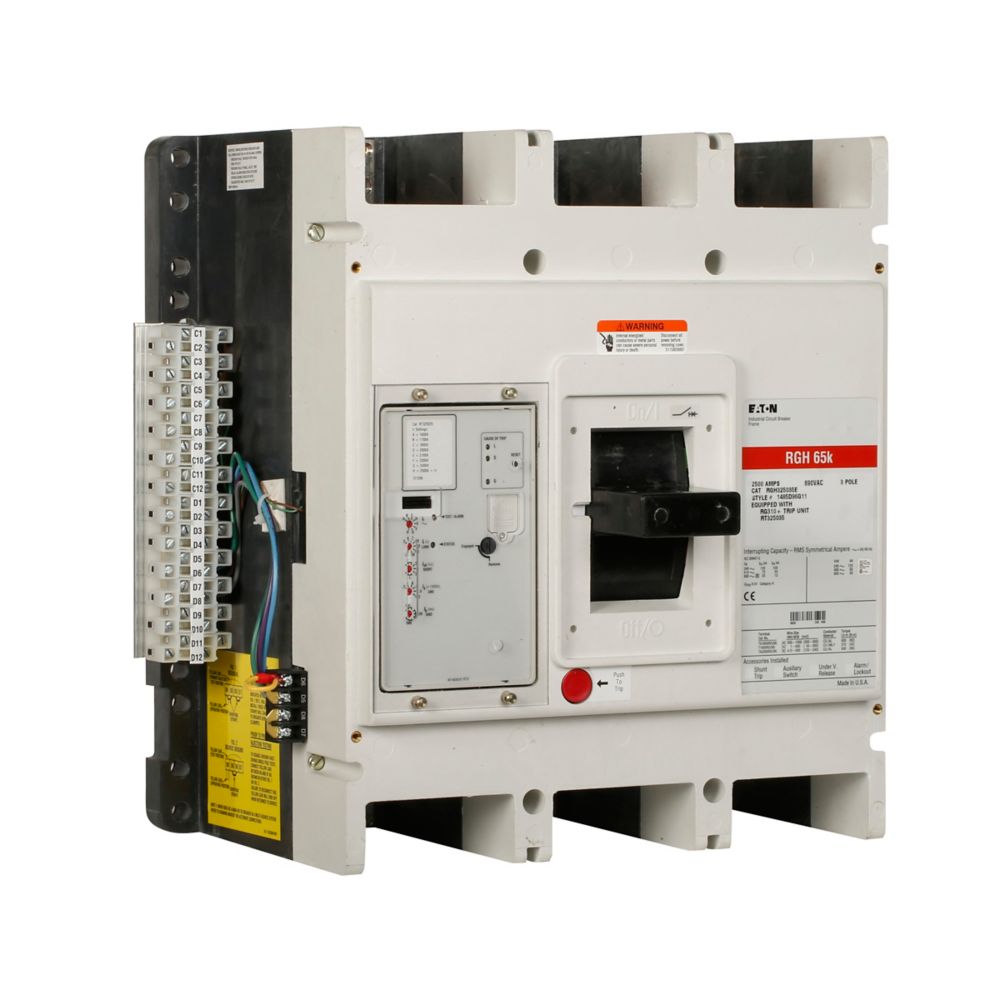

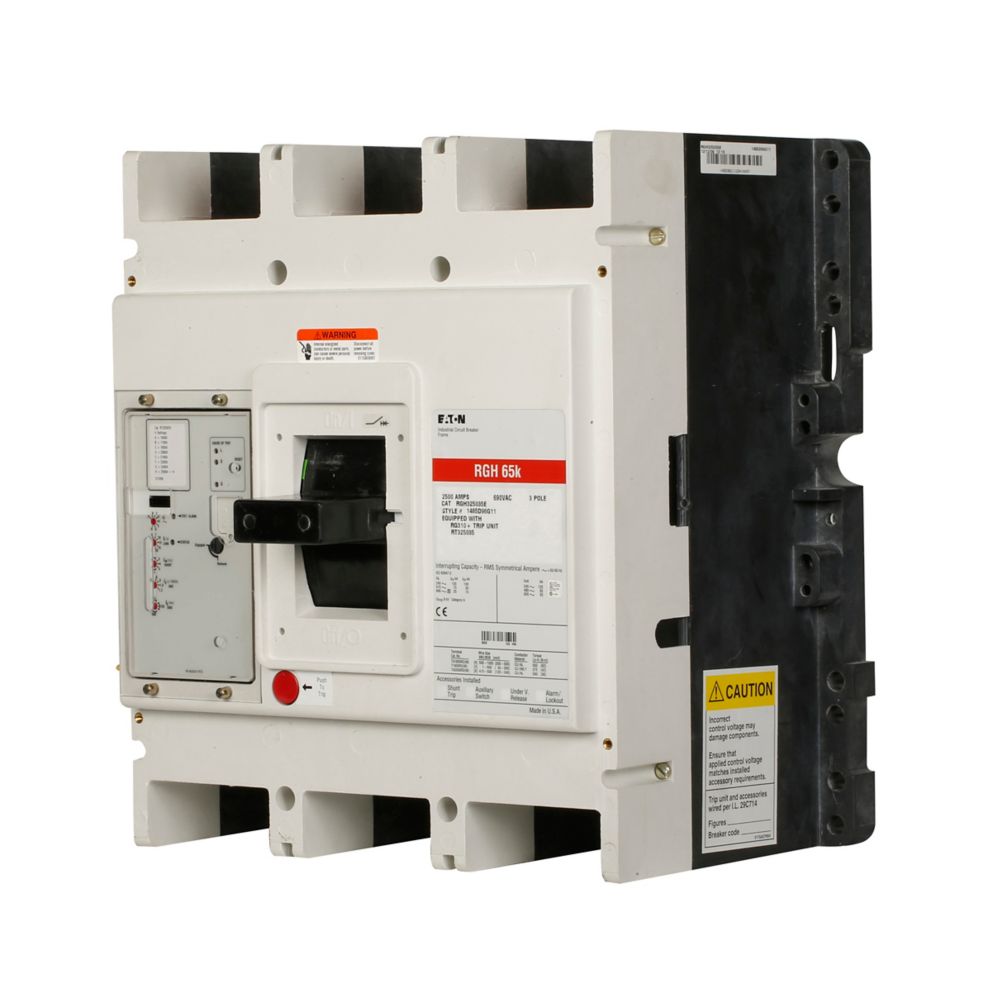

RGH316036EC is a high-performance Eaton Series G molded case circuit breaker designed for demanding electrical protection applications. This breaker features a robust 1600A rating, three poles, and an electronic LSIG trip unit for precise overload and short-circuit protection. The RGH316036EC is built for 600/690 VAC systems and offers a 100% rated frame for continuous operation. It is suitable for reverse feed use and features a bolt-on mounting design for secure installation. The breaker is engineered for reliability in industrial and commercial power distribution environments.
- 1600A continuous current rating
- 600/690 VAC voltage rating
- Three poles
- 125 kAIC interrupt rating at 240VAC
- 65 kAIC interrupt rating at 480VAC
- Series G RG-frame
- Electronic LSIG trip unit
- Bolt-on mounting
- 100% rated for continuous operation
- 50/60 Hz frequency
- 102 lb weight
- Suitable for reverse feed use
Specifications
- Part Number: RGH316036EC
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Voltage : 600
- Amperage : 1600
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
- Protection : Solid State
Product Data
- UPC : 786685574745
- Country of Origin : United States
- Dimensions : 9.75 in x 15.5 in x 15.5 in (Length/Depth x Height x Width)
- Weight : 102
- Certification : UL Listed
