RGC320032E - Eaton Series G Electronic Molded Case Circuit Breaker 2000A 600V 3P RG Frame LSI Trip 100kAIC at 480V

RGC320032E

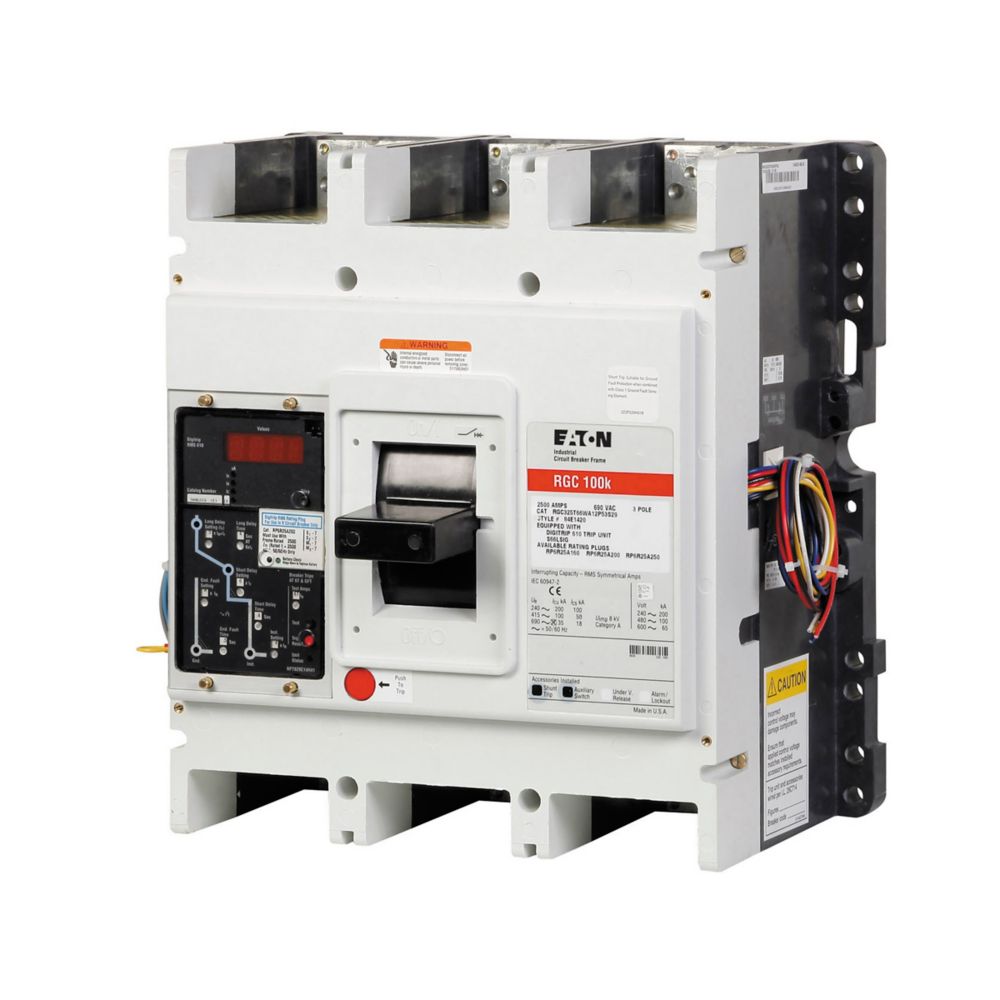

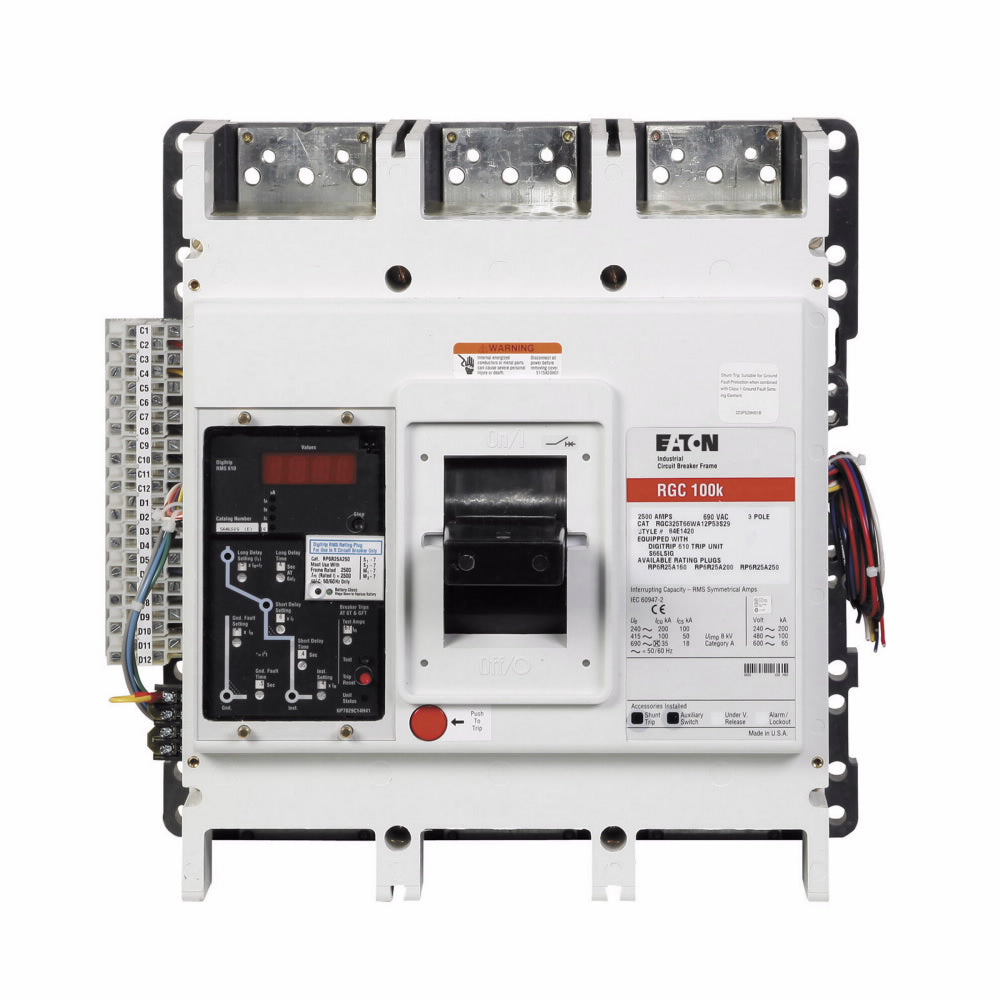

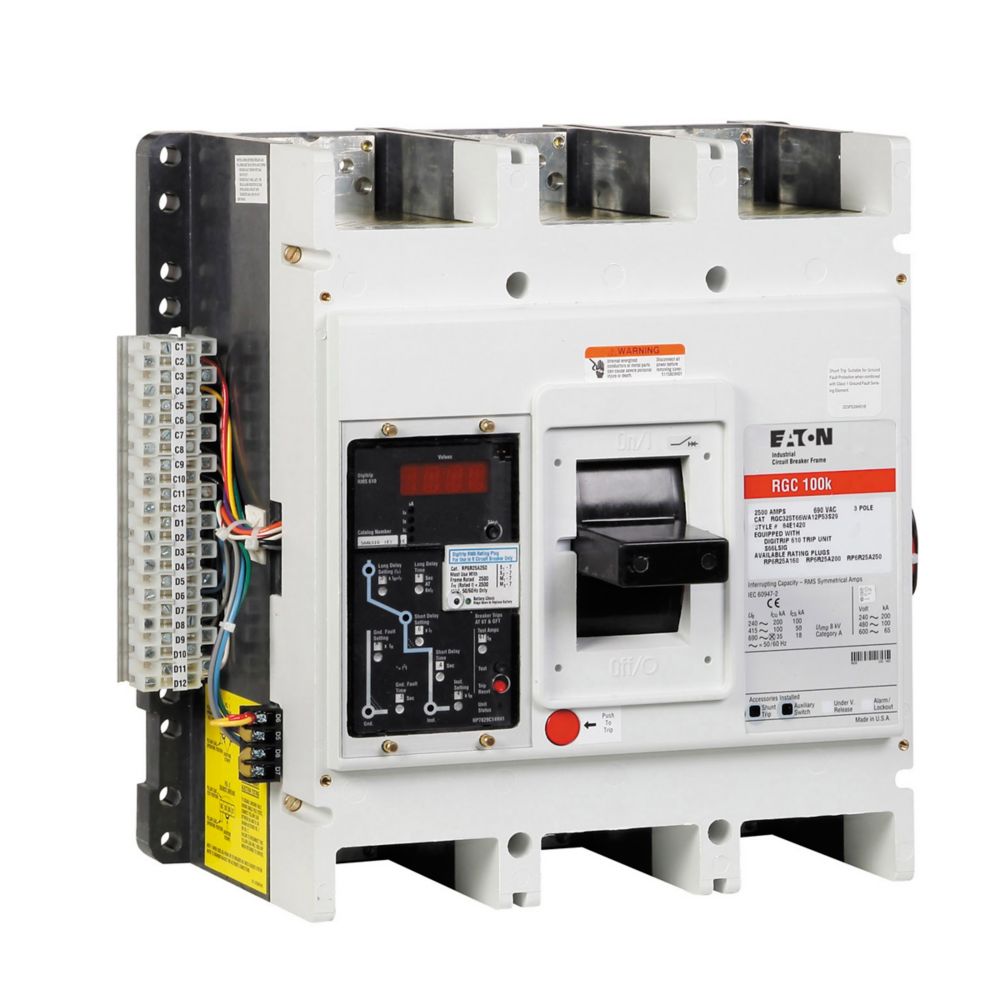

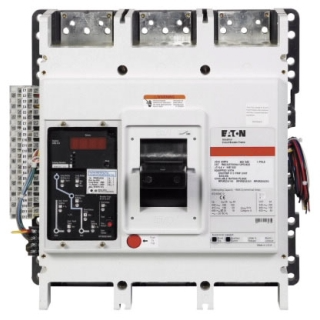

RGC320032E is a three-pole, 2000A, 600V Eaton Series G electronic molded case circuit breaker with RG frame and Digitrip 310 RMS electronic LSI trip unit. This breaker is designed for reliable protection in industrial and commercial power distribution systems.Engineered for high performance, the RGC320032E features an electronic LSI trip system for precise overload, short-circuit, and ground fault protection. It is rated for 2000A continuous current and 600V AC, with a 100kA interrupt rating at 480V AC. The RG frame supports robust mounting and integration into standard switchgear. This breaker is UL Listed and suitable for demanding electrical environments.

• Part Number: RGC320032E
• Manufacturer: Eaton
• Series: Series G
• Frame: RG
• Ampere Rating: 2000A
• Voltage Rating: 600 Vac
• Number of Poles: 3
• Interrupt Rating: 100kAIC at 480 Vac
• Interrupt Rating: 200kAIC at 240 Vac
• Mounting Type: Line and Load
• Performance Rating: 80% rated
• Terminal Type: Line and Load
• Trip Type: Electronic LSI
• Product Weight: 102 lb
• Product Height: 15.5 in
• Product Width: 15.5 in
• Product Depth: 9.75 in
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: RGC320032E
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : RGC
• Voltage : 600
• Amperage : 2000
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Feed-Thru
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Protection : Solid State

Product Data

• UPC : 786685574141
• GTIN : 00786685574141
• Country of Origin : United States
• Dimensions : 9.75 in x 15.5 in x 15.5 in (Length/Depth x Height x Width)
• Weight : 102
• Certification : UL Listed,IEC Rated
