RGC316036E - Eaton Series G Electronic Molded Case Circuit Breaker 1600A 600V 3-Pole

RGC316036E

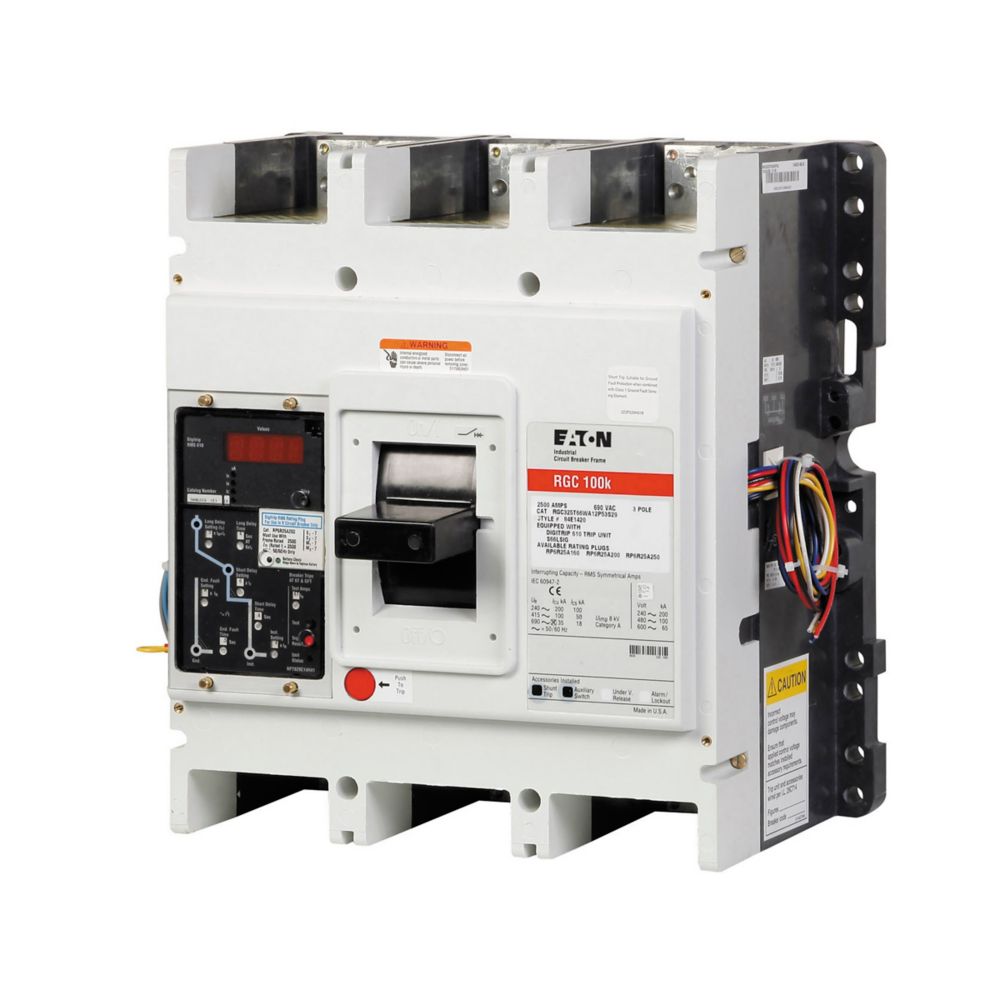

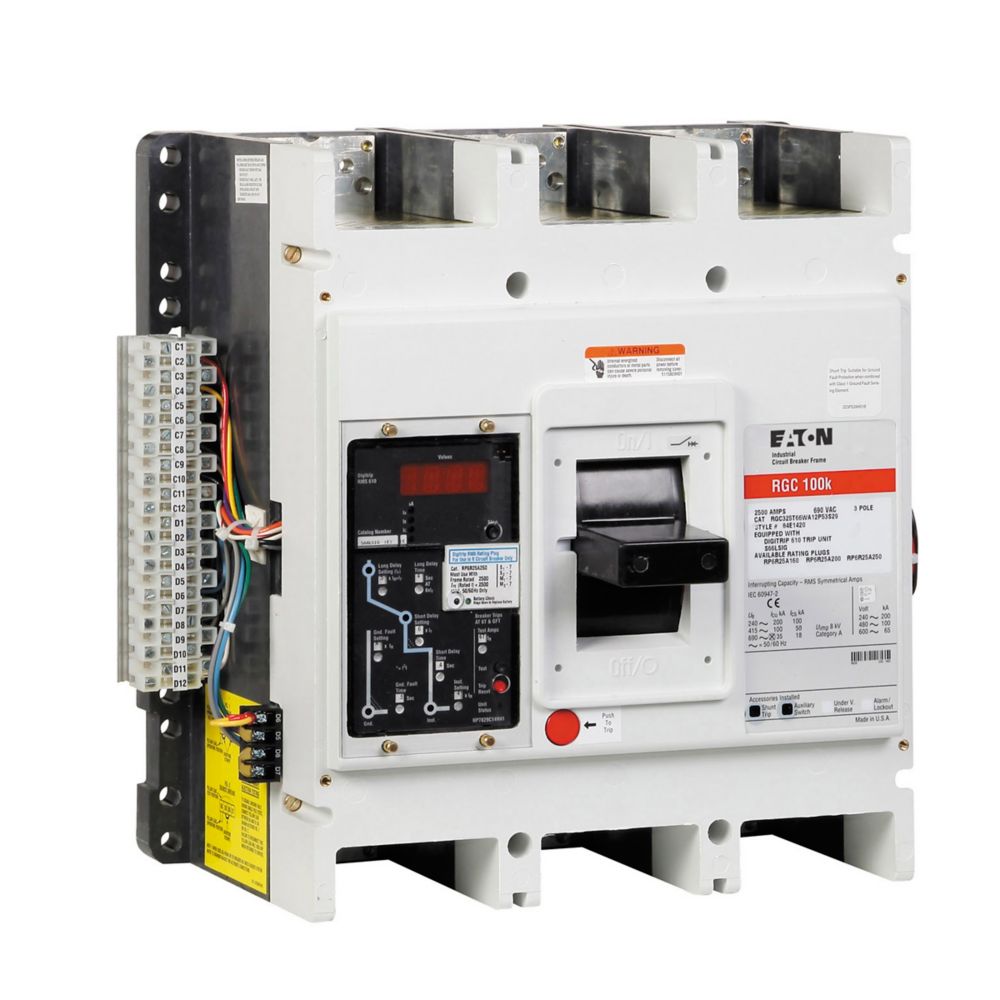

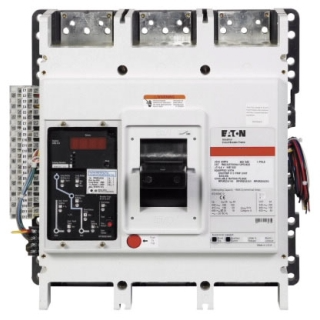

RGC316036E is an Eaton Series G electronic molded case circuit breaker designed for industrial and commercial power distribution applications requiring high amperage capacity and reliable protection.

This three-pole RG-frame breaker features a Digitrip 310 RMS electronic trip unit with LSIG (Long Short Instantaneous Ground) protection. The unit is rated for 1600 amperes at 600 volts AC and delivers exceptional interrupt ratings across multiple voltage levels, making it suitable for demanding electrical systems. The electronic trip mechanism provides precise overcurrent and ground fault detection with adjustable settings for customized protection.

• Amperage Rating: 1600A
• Voltage Rating: 600 Vac
• Poles: 3
• Frame: RG-frame
• Trip Unit: Digitrip 310 RMS Electronic LSIG
• Interrupt Rating: 200 kAIC at 240 Vac
• Interrupt Rating: 100 kAIC at 480 Vac
• Interrupt Rating: 65 kAIC at 600 Vac
• Series: Series G Electronic
• Connection Type: Feed-Thru
• Phase: 3-Phase

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: RGC316036E
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : RGC
• Voltage : 600
• Amperage : 1600
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Feed-Thru
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Protection : Solid State

Product Data

• UPC : 786685574486
• GTIN : 00786685574486
• Country of Origin : United States
• Dimensions : 9.75 in x 15.5 in x 15.5 in (Length/Depth x Height x Width)
• Weight : 102
• Certification : IEC Rated,UL Listed
