Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
RFS40

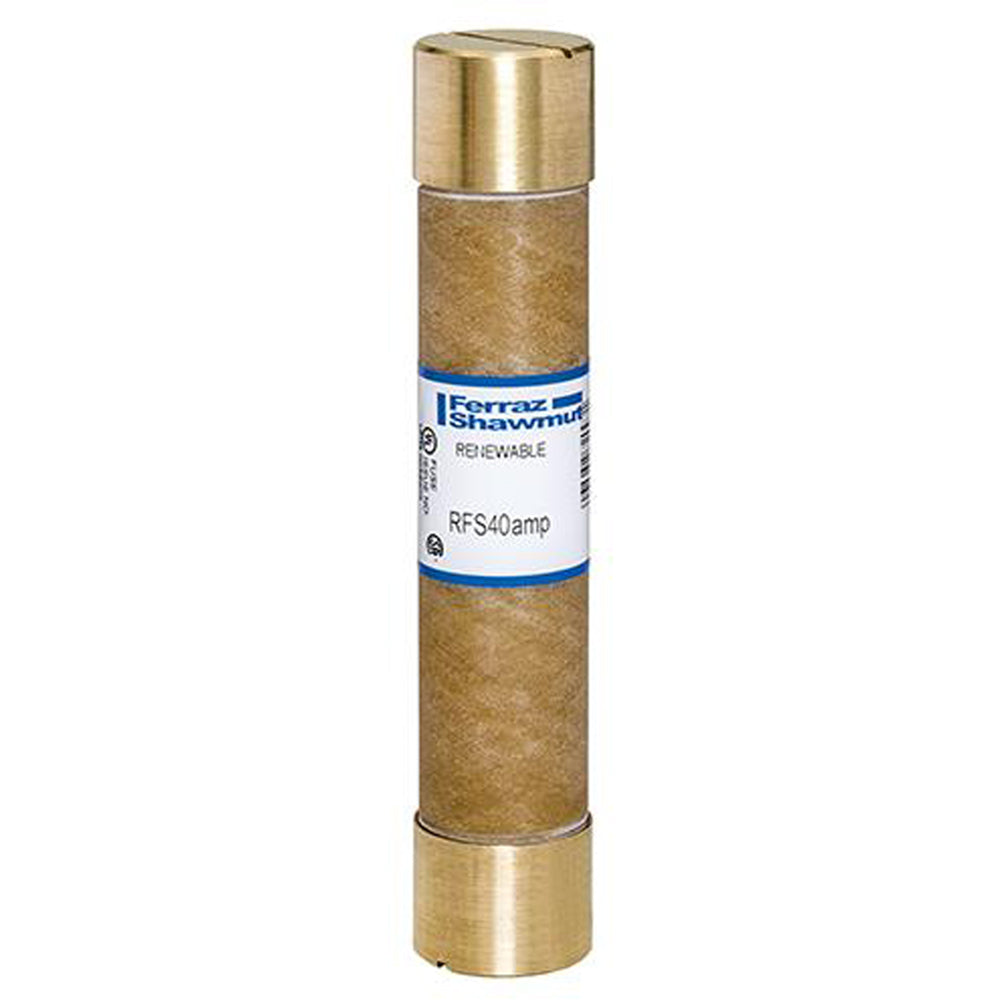

RFS40 is a 40 Amp, 600 Volt AC Class H renewable fuse from Gould Shawmut Ferraz Shawmut designed for general purpose circuit protection.RFS40 features fast-acting fuse timing, non-current limiting operation, and a high interrupting rating of 10,000 AIC at 600 VAC. It has a cylindrical body measuring approximately 1 1/16" x 5 1/2" with knurled bushings for easy disassembly and precision die-cut renewal links for reliable repeatable performance. This fuse is equivalent to Buss RES fuses and is UL Class H certified.
- Key Specifications
- Amperage: 40 Amps
- Voltage: 600 Volts AC
- Fuse Class: Class H
- Fuse Timing: Fast-Acting
- Interrupting Rating: 10,000 AIC @ 600 VAC
- Poles: 1 Pole (renewable fuse)
- Mounting Type: Renewable fuse with knurled bushings
- Physical Size: 1 1/16" diameter x 5 1/2" length
- Equivalent to Buss RES Fuse
- UL Certified
- Non-Current Limiting
Specifications
- Part Number: RFS40
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 600
- Amperage : 40
- AIC rating : 10kA@600V
- Diameter : 1.06
- Class Rating : H
- Barrels : 1
Product Data
- UPC : 06893872091
- GTIN : 00068938720919
- Weight : 5.19
