Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage
Description

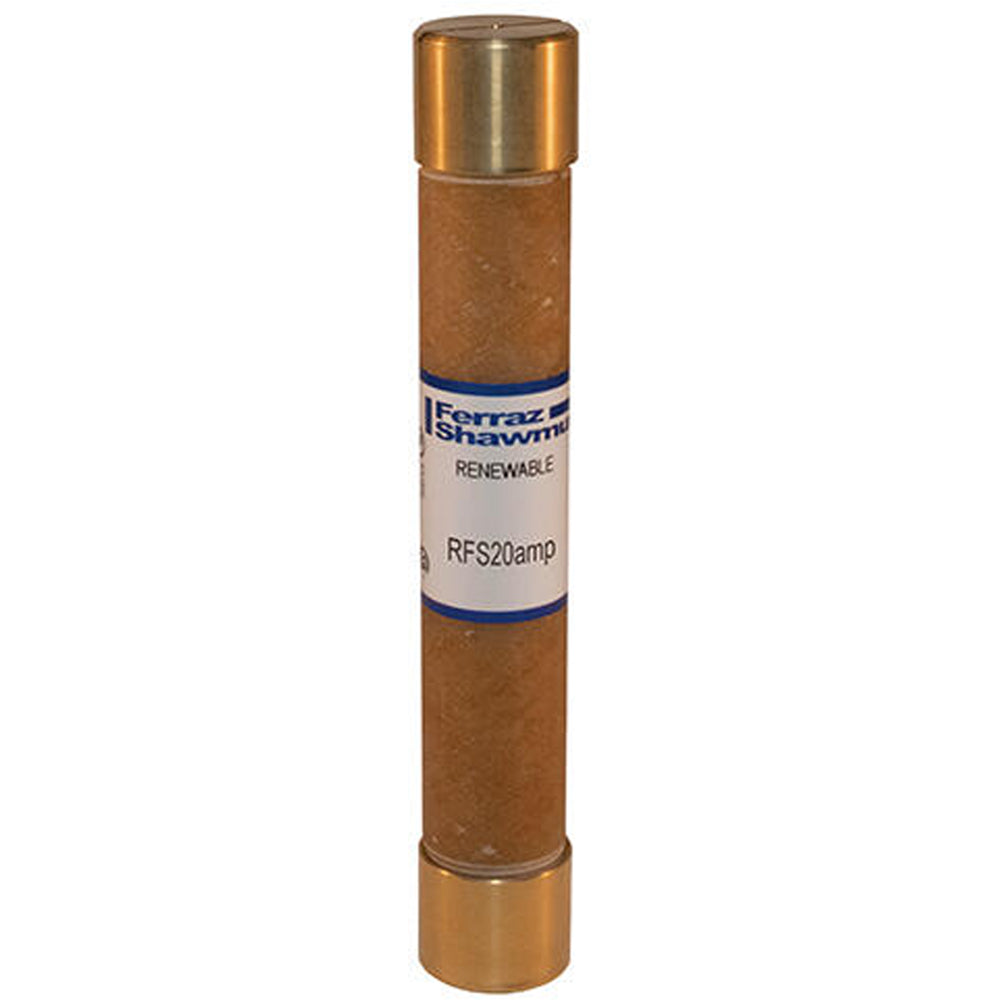

RFS20
RFS20 is a Class H fast-acting renewable general purpose fuse rated for 600 VAC at 20 amperes with a 10 kiloampere interrupt rating. This cylindrical ferrule-style fuse is designed for applications requiring fast-acting protection in low voltage power distribution systems. The renewable design allows for replacement of the fuse link while retaining the ferrule body, making it a cost-effective solution for recurring fuse replacements. RFS series fuses are non-current limiting and suitable for general purpose circuit protection where available short-circuit current permits their use.
- Amperage Rating: 20 A
- Voltage Rating: 600 VAC
- Fuse Class: Class H
- Speed Characteristic: Fast-Acting
- Interrupt Rating: 10 kA
- Body Style: Cylindrical Ferrule
- Physical Dimensions: 13/16 inch diameter x 5 inch length
- Frequency: 50/60 Hz
- UL Category Code: JDDZ
- Certifications: UL 248-7, CSA C22.2
- Protection Type: General Purpose
- Mounting: Clip Mount
Specifications
- Part Number: RFS20
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : RFS Series
- Type : RFS
- Voltage : 600
- Amperage : 20
- AIC rating : 10kA@600V
- Diameter : 0.81
- Class Rating : H
- Barrels : 1
Product Data
- UPC : 006893872081
- GTIN : 68938720810
- Weight : 1.85
