Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
RFS100

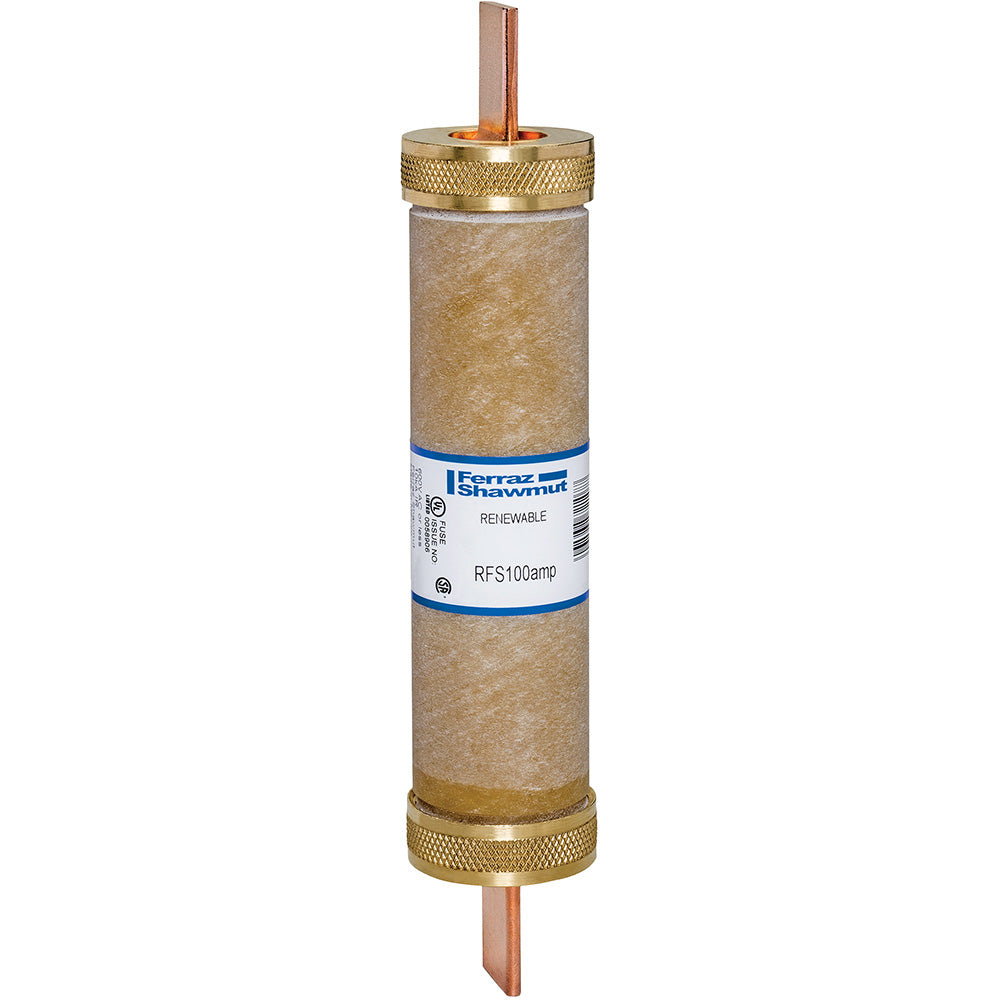

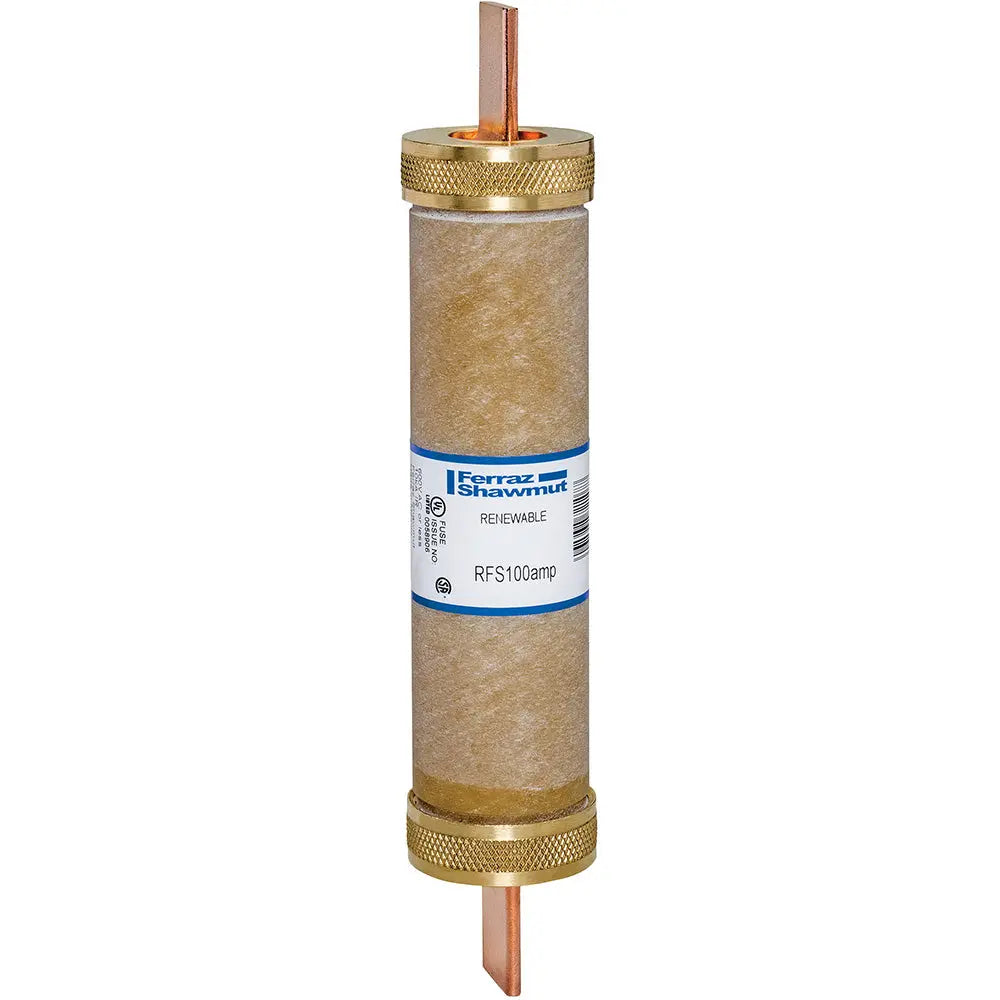

RFS100 is a fast-acting, renewable Class H fuse from Ferraz Shawmut (Gould Shawmut), designed for reliable circuit protection in demanding applications.
This cylindrical fuse features a 100A current rating, 600V AC voltage rating, and a 10kA interrupting capacity. It is UL 248-7 listed and CSA certified, ensuring compliance with North American safety standards. The RFS100 is engineered for easy renewal and is compatible with standard Class H fuse holders.
-
Key Specifications
- Part Number: RFS100
- Manufacturer: Ferraz Shawmut, Gould Shawmut
- Amperage: 100A
- Voltage: 600V AC
- Poles: Not specified (typically single pole for this style)
- Mounting Type: Clip (cylindrical body)
- Interrupt Rating: 10kA
- Series/Frame: Class H, RFS series
- Trip Unit: Fast-acting
- Certifications: UL 248-7, CSA
- Overall Length: 7-7/8"
- Body Diameter: 1-5/16"
- Renewable: Yes
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: RFS100
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : RFS Series
- Type : RFS
- Voltage : 600
- Amperage : 100
- AIC rating : 10kA@600V
- Diameter : 1.31
- Class Rating : H
- Barrels : 1
Product Data
- UPC : 06893872107
- GTIN : 00068938721077
- Weight : 0.66
