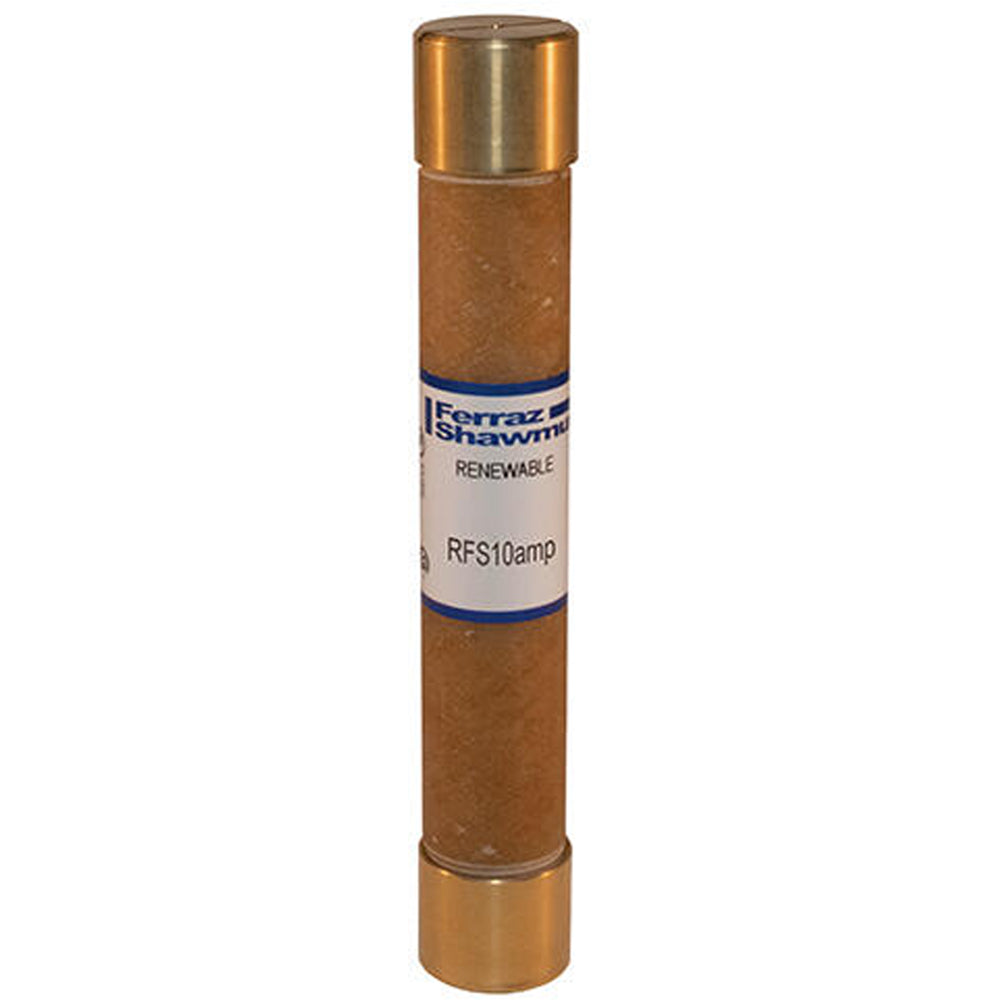

RFS10 - Gould Shawmut Ferraz Shawmut 10A 600V Renewable Fast-Acting Class H Fuse

RFS10

RFS10 is a renewable, fast-acting Class H fuse rated for 10 amperes and 600 volts AC, designed for low voltage circuit protection.This Gould Shawmut Ferraz Shawmut fuse features a cylindrical ferrule body with a 5-inch length and 0.81-inch diameter, providing a 10,000 ampere interrupt rating at 600 volts. It is UL 248-7 and CSA C22.2 certified, suitable for general purpose loads with short circuit currents up to 10,000 amperes. The fuse uses knurled bushings for easy disassembly and precision die-cut renewal links for quick and repeatable fuse renewal.

Key Specifications
• Amperage: 10 A
• Voltage Rating: 600 VAC
• Fuse Type: Renewable, Fast-Acting
• Fuse Class: H
• Body Type: Cylindrical Ferrule
• Overall Length: 5 inches
• Diameter: 0.81 inches
• Interrupt Rating: 10,000 AIC at 600 V
• Mounting Type: Clip
• Certifications: UL 248-7, CSA C22.2

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: RFS10
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : RFS Series
• Type : RFS
• Voltage : 600
• Amperage : 10
• AIC rating : 10kA@600V
• Diameter : 0.81
• Class Rating : H
• Barrels : 1

Product Data

• UPC : 006893872077
• GTIN : 68938720773
• Weight : 0.1701 lb
