RF51054C - Eaton Electrical Components 230V 40kA Surge Protector

RF51054C

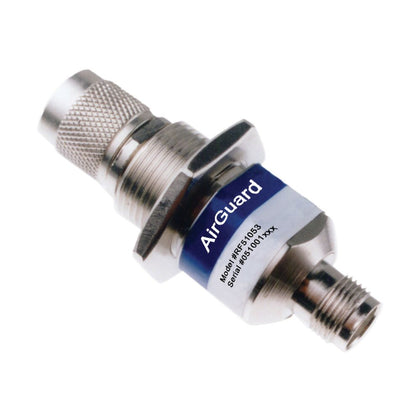

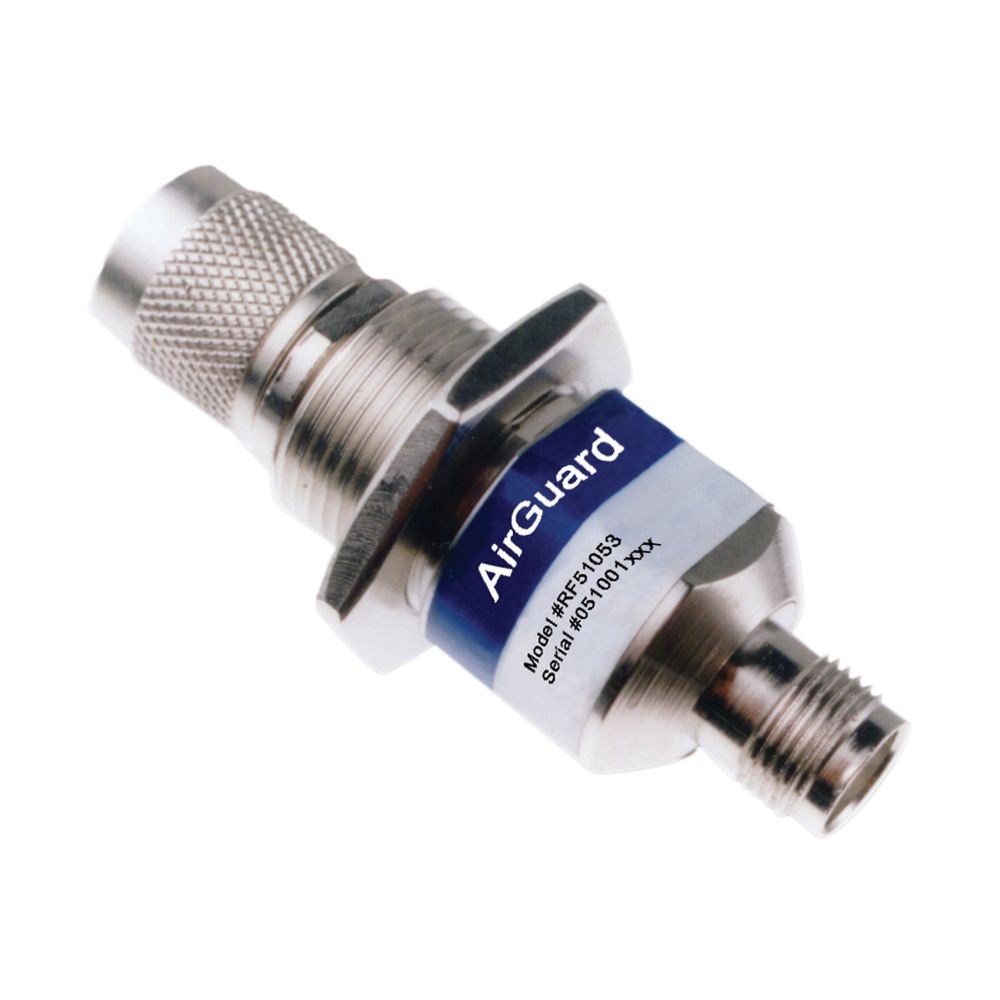

RF51054C is an Eaton Crouse-Hinds series MTL AirGuard GT surge protector designed for wideband surge protection in radio telemetry applications.This compact device provides economic protection with N(f) bulkhead to N(f) connectors, operating from DC to 2.5 GHz across a wide temperature range in ordinary/non-hazardous locations with IP67 ingress protection.Key Specifications

• Part Number: RF51054C
• Manufacturer: Eaton
• Nominal Voltage AC: 230V
• Nominal Discharge Surge Current (8/20): 40 kA
• Lightning Impulse Current (10/350 µs): 10 kA
• Frequency: DC - 2.5 GHz
• Connection Type: N(f) bulkhead to N(f)
• Ingress Protection: IP67
• Minimum Ambient Operating Temperature: -40 °C
• Maximum Ambient Operating Temperature: 90 °C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: RF51054C
• Manufacturer : Eaton
• Brand : Eaton
• Category : Electrical Components
• Section : Surge protector
• Voltage : 230 V
• AIC rating : 40 kA
• Connection : N(f) bulkhead to N(f)
• Functions : Wideband surge protection for radio telemetry applications
• Temp Rating : -40 °C to 90 °C
• Hz : DC - 2.5 GHz
• Protection : IP67
• Ingress protection (IP) ratings : IP67
• Minimum Ambient Operating Temperature : -40 deg C
• Maximum Ambient Operating Temperature : 90 deg C

Product Data

• Dimensions : 27.79 mm x 27.79 mm x 27.79 mm (Length/Depth x Height x Width)
• Temp Rating : -40 °C to 90 °C
