RES-100 - Eaton 100 Amp 600 Volt Class H Renewable Fuse Super-Lag Time Delay

RES-100

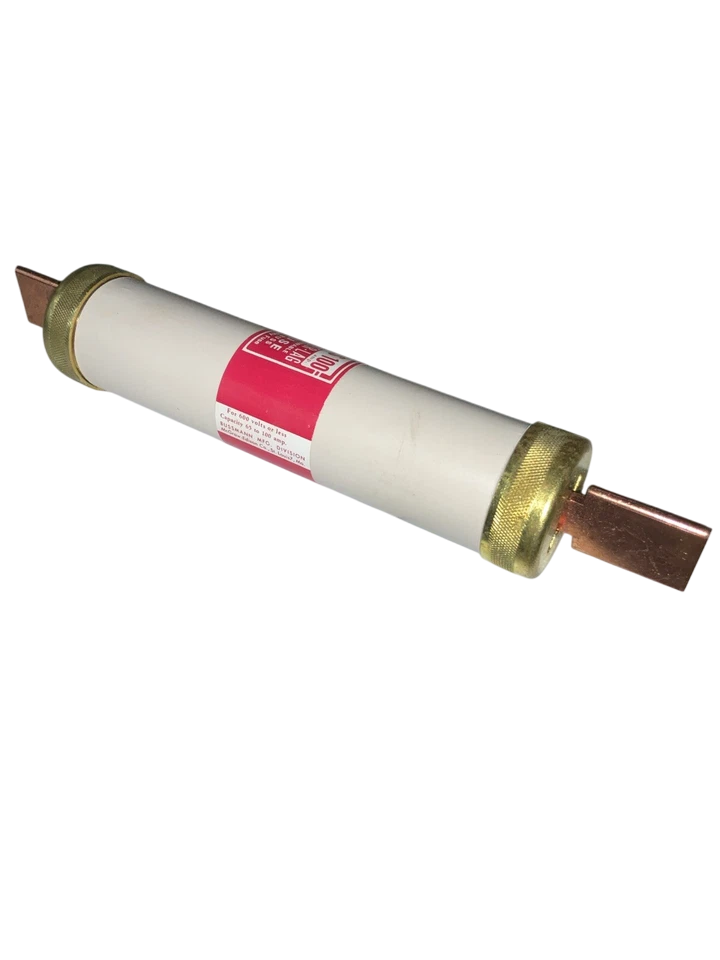

RES-100 is a 100 amp, 600 volt Class H renewable fuse with super-lag time delay characteristics designed for electrical circuit protection.This Eaton RES-100 fuse is a non-current limiting, renewable Class H fuse suitable for use in electrical systems requiring a 600 VAC rating and a 10,000 amp interrupting rating. It features a knife blade termination style and is designed for easy replacement in fuse blocks. The fuse is intended for circuits where frequent outages occur and economy of replacement is important.

• Amperage: 100 Amps
• Voltage Rating: 600 Volts AC
• Fuse Class: H
• Fuse Type: Renewable, Super-Lag (Time Delay)
• Interrupting Rating: 10,000 Amps RMS Symmetrical
• Termination Style: Knife Blade
• Non-Current Limiting
• Physical Size: Approximately 1.34" x 7.88"

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: RES-100
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Super-Lag
• Type : RES
• Voltage : 600
• Amperage : 100
• AIC rating : 10kA@600V
• Class Rating : H
• Barrels : 1

Product Data

• UPC : 051712111003
• Weight : 1
