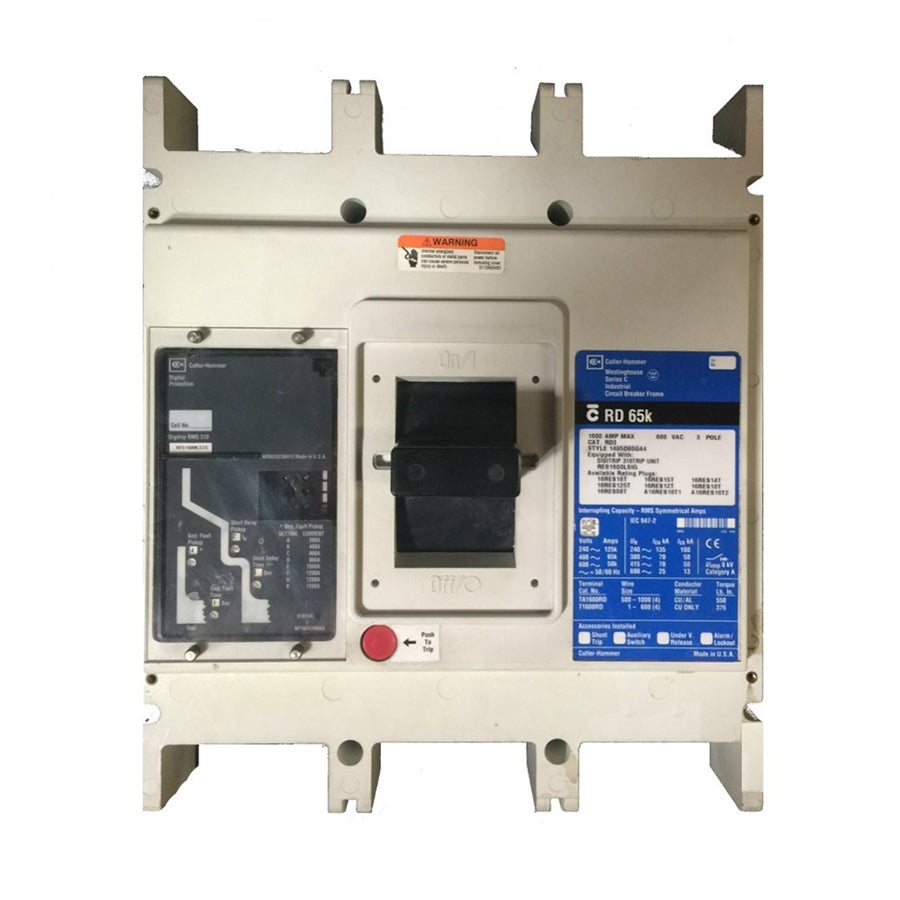

RD325T86W - Cutler Hammer Series C Electronic Molded Case Circuit Breaker 2500A 600V 3P 50kAIC

RD325T86W

RD325T86W is a Series C electronic molded case circuit breaker from Cutler Hammer, designed for high-capacity electrical protection in industrial and commercial applications. This breaker features a Digitrip 810 RMS electronic trip unit with LSIG protection, providing reliable overcurrent and short-circuit protection for demanding environments. The unit is a complete R-frame breaker, three-pole configuration, rated for 2500A and 600V, and is UL listed for safety and compliance. It is supplied without terminals, allowing for flexible field installation.Engineered for durability and performance, the RD325T86W offers a 50 kAIC interrupt rating at 600V and 65 kAIC at 480V, ensuring robust protection in high-fault current scenarios. The patented contact design delivers high-speed "blow-open" action for superior interruption performance. The breaker is compatible with a wide range of heavy-duty accessories for use in harsh environments.

• Series C electronic molded case circuit breaker
• R-frame, complete breaker
• Three-pole configuration
• 2500A amperage rating
• 600V maximum voltage
• 50 kAIC interrupt rating at 600V
• 65 kAIC interrupt rating at 480V
• Digitrip 810 RMS electronic LSIG trip unit
• UL listed
• Without terminals
• Patented high-speed contact design
• Compatible with heavy-duty accessories

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: RD325T86W
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : RD
• Voltage : 600
• Amperage : 2500
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Protection : Solid State

Product Data

• UPC : 078667954934
• GTIN : 00786679549346
• Country of Origin : United States
• Dimensions : 9.75 in x 15.5 in x 15.5 in (Length/Depth x Height x Width)
• Weight : 135
• Certification : UL Listed
