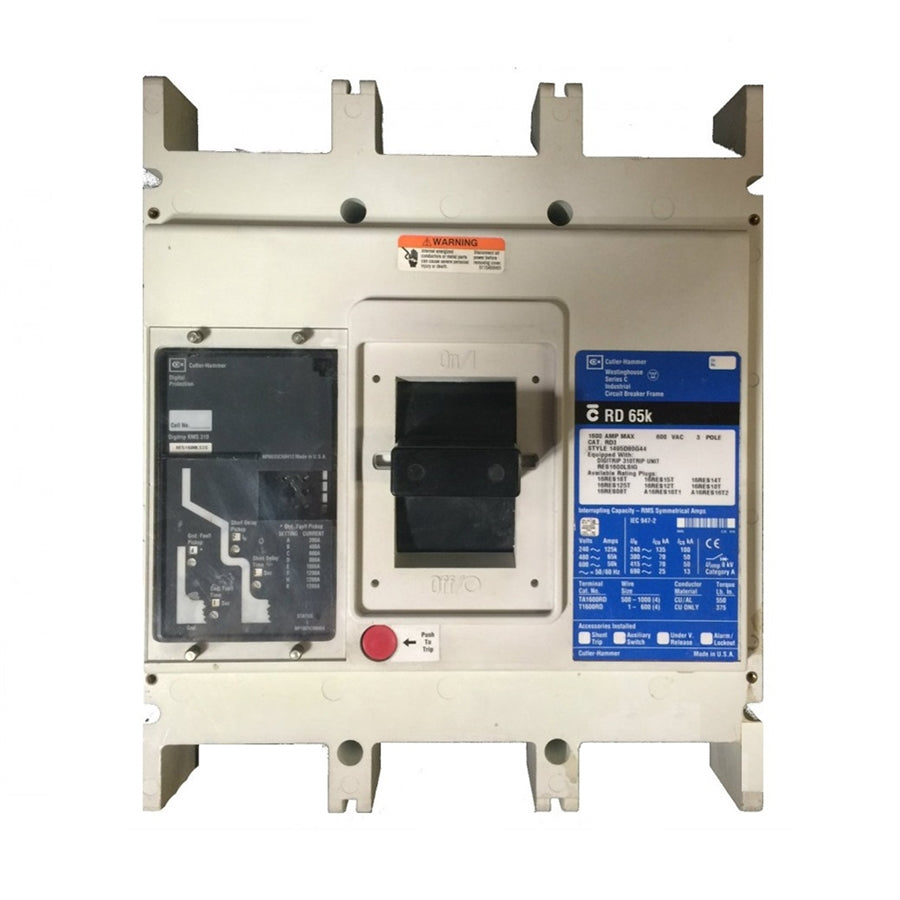

RD325T36W - Eaton 2500A 600V 3-Pole R-Frame Electronic Molded Case Circuit Breaker with LSIG Trip

RD325T36W

RD325T36W is a high-performance Eaton Series C electronic molded case circuit breaker designed for demanding electrical distribution applications. This R-frame, RD-type breaker features a Digitrip 310 RMS electronic LSIG trip unit for precise protection and reliable operation. Engineered for three-phase systems, it offers robust performance in industrial and commercial environments. The RD325T36W is a three-pole, 2500A, 600V circuit breaker with a bolt-on mounting configuration. It provides advanced electronic trip functionality and is built to meet rigorous safety and performance standards. This breaker is ideal for use in main distribution panels and critical power systems.

• Part Number: RD325T36W
• Manufacturer: Eaton
• Series/Frame: Series C, R-Frame
• Amperage: 2500A
• Voltage: 600V
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 65kAIC at 480V, 50kAIC at 600V
• Function: LSIG Trip (Long-Time, Short-Time, Instantaneous, Ground)
• Series: Series C
• Frame Type: R-Frame
• Mounting: Bolt-On

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: RD325T36W
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : RD
• Voltage : 600
• Amperage : 2500
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State

Product Data

• UPC : 786679567654
• GTIN : 00786679567654
• Country of Origin : United States
• Dimensions : 9.75 in x 15.5 in x 15.5 in (Length/Depth x Height x Width)
• Weight : 135
• Certification : UL Listed
