Product Info
- Manufacturer:Thomas & Betts
Description
RC1010

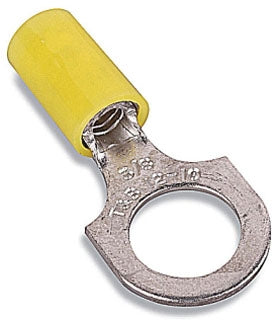

RC1010 is a Thomas & Betts RC Series Sta-Kon yellow nylon insulated ring terminal designed for wire sizes 12-10 AWG with a #10 bolt hole and 600V voltage rating.This ring terminal features a tin-plated copper construction with a nylon insulation sleeve that provides high dielectric strength and durability. It measures 1.00 inch in length and 0.37 inch in width, with a maximum insulation diameter of 0.21 inches. The terminal is UL 486A/B and CSA C22.2 approved, suitable for industrial applications requiring reliable electrical connectivity and corrosion resistance.
- Key Specifications
- Part Number: RC1010
- Manufacturer: Thomas & Betts
- Series: RC Series Sta-Kon
- Wire Range: 12-10 AWG
- Bolt Hole Size: #10 (M5 stud compatible)
- Voltage Rating: 600 V
- Material: Tin-plated copper
- Insulation: Yellow nylon, high dielectric strength
- Length: 1.00 inch
- Width: 0.37 inch
- Certifications: UL 486A/B, CSA C22.2
- RoHS and REACH compliant
Specifications
- Part Number: RC1010
- Manufacturer : Thomas & Betts
- Brand : Thomas & Betts
Product Data
- UPC : 786210804385
- GTIN : 5414363135173
- Weight : 5.19
