Product Info
- Manufacturer:Eaton
- Sub-Category:Fuse Block
Description
R60030-2CR

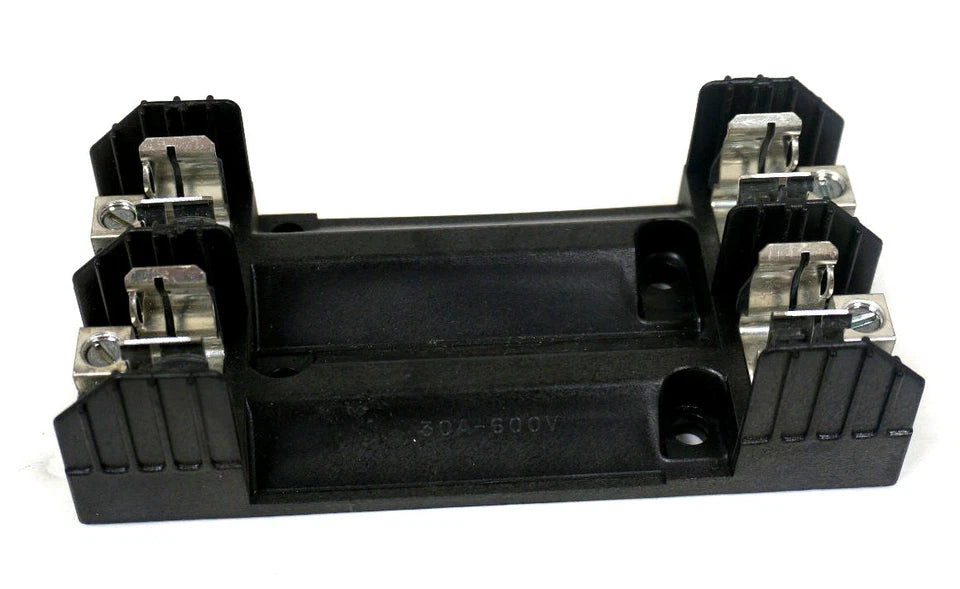

R60030-2CR is an Eaton Bussmann Series Class R modular fuse block rated for 30 amperes at 600 volts with two-pole configuration and box lug terminals. This fuse block is designed for use with UL Class RK1 and RK5 fuses and features spring-reinforced construction for reliable performance in industrial and commercial electrical applications. The thermoplastic base and box lug connection style support wire sizes from 14 to 2 AWG copper and 12 to 2 AWG aluminum.
- Amperage Rating: 0-30A
- Voltage Rating: 600V AC
- Number of Poles: 2-Pole
- Fuse Class: Class R
- Connection Type: Box Lug
- Short Circuit Rating: 200 kA rms symmetrical
- Wire Size: 14-2 AWG copper, 12-2 AWG aluminum
- Certifications: UL Listed, CSA Certified, RoHS Compliant, CE Marked
- Dimensions: 6.2 in L x 3.48 in W x 2.25 in H
- Weight: 0.45 lb
Specifications
- Part Number: R60030-2CR
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Fuse Block
- Type : R
- Voltage : 600
- Amperage : 30
- Mounting : Box
Product Data
- UPC : 051712147712
- Country of Origin : Mexico
- Weight : 1
