QSA1515SPD - Siemens 15 Amp 1-Pole 120/240V Plug-On Surge Protective Device Circuit Breaker 10kA Interrupt Rating

QSA1515SPD

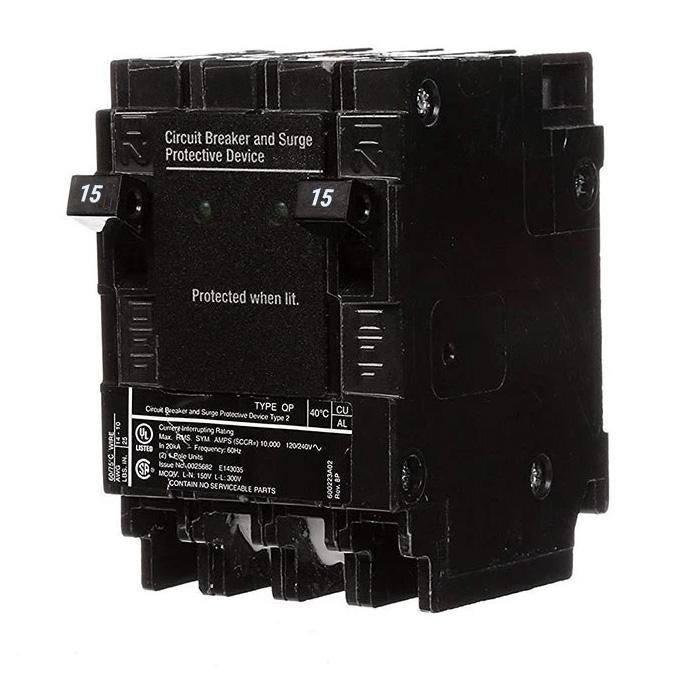

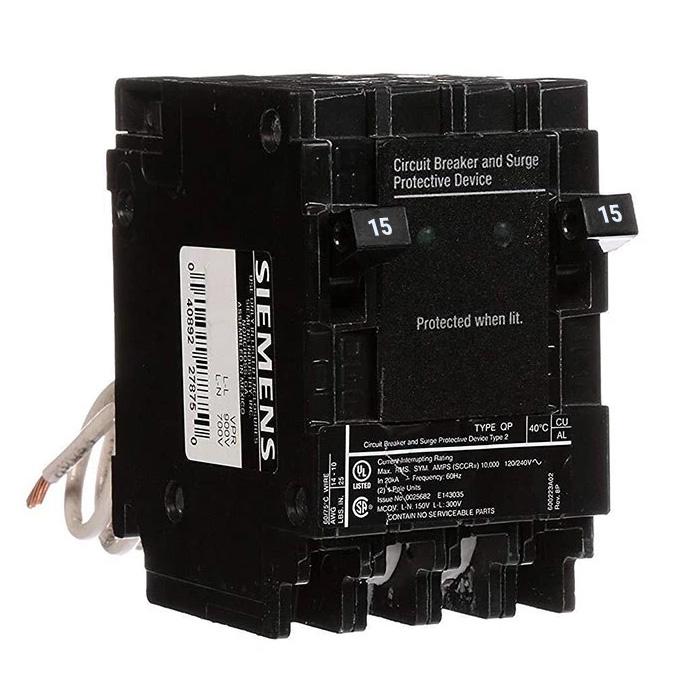

QSA1515SPD is a Siemens 15 Amp 1-Pole Plug-On Surge Protective Device (SPD) Circuit Breaker designed for use in Siemens load centers.This device combines two 1-pole circuit breakers with a surge protective device featuring 150V AC metal oxide varistors (MOVs) and a 40kA impulse rating. It is rated for 120/240 Volt operation with a 10,000 Amp interrupting rating (AIC) and is CSA approved and UL listed. The breaker is compatible with Siemens Type EQ, EQL, SEQ, EQG, PL, and ES series load centers and includes LED indicators for surge protection status.

• Manufacturer: Siemens
• Amperage: 15 Amp
• Voltage Rating: 120/240 Volt AC
• Number of Poles: 1 Pole (two breakers)
• Mounting Type: Plug-On
• Interrupt Rating: 10,000 Amps (10kA AIC)
• Surge Protection: 150V AC MOVs, 40kA impulse rating
• Series Compatibility: EQ, EQL, SEQ, EQG, PL, ES load centers
• Trip Unit: Thermal Magnetic
• Certifications: CSA Approved, UL Listed
• Phase: Single Phase
• Dimensions: 3" x 2" x 3"

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QSA1515SPD
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Q Series
• Type : QSA
• Voltage : 240
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 040892280814
• GTIN : 00040892280814
• Country of Origin : Mexico
• Dimensions : 4.331 x 3.15 x 1.969 inch
• Weight : 0.551
• Certification : UL
