Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
QRH23B200L

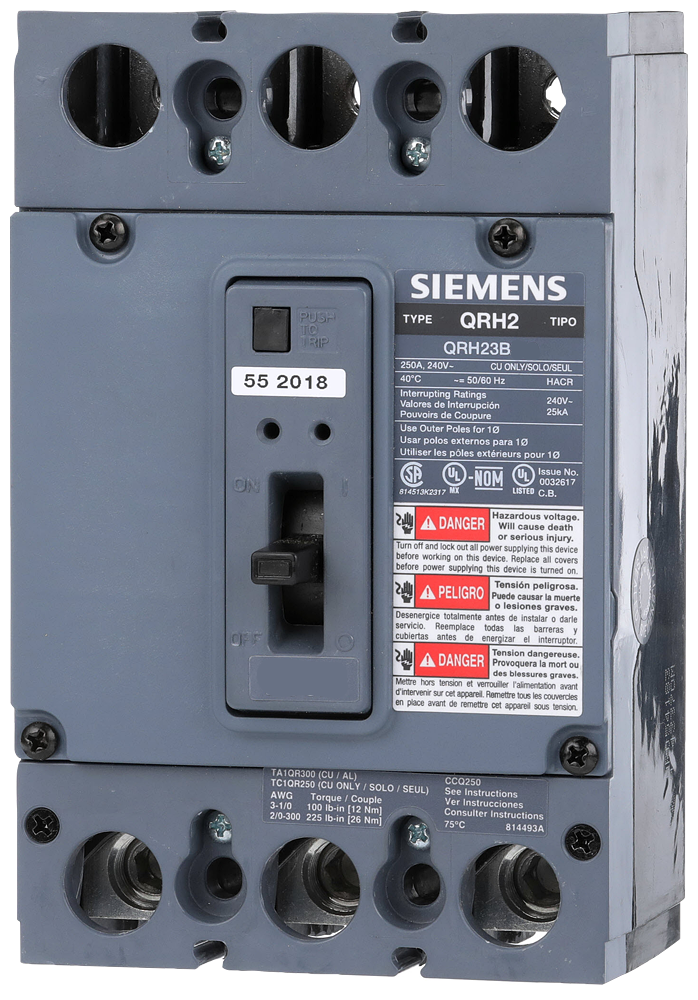

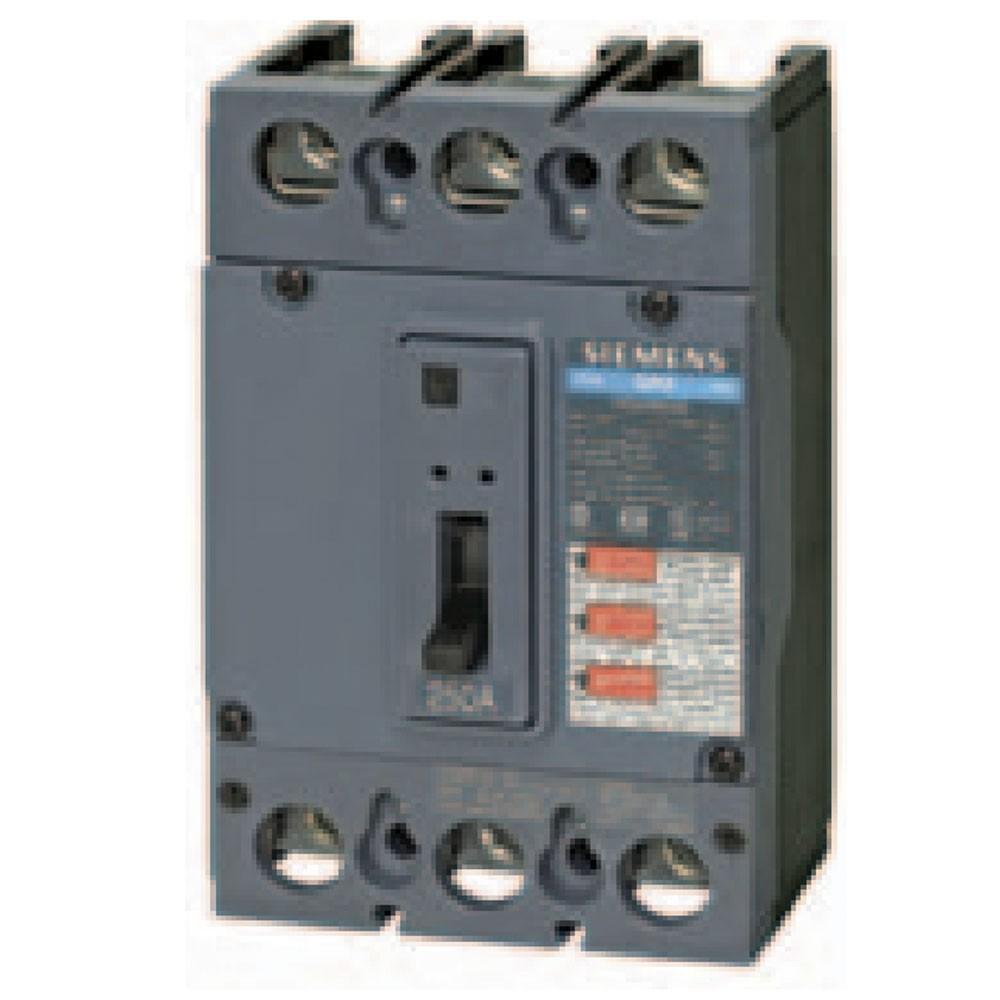

QRH23B200L is a Siemens 3-pole, 200A, 240V molded case circuit breaker designed for high-capacity electrical protection.
This QR Series breaker features a bolt-on mounting style, thermal magnetic trip unit with long-time and instantaneous trip functions, and a non-interchangeable trip. It is rated for 25kA interrupting capacity at 240V and comes with line and load side lug terminals installed. The standard 40°C thermal magnetic trip ensures reliable performance in demanding applications.
-
Key Specifications
- Amperage: 200A
- Voltage: 240V AC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 25kA @ 240V
- Series/Frame: QR Series, QRH Frame
- Trip Unit: Thermal Magnetic, Non-Interchangeable, Long-Time & Instantaneous
- Terminals: Line and Load Side Lugs Included
- Certifications: Not specified in available data
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: QRH23B200L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QR Series
- Type : QRH2
- Voltage : 240
- Amperage : 200
- Phase : 3
- Poles : 3
- AIC rating : 25kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 804766136870
- GTIN : 00804766136870
- Country of Origin : Mexico
- Dimensions : 7.087 x 4.331 x 3.937 inch
- Weight : 4.519
