2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description

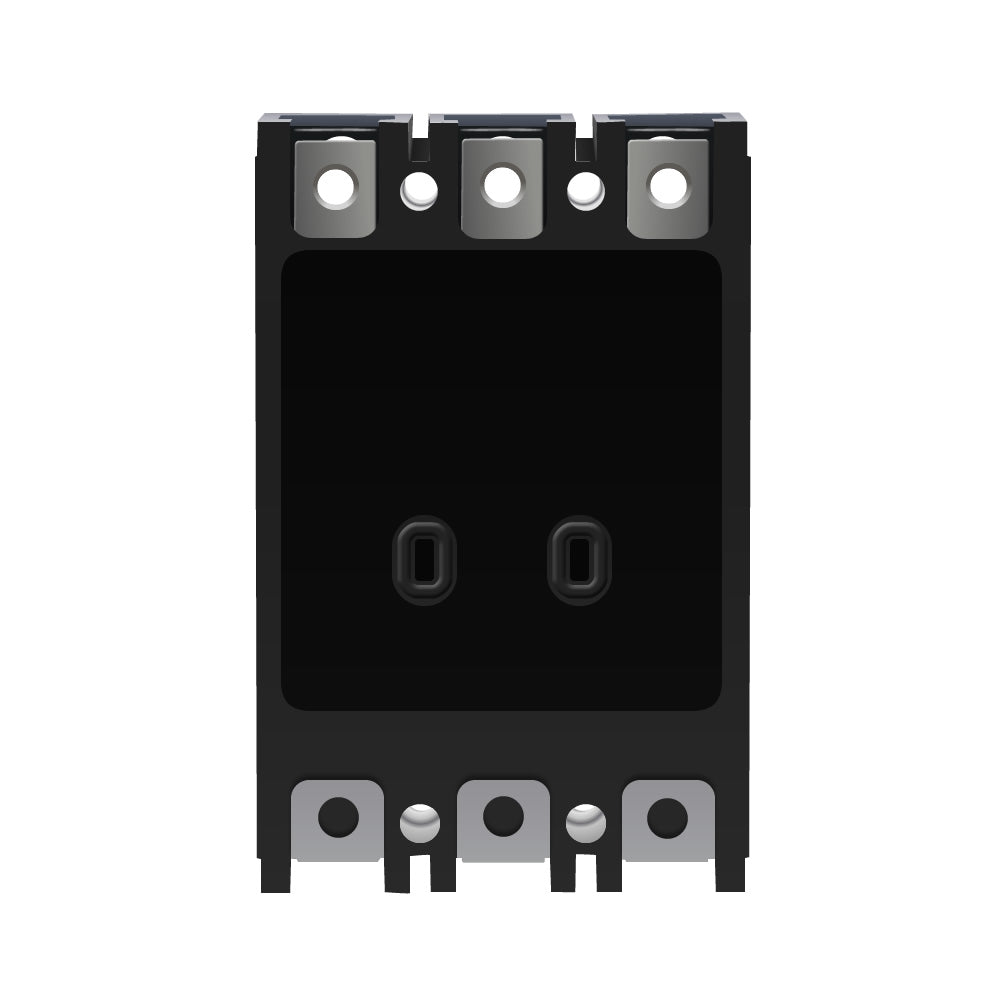

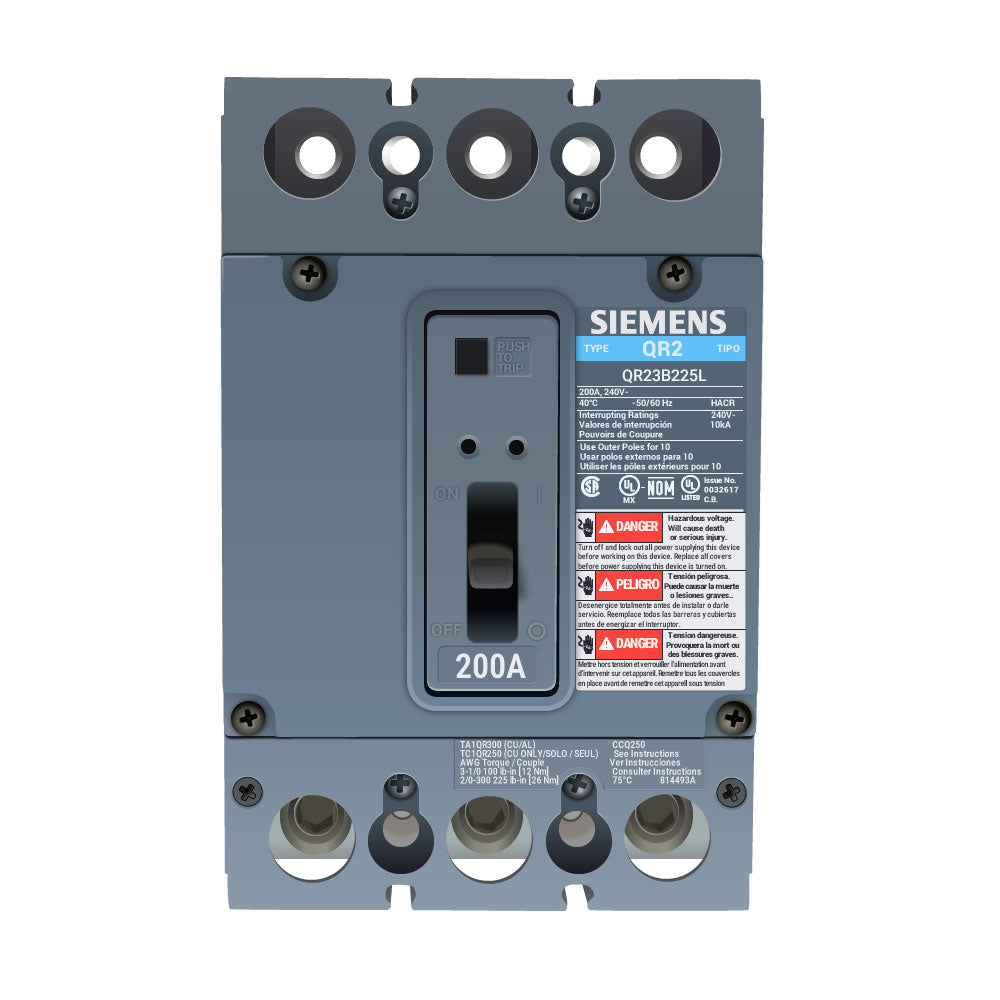

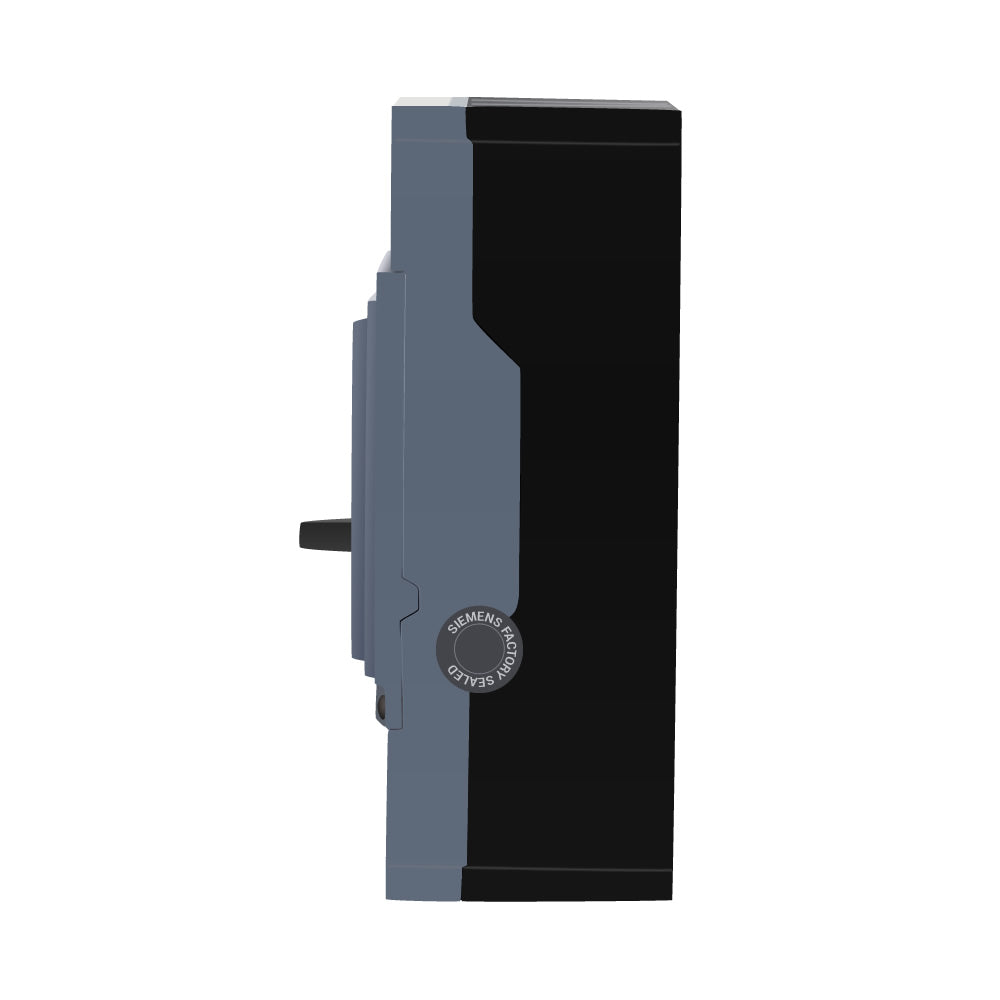

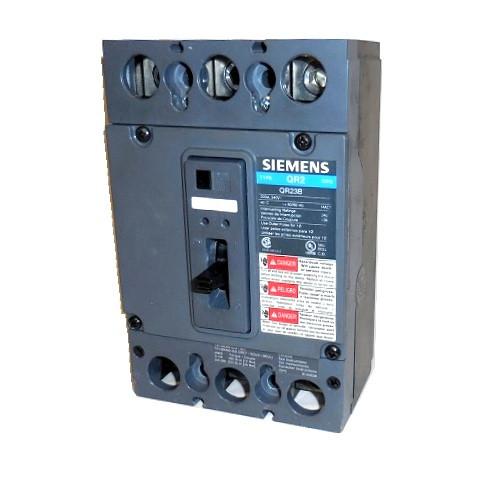

QR23B225L
QR23B225L is a Siemens 225 amp, 240 volt, 3 pole molded case circuit breaker with a 10kA interrupt rating and thermal magnetic trip unit.This Siemens QR series breaker features a bolt-on mounting type, standard 40°C frame, and line/load lugs installed. It provides reliable low voltage circuit protection with a thermal-magnetic trip mechanism designed for industrial and commercial applications.
- Amperage: 225A
- Voltage: 240V
- Poles: 3
- Interrupt Rating: 10kA @ 240V
- Mounting Type: Bolt-On
- Trip Unit: Thermal Magnetic
- Series/Frame: QR Frame, Standard 40°C
- Line/Load Lugs: Installed
- Certifications: UL Listed
Specifications
- Part Number: QR23B225L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QR Series
- Type : QR2
- Voltage : 240
- Amperage : 225
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 804766136740
- GTIN : 00804766136740
- Country of Origin : Mexico
- Dimensions : 7.087 x 4.331 x 3.937 inch
- Weight : 4.519
