Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description

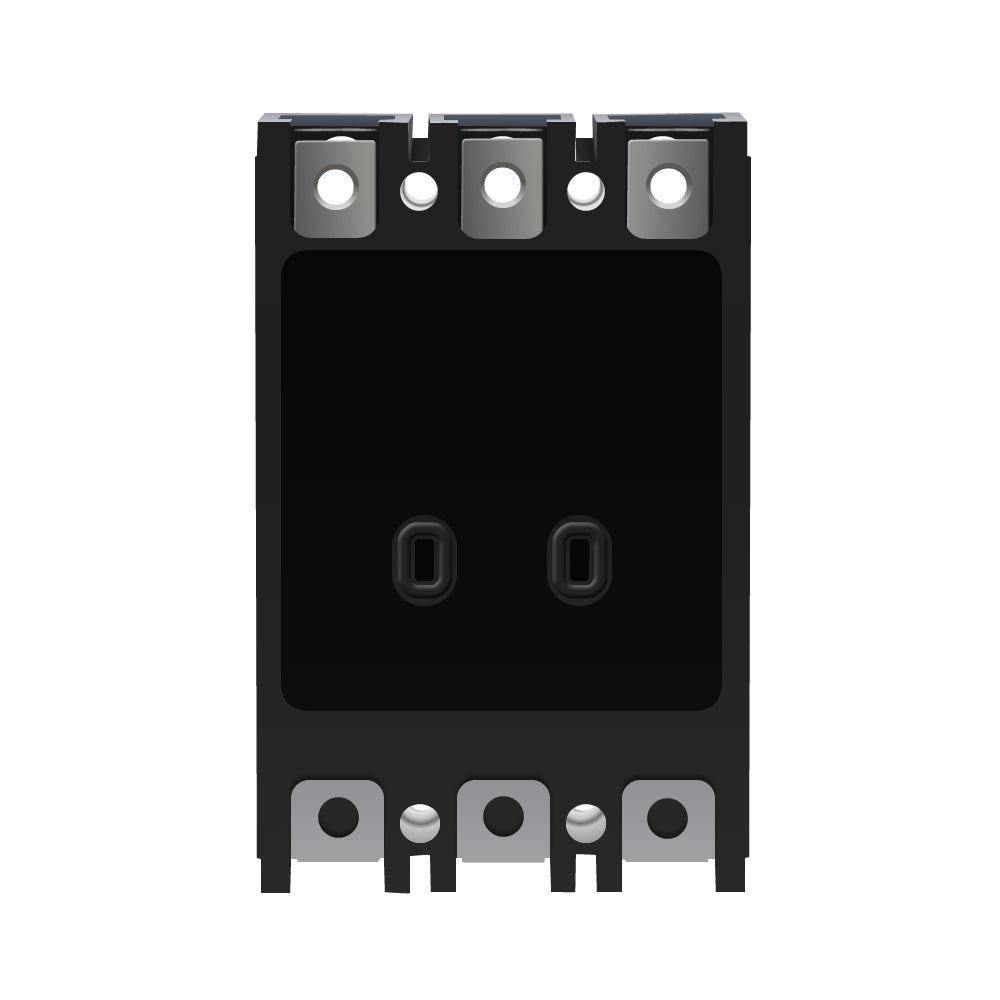

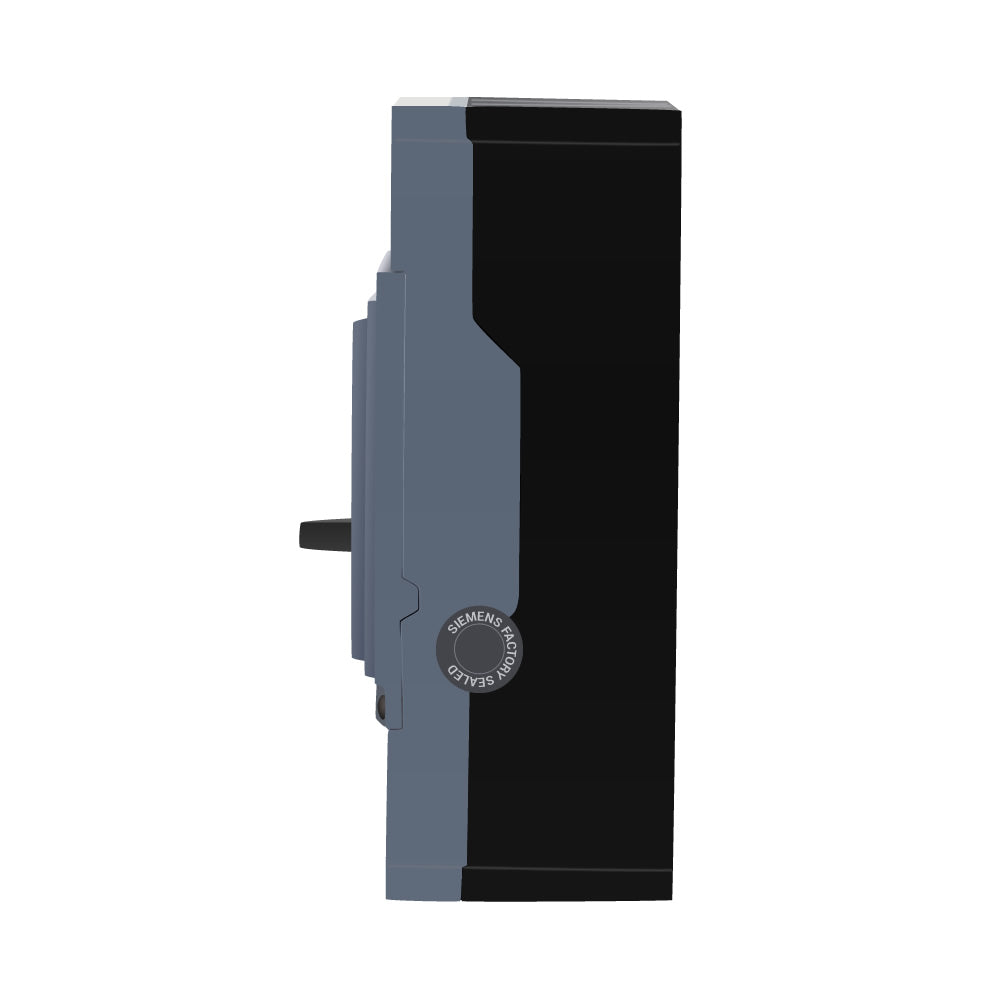

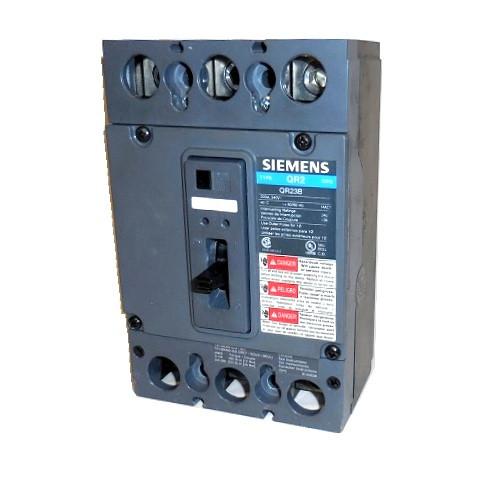

QR23B125L
QR23B125L is a Siemens molded case circuit breaker designed for reliable circuit protection with a 125 amp rating and 3 poles at 240 volts.QR23B125L features a bolt-on mounting type within the QR frame standard 40C series, providing thermal-magnetic trip protection and a 10kA interrupt rating at 240 volts. It includes line/load side lugs (TA1QR300) suitable for wire ranges 6 AWG to 1/0 AWG, ensuring secure and versatile installation.
- Key Specifications
- Amperage: 125 Amp
- Voltage: 240 Volt
- Poles: 3 Pole
- Mounting Type: Bolt-On
- Interrupt Rating: 10kA at 240V
- Series/Frame: QR Frame Standard 40C
- Trip Unit: Thermal-Magnetic
- Line/Load Side Lugs: Installed (TA1QR300)
- Wire Range: 6 AWG to 1/0 AWG
- Certifications: UL Listed
Specifications
- Part Number: QR23B125L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QR Series
- Type : QR2
- Voltage : 240
- Amperage : 125
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 804766136702
- GTIN : 00804766136702
- Country of Origin : Mexico
- Dimensions : 7.087 x 4.331 x 3.937 inch
- Weight : 4.519
